NSN 5935-00-878-1467 M22T10XP4N, M22T10XP4WH2, 8601780012
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-878-1467 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M22T10XP4N, M22T10XP4WH2, 8601780012, 860178-0012, 5935-00-878-1467, 00-878-1467, 5935008781467, 008781467
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-878-1467 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |

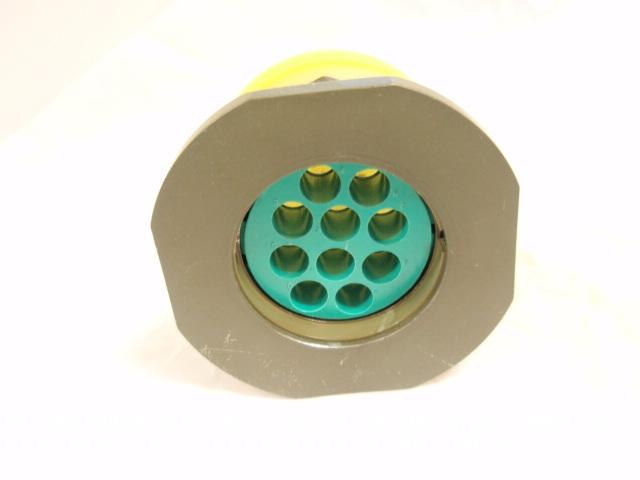

Drawings & Photos | NSN 5935-00-878-1467
Demand History | NSN 5935-00-878-1467
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 860178-0012 | 2022-09-271 | 5 | DIBBS |
| M22T10XP4N | 2022-09-271 | 5 | DIBBS |
| M22T10XP4WH2 | 2022-09-271 | 5 | DIBBS |
| 860178-0012 | 2022-03-60 | 5 | DIBBS |
| M22T10XP4N | 2022-03-60 | 5 | DIBBS |
| M22T10XP4WH2 | 2022-03-60 | 5 | DIBBS |
| M22T10XP4WH2 | 2019-05-122 | 3 | US |
| 860178-0012 | 2019-01-03 | 3 | DIBBS |
| M22T10XP4N | 2019-01-03 | 3 | DIBBS |
| M22T10XP4WH2 | 2019-01-03 | 3 | DIBBS |
| 5935-00-878-1467 | 2014-10-303 | 33 | DIBBS |
| 5935-00-878-1467 | 2010-12-337 | 5 | DIBBS |
| 5935-00-878-1467 | 2010-08-231 | 4 | DIBBS |
| M22T10XP4WH2 | 2009-12-352 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-878-1467
Technical Data | NSN 5935-00-878-1467
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.302 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.585 INCHES MINIMUM AND 0.591 INCHES MAXIMUM |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.5625 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 80.0 |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC PHENOLIC MINERAL FILLED SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 10 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| FURNISHED ITEMS | RING |
Restrictions/Controls & Freight Information | NSN 5935-00-878-1467
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
