NSN 5935-00-868-6192 MA28C11S6W11, MA28C11S6WH26, 8601920007
Product Details | ELECTRICAL PLUG CONNECTOR BODY
5935-00-868-6192 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MA28C11S6W11, MA28C11S6WH26, 8601920007, 860192-0007, 8601927, 860192-7, 5935-00-868-6192, 00-868-6192, 5935008686192, 008686192
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-868-6192 | 61924 ( CONNECTOR BODY, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-868-6192
Cross Reference | NSN 5935-00-868-6192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 860192-0007 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860192-0007 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 860192-7 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860192-7 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| MA28C11S6W11 | 09922 | SOURIAU USA, INC. |
| MA28C11S6WH26 | 09922 | SOURIAU USA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-868-6192
Related Products | NSN 5935-00-868-6192
Technical Data | NSN 5935-00-868-6192
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 2.254 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.051 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING NUT |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 1.594 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 80.0 |
| MATING END QUANTITY | 1 |

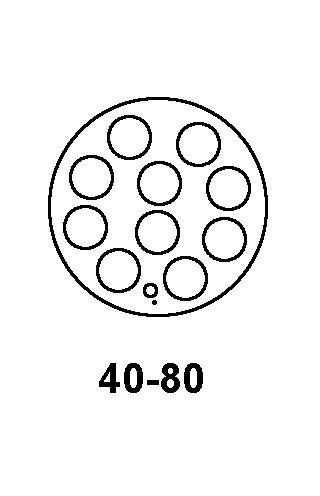

| CONTACT POSITION ARRANGEMENT STYLE | AMAX 40-80 SINGLE MATING END |
