NSN 5935-00-868-6054 ME12MXP2, ME12MXP-2, G3028323

Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY

5935-00-868-6054 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: ME12MXP2, ME12MXP-2, G3028323, G302832-3, LS93351, LS9335-1, 34509051, 3450905-1, 5935-00-868-6054, 00-868-6054, 5935008686054, 008686054

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-868-6054	61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL )

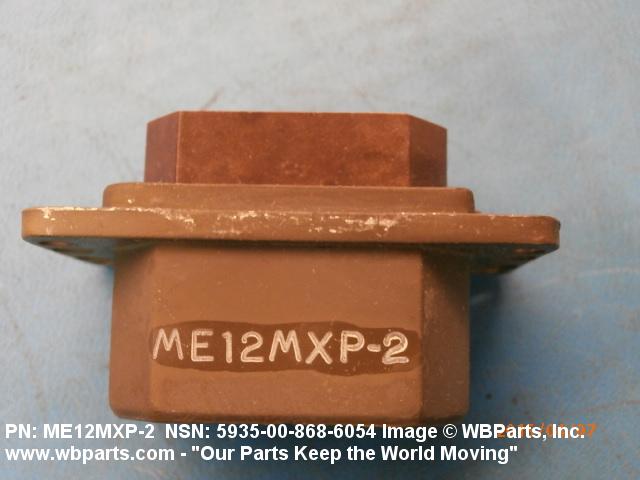

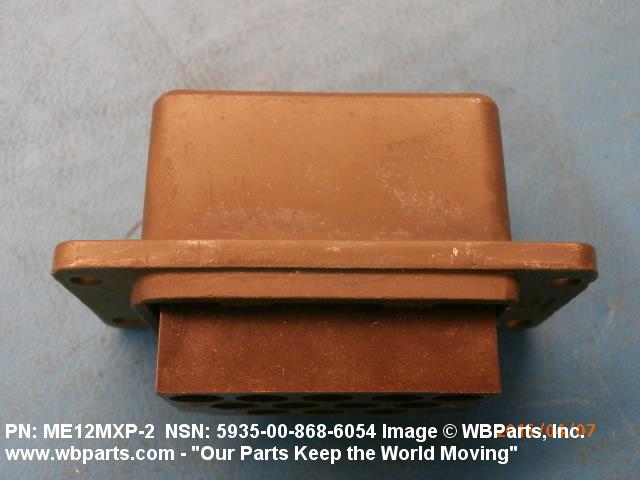

Drawings & Photos | NSN 5935-00-868-6054

Part Number	Request Date	QTY	Origin
5935-00-868-6054	2015-03-63	6	United States
5935-00-868-6054	2014-12-345	6	US
5935-00-868-6054	2014-08-220	6	US

Cross Reference | NSN 5935-00-868-6054

Part Number	Cage Code	Manufacturer
3450905-1	93346	SENSOR AND ANTENNA SYSTEMS, LANSDALE, INC.
G302832-3	01714	LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS
G302832-3	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
LS9335-1	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
ME12MXP-2	52196	CATON CONNECTOR CORPORATION
ME12MXP2	09922	SOURIAU USA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-868-6054

Compare

Related Products | NSN 5935-00-868-6054

5935-00-868-6055, 5935-00-868-6142, 5935-00-868-6146, 5935-00-868-6184, 5935-00-868-6187

Technical Data | NSN 5935-00-868-6054

Characteristic	Specifications
BODY STYLE	18G STRAIGHT SHAPE

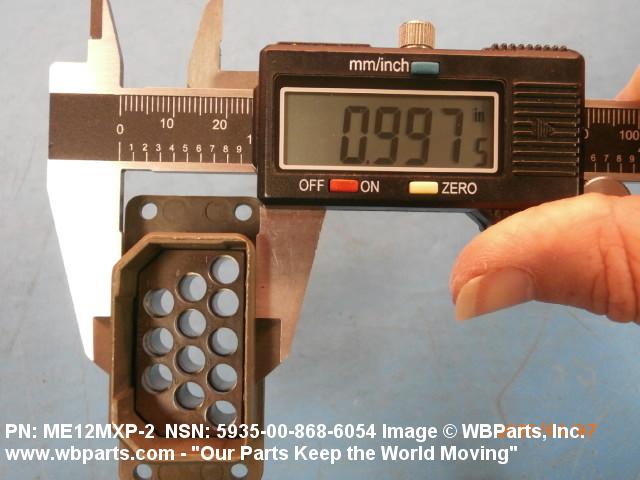

OVERALL LENGTH	0.977 INCHES MINIMUM AND 1.017 INCHES MAXIMUM

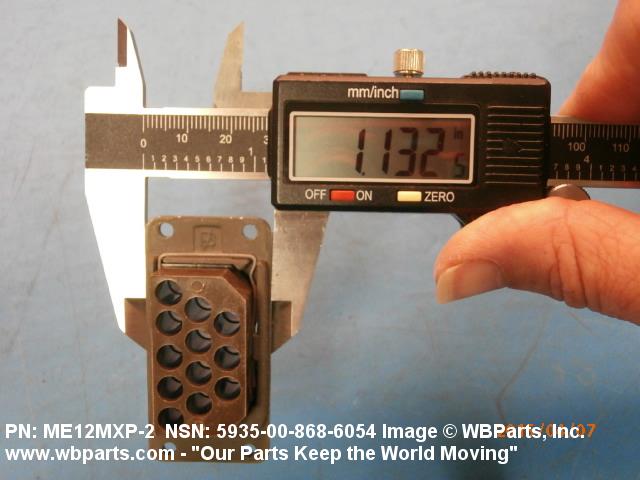

OVERALL HEIGHT	1.110 INCHES MINIMUM AND 1.130 INCHES MAXIMUM

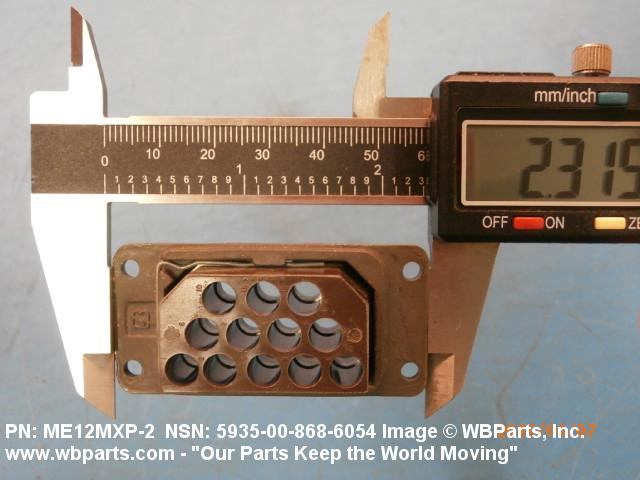

OVERALL WIDTH	2.305 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	0.750 INCHES NOMINAL

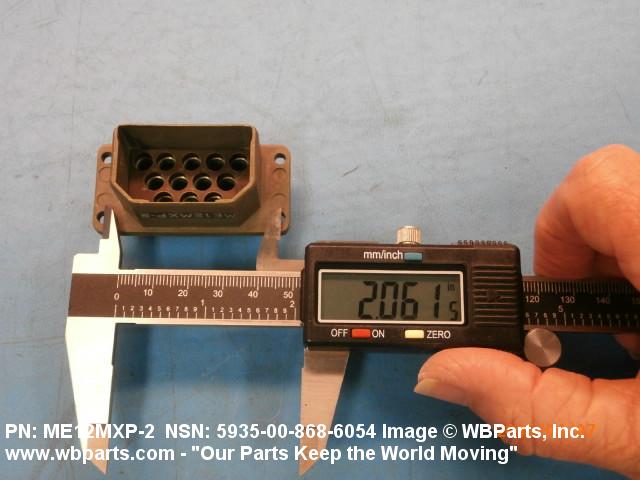

DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	2.062 INCHES NOMINAL

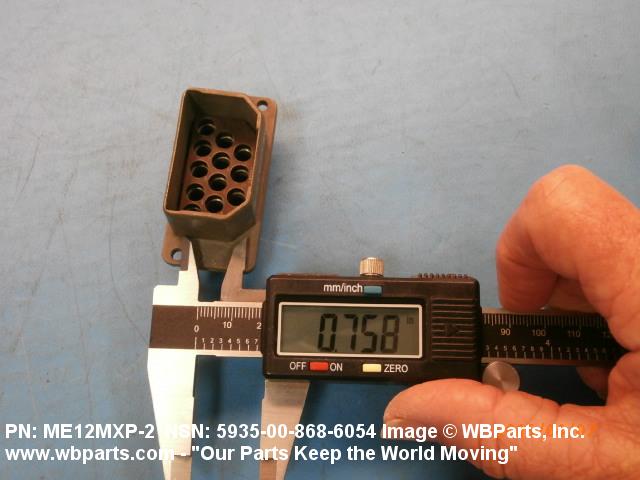

DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.743 INCHES MINIMUM AND 0.755 INCHES MAXIMUM

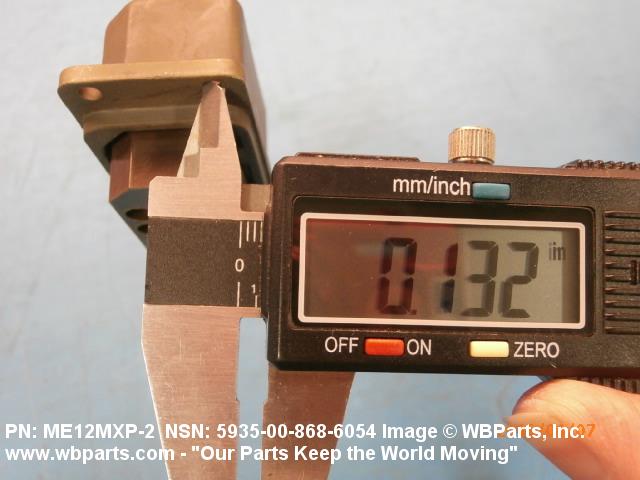

UNTHREADED MOUNTING HOLE DIAMETER	0.125 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	FRICTION
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-591,ALLOYS NO. 13,A13,360 OR A360 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 1 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	MATING END
MATING END QUANTITY	1
INSERT MATERIAL	PLASTIC SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14F,TY MFH OR TY MME OR TY SDI-5 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END

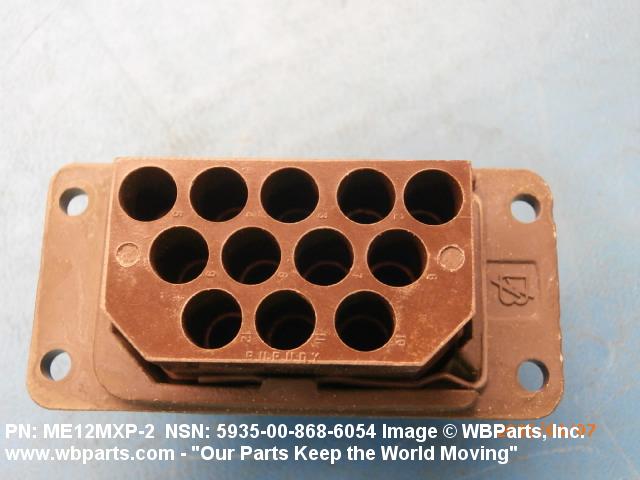

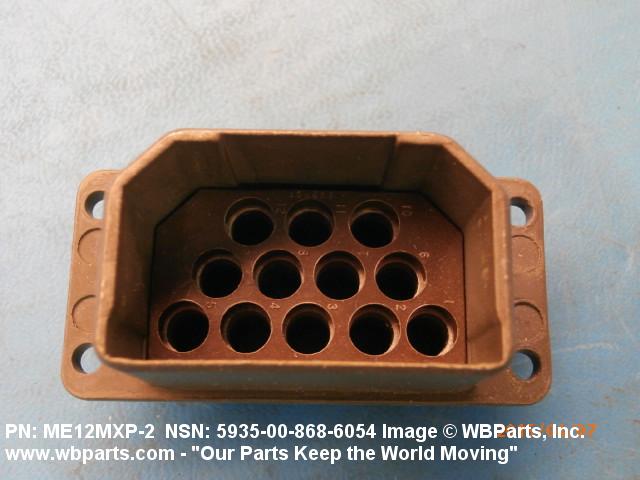

MISSING CONTACT TYPE AND QUANTITY	12 COAXIAL PIN OR 12 COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE

Restrictions/Controls & Freight Information | NSN 5935-00-868-6054

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-868-6054

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
