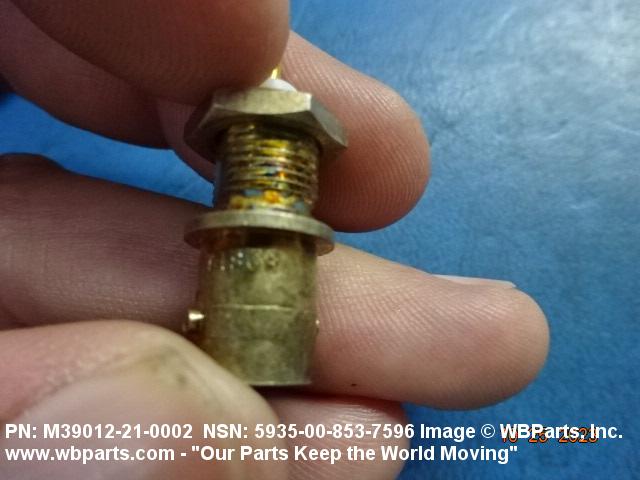

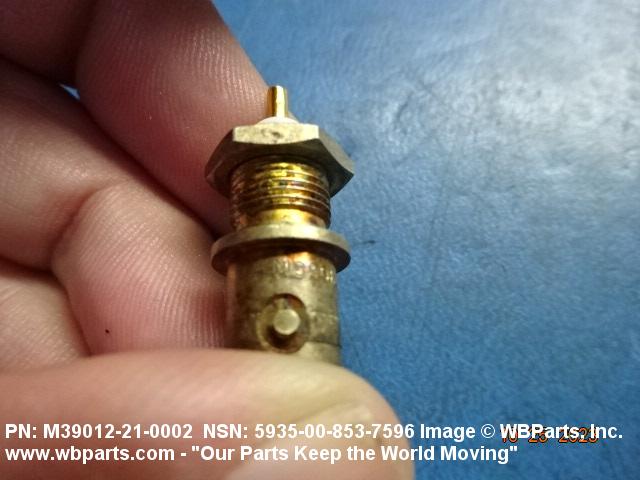

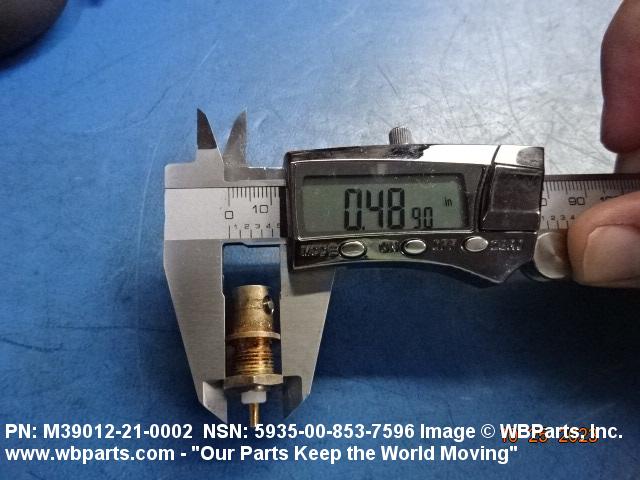

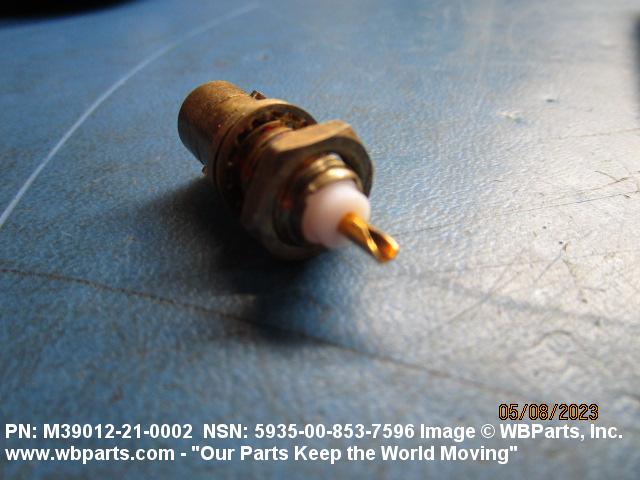

NSN 5935-00-853-7596 MS351791049A, MS35179-1049A, MS351791094
Product Details | ELECTRICAL RECEPTACLE CONNECTOR

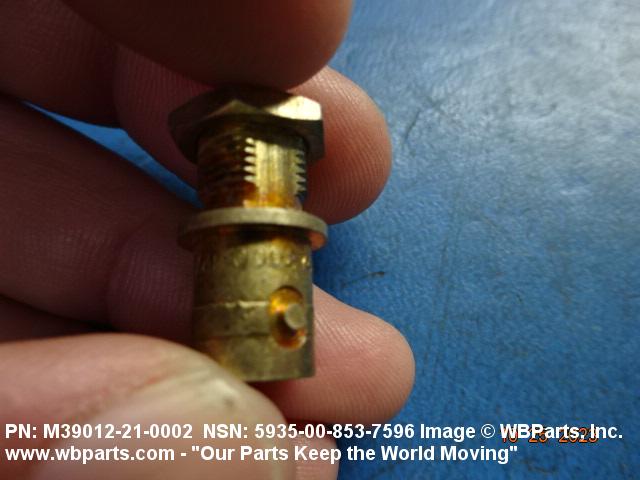

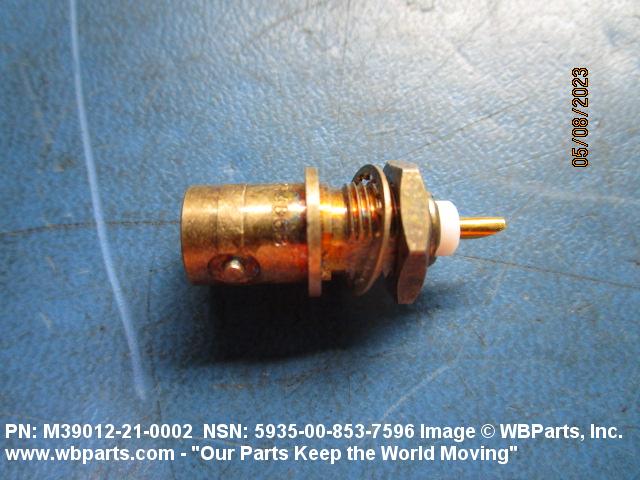

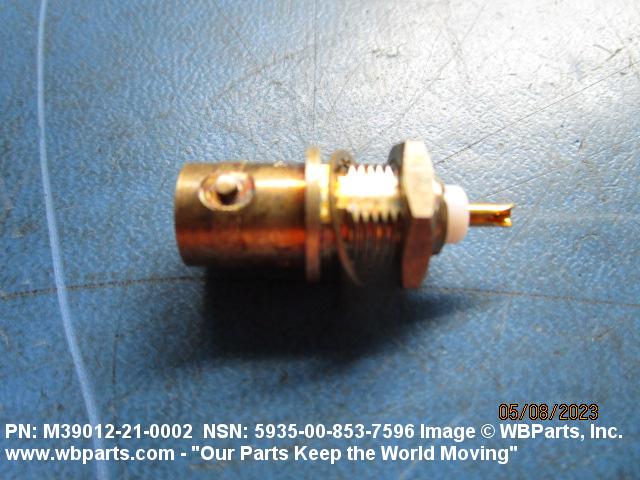

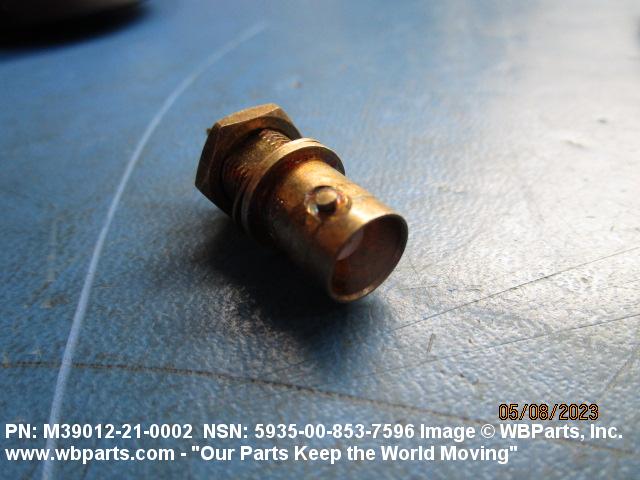

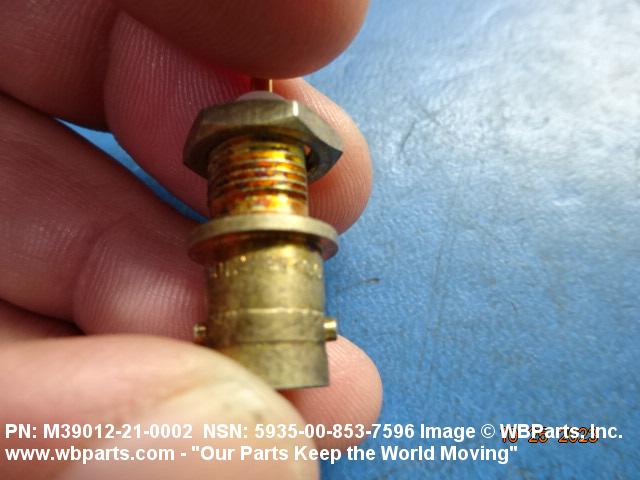

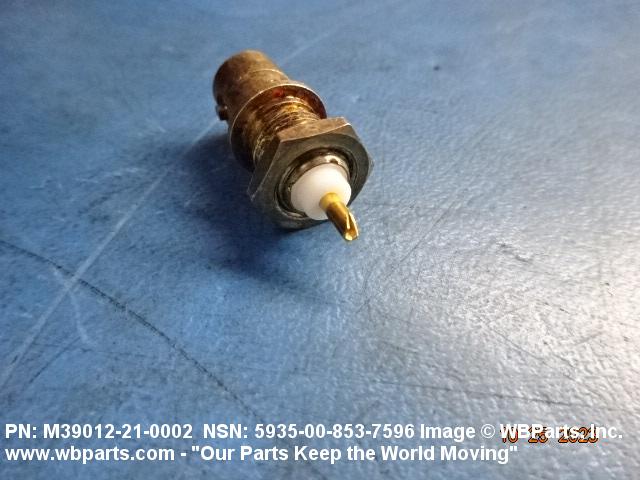

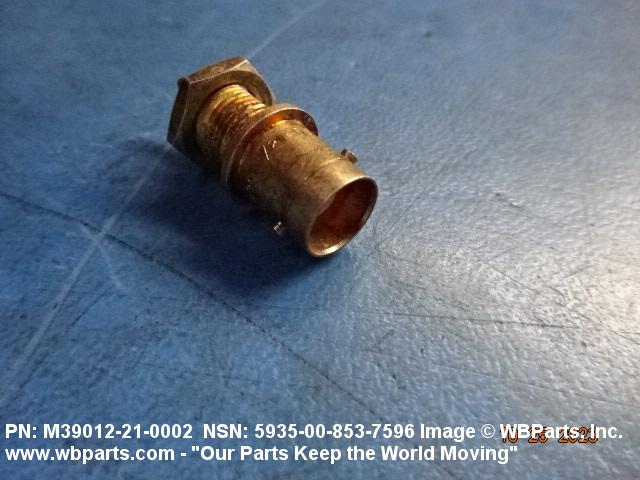

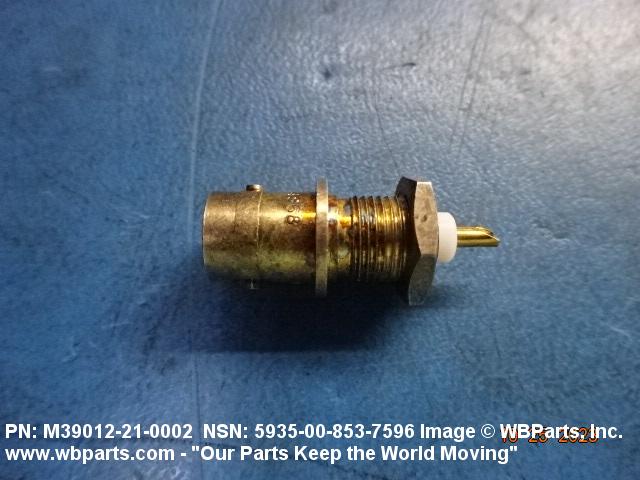

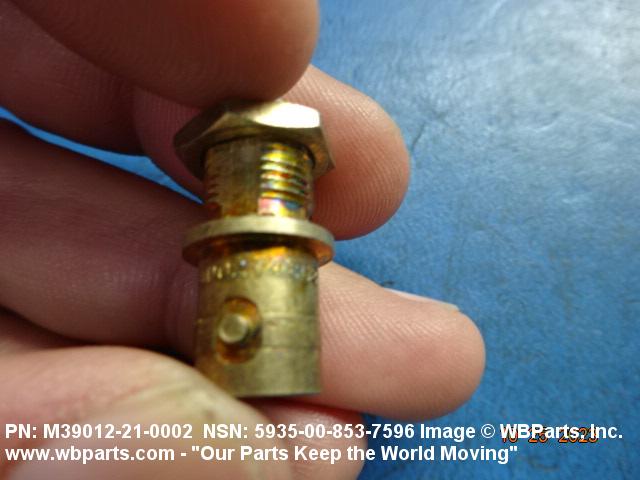

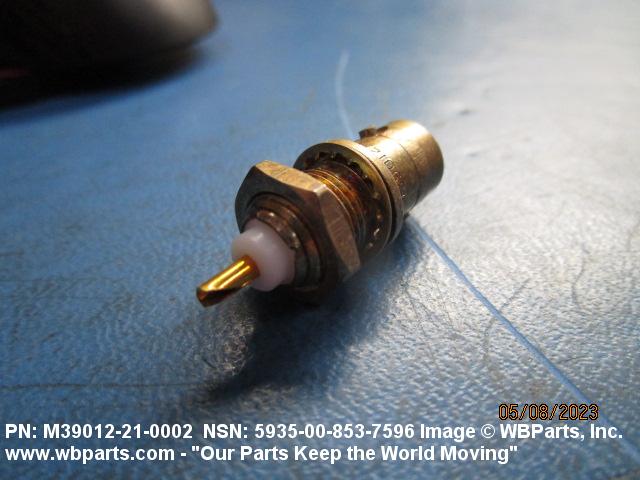

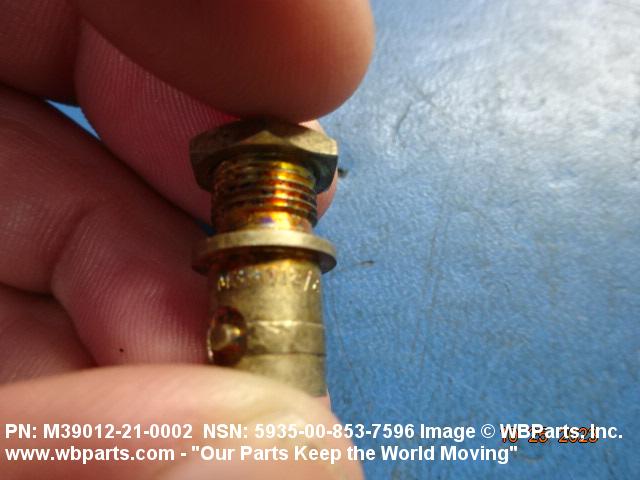

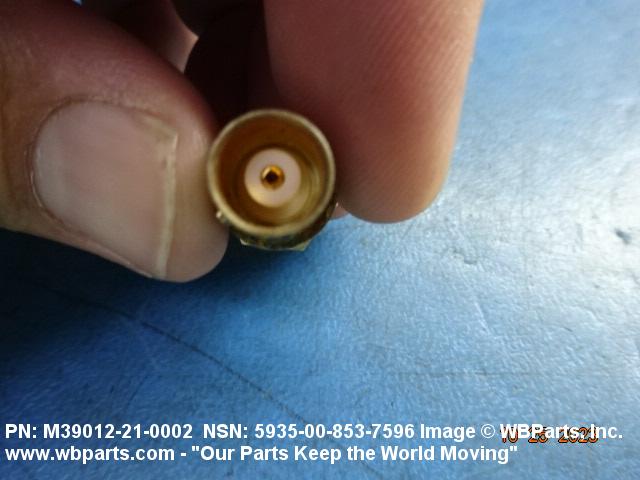

5935-00-853-7596 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS351791049A, MS35179-1049A, MS351791094, MS35179-1094, MS351791094B, MS35179-1094B, MS35179109A, MS35179-109A, MS35179C, MS39012/21-0002, MS39012210002, M39012/21-0002 , M39012/21-002, M39012210002, M3901221002, A1663, AD/UG1094/A/PL75, ADUG1094APL75, C16641, C1664-1, CF017900, CF0179-00, J01001B1222, JDP26, K2000100, K200-0100, KC7406, KC74-06, KC79106, KC79-106 , KC79131, KC-79-131, MIL-C-39012/21, MILC3901221, R294334001, R-294334-001, RG1094U1050, RT5105800, RT51-058-00, UG1094, UG1094/U, UG-1094/UZ, UG1094A/U, UG-1094A/U, UG1094A1U, UG-1094A1U, UG1094AU, UG1094B/U, UG1094BU, UG1094U, UG-1094U, UG1094U1050, UG1094UZ, UG1994U, W41250C6000A2, JA01, 047CTR01P, 047-CTR-01P, 1222, 12500211, 1250-0211, 1267320031, 126732-0031, 16737991021, 16737991-021, 170009, 170-009, 17041002, 1704-1002, 2100010002, 2100-01-0002 , 21130000020, 2113-0000-020, 22BNC50016, 22BNC-50-0-16, 233005, 23-3005, 23443A443, 3122211050, 31-2221-1050, 3122211055, 31-2221-1055, 313376, 31-3376, 3579183000, 357-9183-000, 3579804000, 357-9804-000, 4187972, 418797-2, 437678, 43767-8, 5013253, 5031127, 5031-127, 52170007, 5217-0007, 525, 5600009, 24243-0054, 25223989D, 252-23989D, 28JR1022, 28JR102-2, 294334, 31033790A, 31-03379-0A, 31221, 31-221, 24158-0001, 562270-300, 5L451100244, 5L4511-002-44, 5M.4511.220.30, 5M451122030, 604A000310, 604A0003-10, 62B300032, 62B3000-32, 6676, 667-6, 7012774P001, 78F240, 81902900034, 81-9029-0003-4, 855977, 8755030002, 875503-0002, 5935-00-853-7596, 31-221-1050, 00-853-7596, 5935008537596 , 008537596, 038006027, 242430054, 312211050, 562270300, 241580001
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 28 NOV 1966 | 00-853-7596 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Demand History | NSN 5935-00-853-7596
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5935-00-853-7596 | 2025-03-79 | 3 | United States |
5935-00-853-7596 | 2025-03-69 | 3 | United States |
5935-00-853-7596 | 2024-10-288 | 3 | United States |
5935-00-853-7596 | 2023-10-290 | 3 | United States |
5935-00-853-7596 | 2023-10-278 | 3 | United States |
5935-00-853-7596 | 2023-05-124 | 725 | DIBBS |
5935-00-853-7596 | 2023-04-114 | 3 | United States |
5935-00-853-7596 | 2019-01-31 | 680 | DIBBS |
5935-00-853-7596 | 2018-11-305 | 502 | DIBBS |
5935-00-853-7596 | 2017-10-277 | 260 | DIBBS |
5935-00-853-7596 | 2013-10-296 | 623 | DIBBS |
5935-00-853-7596 | 2013-08-230 | 325 | DIBBS |
5935-00-853-7596 | 2013-03-65 | 205 | DIBBS |
5935-00-853-7596 | 2012-11-335 | 50 | United States |
5935-00-853-7596 | 2012-08-240 | 75 | DIBBS |
5935-00-853-7596 | 2012-08-233 | 91 | DIBBS |
5935-00-853-7596 | 2012-08-233 | 317 | DIBBS |
5935-00-853-7596 | 2012-08-230 | 91 | DIBBS |
5935-00-853-7596 | 2012-06-163 | 317 | DIBBS |
5935-00-853-7596 | 2012-05-125 | 290 | DIBBS |
5935-00-853-7596 | 2012-03-89 | 160 | DIBBS |
5935-00-853-7596 | 2011-03-83 | 442 | DIBBS |
5935-00-853-7596 | 2011-01-06 | 95 | DIBBS |
5935-00-853-7596 | 2010-11-327 | 394 | DIBBS |
5935-00-853-7596 | 2010-11-322 | 517 | DIBBS |
5935-00-853-7596 | 2010-02-36 | 231 | DIBBS |
5935-00-853-7596 | 2010-01-06 | 548 | DIBBS |
5935-00-853-7596 | 2009-09-264 | 233 | DIBBS |
5935-00-853-7596 | 2009-07-212 | 318 | DIBBS |
5935-00-853-7596 | 2009-05-121 | 1147 | DIBBS |
5935-00-853-7596 | 2006-06-158 | 500 | DIBBS |
5935-00-853-7596 | 2006-05-133 | 375 | DIBBS |
Cross Reference | NSN 5935-00-853-7596
Part Number | Cage Code | Manufacturer |
---|---|---|
038006027 | 92110 | SERVO CORPORATION OF AMERICA |
047-CTR-01P | 30103 | TECHNLOGY FOR CMMNCATIONS INTL |
1222 | D2630 | TELEGAERTNER KARL GAERTNER GMBH |
1250-0211 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
126732-0031 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
126732-0031 | 14028 | SYPRIS ELECTRONICS, LLC |
16737991-021 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
170-009 | 53073 | BOUNDLESS TECHNOLOGIES INC |
1704-1002 | 31160 | DATUM INC BANCOMM-TIMING DIV |
2100-01-0002 | 23338 | WAVETEK U S INC DIV OF WAVETEK CORP |
2113-0000-020 | 51190 | AEROFLEX WICHITA, INC. DBA IFR SYSTEMS |
22BNC-50-0-16 | S3708 | HUBER AND SUHNER LTD |
23-3005 | 21793 | ASTRONICS TEST SYSTEMS INC. |
23443A443 | 51190 | AEROFLEX WICHITA, INC. DBA IFR SYSTEMS |
24158-0001 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
24243-0054 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
252-23989D | U2772 | RS COMPONENTS |
28JR102-2 | 24931 | SPECIALTY CONNECTOR CO INC |
294334 | 88869 | EATON CORP ELECTRONIC INSTRUMENTATION DIV |
31-03379-0A | 50423 | BALLANTINE LABORATORIES INC |
31-221 | 00779 | TYCO ELECTRONICS CORPORATION |
31-221 | 03554 | AMPHENOL CANADA CORP |
31-221 | 74868 | AMPHENOL CORPORATION |
31-221 | 84023 | ALMO ELECTRONICS INC |
31-221 | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
31-221-1050 | 74868 | AMPHENOL CORPORATION |
31-2221-1050 | 74868 | AMPHENOL CORPORATION |
31-2221-1055 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
31-2221-1055 | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
31-3376 | 74868 | AMPHENOL CORPORATION |
357-9183-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
357-9804-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
418797-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
43767-8 | 06442 | CANBERRA INDUSTRIES, INC. |
5013253 | 53711 | NAVAL SEA SYSTEMS COMMAND |
5031-127 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
5217-0007 | 55788 | CATEL TELECOMMUNICATIONS INC SUB OF DATA-DESIGN LABORATORIES |
525 | 31985 | GIFFT T H CO INC |
5600009 | 57414 | INSTRUMENTATION TECHNOLOGY SYSTEMS DBA ITS |
562270-300 | 55714 | ADVANCED ELECTRONICS DESIGN INC |
5935008537596 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
5L4511-002-44 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
5M.4511.220.30 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
604A0003-10 | 25583 | L-3 COMMUNICATIONS AVIONICS SYSTEMS, INC |
62B3000-32 | 94375 | AUTOMATIC CONNECTOR |
667-6 | 54420 | DAGE-MTI INC |
667-6 | 60674 | MICROWAVE DEVICES INC |
667-6 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
7012774P001 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
78F240 | C7080 | BUERKLIN OHG |
81-9029-0003-4 | 12578 | MINNESOTA MINING AND MFG CO MINCOM DIV |
855977 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
875503-0002 | 65597 | THALES DEFENSE & SECURITY, INC. |
A1663 | 81535 | AERONAUTICAL COMMUNICATIONS EQUIPMENT INC |
AD/UG1094/A/PL75 | 14949 | TROMPETER ELECTRONICS, INC. |
C1664-1 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
CF0179-00 | 32760 | THOMSON INC DIV GRASS VALLEY |
J01001B1222 | D2630 | TELEGAERTNER KARL GAERTNER GMBH |
JA01 | 37338 | NAUTEL LIMITED |
JDP26 | 37338 | NAUTEL LIMITED |
JDP26 | 57655 | NAUTEL MAINE INC. |
K200-0100 | 51504 | RAVEN ELECTRONICS CORPORATION |
KC-79-131 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
KC74+06 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
KC74-06 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
KC79-106 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
M39012/21-0002 | 00795 | DELTA ELECTRONICS MFG CORP |
M39012/21-0002 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M39012/21-0002 | 94375 | AUTOMATIC CONNECTOR |
M39012/21-002 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MIL-C-39012/21 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MS35179-1049A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35179-1094 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35179-1094B | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35179-109A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS35179C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
MS39012/21-0002 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
R-294334-001 | 88869 | EATON CORP ELECTRONIC INSTRUMENTATION DIV |
RG1094U1050 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
RT51-058-00 | D2528 | ROSENBERGER HF-TECHNIK GMBH & CO. |
UG&1094-U | 74868 | AMPHENOL CORPORATION |
UG-1094/UZ | 13511 | AMPHENOL CADRE DIV BUNKER RAMO CORP |
UG-1094A/U | 80050 | BOUSTEAD ELECTRIC AND MFG CO |
UG-1094A/U | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
UG-1094A1U | 74868 | AMPHENOL CORPORATION |
UG-1094U | 08718 | ITT CANNON ELECTRIC PHOENIX DIV |
UG1094 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
UG1094 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
UG1094/U | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
UG1094A/U | 71468 | ITT CORPORATION DBA I T T CANNON |
UG1094AU | 08718 | ITT CANNON ELECTRIC PHOENIX DIV |
UG1094AU | 74868 | AMPHENOL CORPORATION |
UG1094AU | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
UG1094AU | 94375 | AUTOMATIC CONNECTOR |
UG1094B/U | D8311 | AMPHENOL-TUCHEL ELECTRONICS GMBH |
UG1094BU | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
UG1094U | 13511 | AMPHENOL CADRE DIV BUNKER RAMO CORP |
UG1094U | 14814 | ELDORADO ELECTRODATA CORP |
UG1094U | 51128 | WILLIAM S GUTTENBERG DBA WILCO ELECTRIC COMPANY |
UG1094U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
UG1094U | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
UG1094U | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
UG1094U | 94375 | AUTOMATIC CONNECTOR |
UG1094U1050 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
UG1994U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
W41250C6000A2 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-00-853-7596
Technical Data | NSN 5935-00-853-7596
Characteristic | Specifications |
---|---|
BODY STYLE | 11L STRAIGHT SHAPE, EXTERNAL COUPLING |

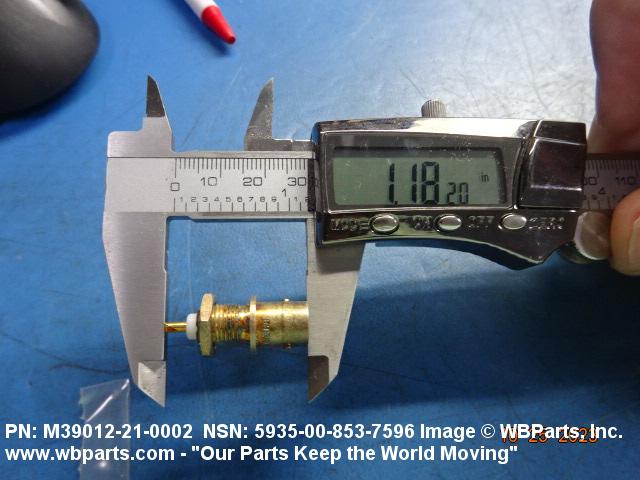

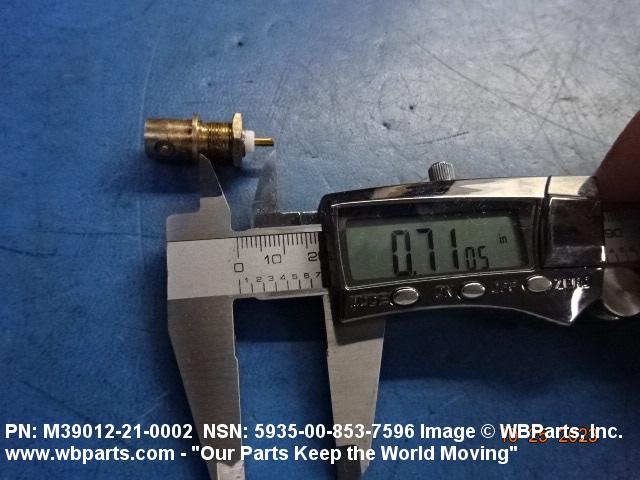

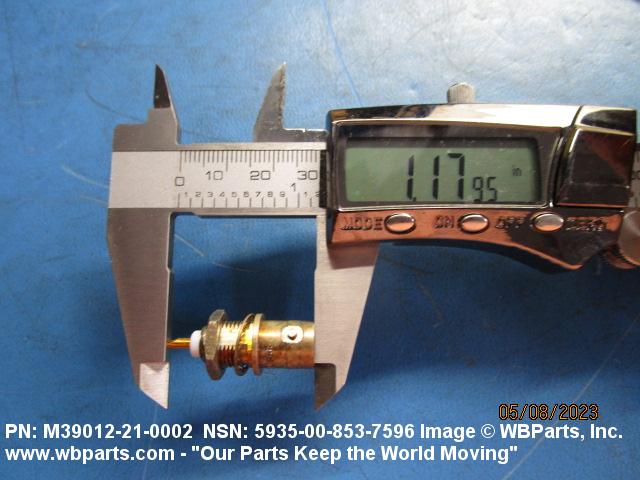

OVERALL LENGTH | 1.312 INCHES MAXIMUM |

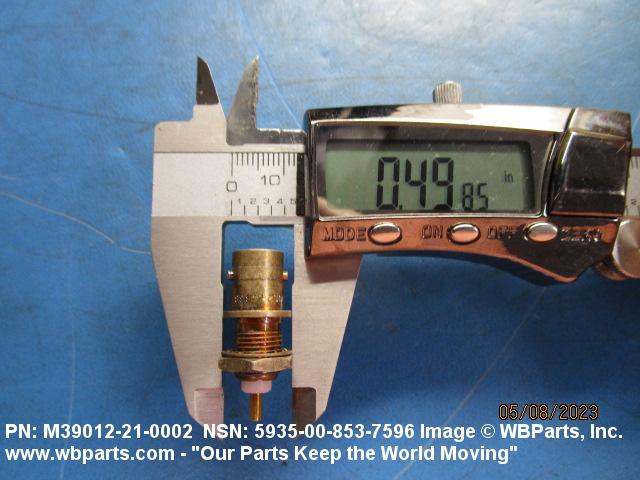

OVERALL DIAMETER | 0.585 INCHES MAXIMUM |
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.654 INCHES MINIMUM AND 0.778 INCHES MAXIMUM |
MOUNTING FACILITY THICKNESS | 0.045 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
BUSHING ACCOMMODATION HOLE SHAPE | ROUND W/FLAT |
CONNECTOR LOCKING METHOD | BAYONET PIN |
THREADED DEVICE TYPE | MOUNTING BUSHING |
THREAD SERIES DESIGNATOR | UNEF |
NOMINAL THREAD SIZE | 0.375 INCHES |
THREAD CLASS | 2A |
THREAD QUANTITY PER INCH | 32 |
THREAD DIRECTION | RIGHT-HAND |
SHELL TYPE | SOLID |
SHELL MATERIAL | COPPER ALLOY |
MATING END QUANTITY | 1 |
CONTACT POSITION ARRANGEMENT STYLE | ABBJ BNC SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT |
TEST DATA DOCUMENT | 81349-MIL-C-39012 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-C-39012/21 GOVERNMENT SPECIFICATION |
III PRECIOUS MATERIAL | GOLD |
III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39012/21 |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39012/21-0002 |
Restrictions/Controls & Freight Information | NSN 5935-00-853-7596
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | G | Item contains gold |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-853-7596
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | B | Consumable Repair Parts |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
A EA : Each |
