NSN 5935-00-847-8641 SK137, 1.780289, 133E803124
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-847-8641 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SK137, 1.780289, 133E803124, 133E803-124, 1780289, 5935-00-847-8641, 00-847-8641, 5935008478641, 008478641
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-847-8641 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-847-8641
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-847-8641
Technical Data | NSN 5935-00-847-8641
| Characteristic | Specifications |
|---|---|

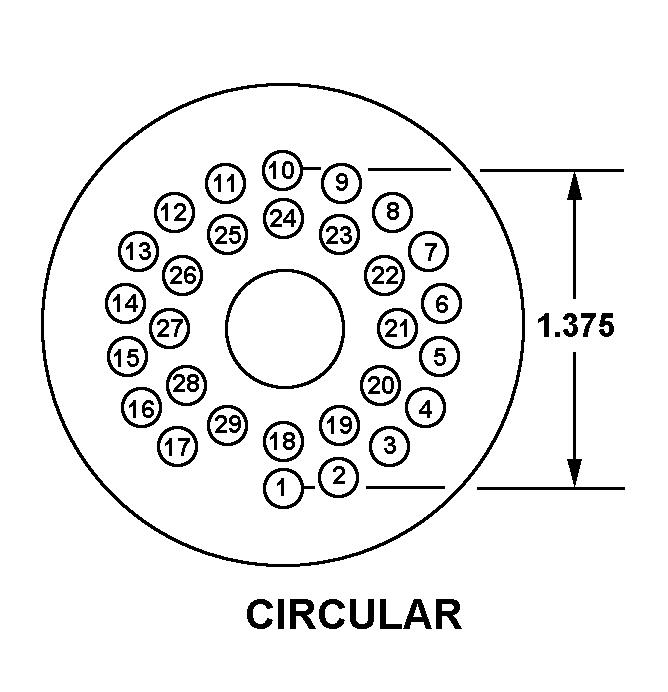

| CONTACT POSITION ARRANGEMENT STYLE | 2900A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 17 |
| MISSING CONTACT DESIGNATION | 18TH CONTACT POSITION AND 19TH CONTACT POSITION AND 20TH CONTACT POSITION AND 21ST CONTACT POSITION AND 22ND CONTACT POSITION AND 23RD CONTACT POSITION AND 24TH CONTACT POSITION AND 25TH CONTACT POSITION AND 26TH CONTACT POSITION AND 27TH CONTACT POSITION AND 28TH CONTACT POSITION AND 29TH CONTACT POSITION |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER |
| CONTACT SURFACE TREATMENT | SILVER |
| OVERALL HEIGHT | 0.355 INCHES NOMINAL |
| OVERALL DIAMETER | 2.060 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 17 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III FABRICATION METHOD | MOLDED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.017 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
