Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-847-7814 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: RTC300L2, 352250017472, 5935-00-847-7814, 00-847-7814, 5935008477814, 008477814
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-847-7814 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

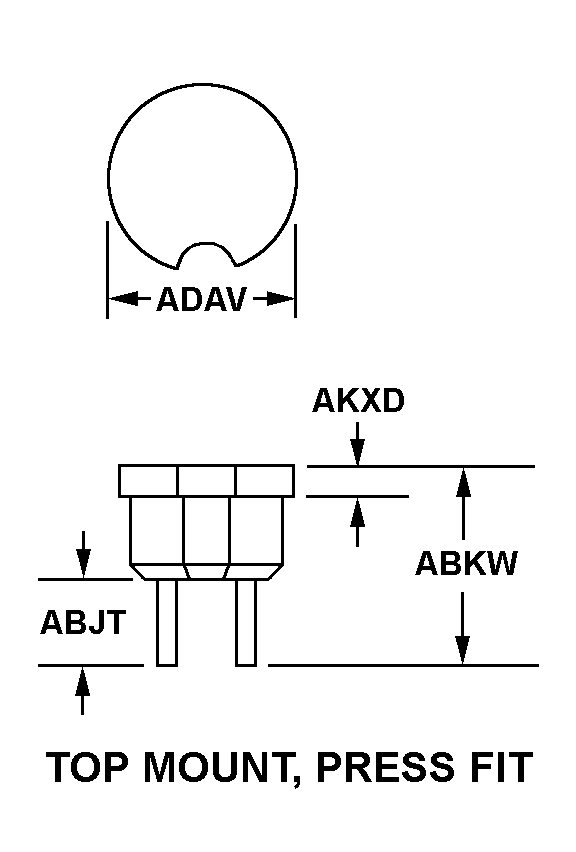

Drawings & Photos | NSN 5935-00-847-7814
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-847-7814
Technical Data | NSN 5935-00-847-7814
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 301A TRIANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| MISSING CONTACT DESIGNATION | ALL CONTACT POSITIONS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | 36B TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.070 INCHES NOMINAL |
| OVERALL HEIGHT | 0.225 INCHES NOMINAL |
| OVERALL DIAMETER | 0.325 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.040 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | 1D ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.275 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT POSITION |
