Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-841-4708 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 10073-7045, 10368324, 1215100040, 44P24090, 9PCB1, 9PC-B1, 5935-00-841-4708, 00-841-4708, 5935008414708, 100737045, 008414708
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-841-4708 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-841-4708
Demand History | NSN 5935-00-841-4708
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10073-7045 | 2022-10-284 | 500 | DIBBS |
| 1036324 | 2022-10-284 | 500 | DIBBS |
| 10073-7045 | 2022-09-271 | 500 | DIBBS |
| 1036324 | 2022-09-271 | 500 | DIBBS |
| 10073-7045 | 2022-06-179 | 500 | DIBBS |
| 10073-7045 | 2022-04-95 | 1 | DIBBS |
Cross Reference | NSN 5935-00-841-4708
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-841-4708
Related Products | NSN 5935-00-841-4708
Technical Data | NSN 5935-00-841-4708
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 904A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 9 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BRASS |
| BODY STYLE | 26B PCB MOUNT |
| OVERALL HEIGHT | 0.850 INCHES NOMINAL |
| OVERALL DIAMETER | 0.844 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.616 INCHES NOMINAL |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 9 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

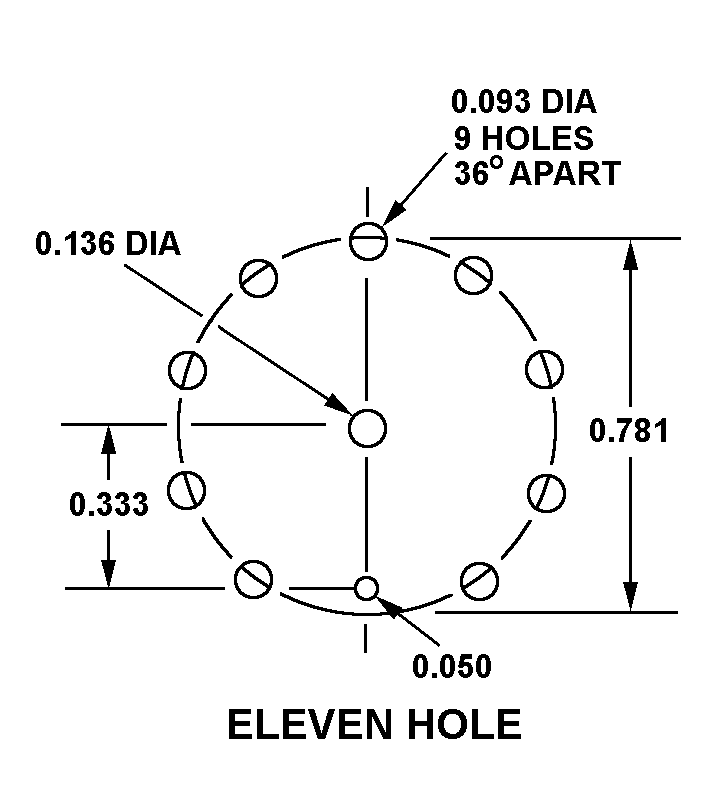

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1101E ELEVEN HOLE |
