NSN 5935-00-836-1619 1313710022, 131-37-10-022, 220-1301-00
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-836-1619 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 1313710022, 131-37-10-022, 220-1301-00, 2201301000, 220-1301-000, 46A18998, 5935-00-836-1619, 00-836-1619, 5935008361619, 008361619, 220130100
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1962 | 00-836-1619 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-00-836-1619
Technical Data | NSN 5935-00-836-1619
Characteristic | Specifications |
---|---|

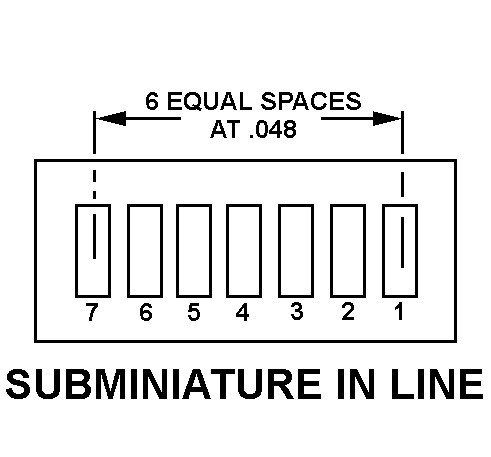

CONTACT POSITION ARRANGEMENT STYLE | 707A SUBMINATURE IN LINE |
ACCOMMODATED CONTACT QUANTITY | 7 |
CONTACT MATERIAL | COPPER ALLOY |
CONTACT SURFACE TREATMENT | GOLD |
TERMINAL TYPE AND QUANTITY | 7 CLIP |
MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
MOUNTING METHOD | SADDLE |
MOUNTING HOLE STYLE | 22D RECTANGLAR |
BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.450 INCHES NOMINAL |
BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.281 INCHES NOMINAL |
III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
III FABRICATION METHOD | MOLDED |
III PRECIOUS MATERIAL | GOLD |
III PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
MANUFACTURERS CODE | 71785 |
DESIGN CONTROL REFERENCE | 46A18998 |
