NSN 5935-00-819-0755 9138875, 9952C, 00-819-0755
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-819-0755 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 9138875, 9952C, 5935-00-819-0755, 00-819-0755, 5935008190755, 008190755
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-819-0755 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-819-0755
Cross Reference | NSN 5935-00-819-0755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 143-42-11-011 | 71785 | CINCH CONNECTORS, INC. |
| 143-42-11-020 | 71785 | CINCH CONNECTORS, INC. |
| 19350-315 | 28569 | HICKOK INCORPORATED |
| 3149089 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 350001 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 3M14 | 71785 | CINCH CONNECTORS, INC. |
| 449623-3 | 02734 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 449623-3 | 21921 | RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 449623-3 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 59352376444 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 9156811 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 9450W8593 | 71785 | CINCH CONNECTORS, INC. |
| 9453 | 71785 | CINCH CONNECTORS, INC. |
| 9453-14 | 71785 | CINCH CONNECTORS, INC. |
| 9952C | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| CP35-1-20-2-2 | 25500 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| CP35-1-20-2-2 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| ES375-4 | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
| M426865-501 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| M426865-501PT9952 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| P62408001 | 71313 | VIKING TECHNOLOGIES, LTD. |
| T9453-14 | 71785 | CINCH CONNECTORS, INC. |
| T9463-14 | 71785 | CINCH CONNECTORS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-819-0755
Technical Data | NSN 5935-00-819-0755
| Characteristic | Specifications |
|---|---|

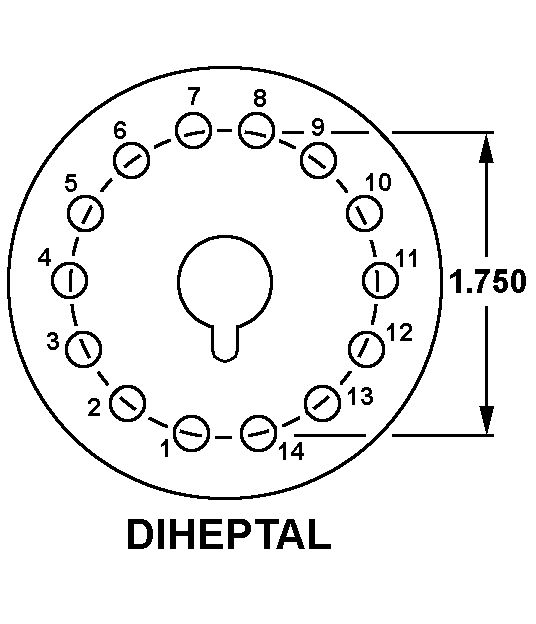

| CONTACT POSITION ARRANGEMENT STYLE | 1413A DIHEPTAL |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| MISSING CONTACT DESIGNATION | 6TH CONTACT POSITION AND 13TH CONTACT POSTION |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | SILVER |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | TERMINAL TYPE TAB,SOLDER LUG |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-819-0755
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
