NSN 5935-00-791-0943 HSK109, SK109, 7375025
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-791-0943 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: HSK109, SK109, 7375025, 73-75-025, 12978128, 1297-8128, 5935-00-791-0943, 00-791-0943, 5935007910943, 007910943
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-791-0943 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-791-0943
Demand History | NSN 5935-00-791-0943
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1297-8128 | 2019-04-105 | 1 | DIBBS |
| 73-75-025 | 2019-04-105 | 1 | DIBBS |
| SK109 | 2019-04-105 | 1 | DIBBS |
| 1297-8128 | 2019-04-92 | 1 | DIBBS |
| 73-75-025 | 2019-04-92 | 1 | DIBBS |
| SK109 | 2019-04-92 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-791-0943
Technical Data | NSN 5935-00-791-0943
| Characteristic | Specifications |
|---|---|

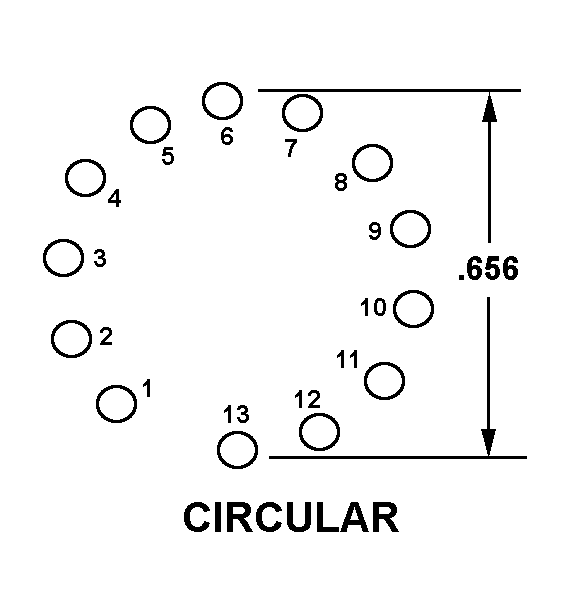

| CONTACT POSITION ARRANGEMENT STYLE | 1300A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 13 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | CADMIUM |
| BODY STYLE | 9B TOP MOUNT W/CENTER THRU HOLE |
| OVERALL HEIGHT | 0.338 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.129 INCHES MINIMUM AND 1.135 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.164 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC AND MICA |
| TERMINAL TYPE AND QUANTITY | 13 CLIP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |
| MOUNTING HOLE STYLE | 1D ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.029 INCHES MINIMUM AND 1.035 INCHES MAXIMUM |
| POLARIZATION TYPE | CONTACT POSITION |
