NSN 5935-00-790-4754 S010155101, S01015-5101, 9182500
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-790-4754 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: S010155101, S01015-5101, 9182500, 5935-00-790-4754, 00-790-4754, 5935007904754, 007904754
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-790-4754 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-790-4754
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-790-4754
Technical Data | NSN 5935-00-790-4754
| Characteristic | Specifications |
|---|---|

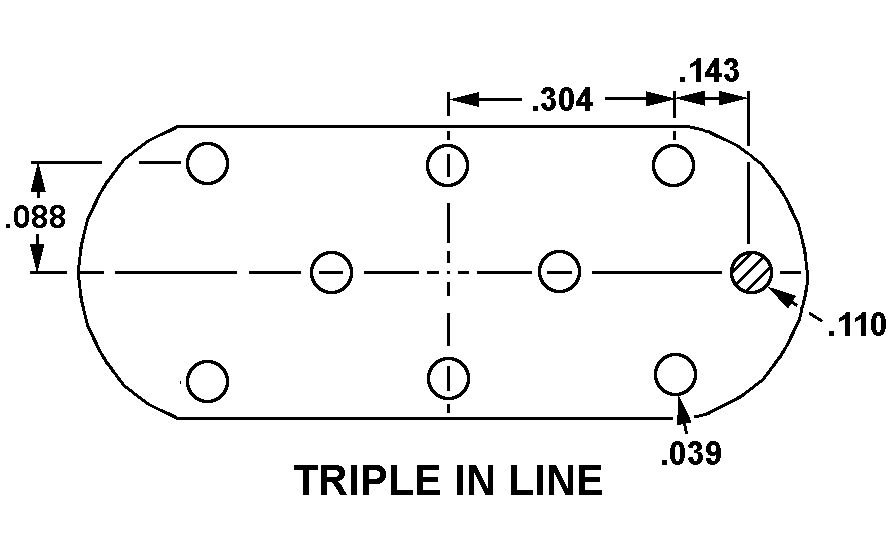

| CONTACT POSITION ARRANGEMENT STYLE | 801A TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |

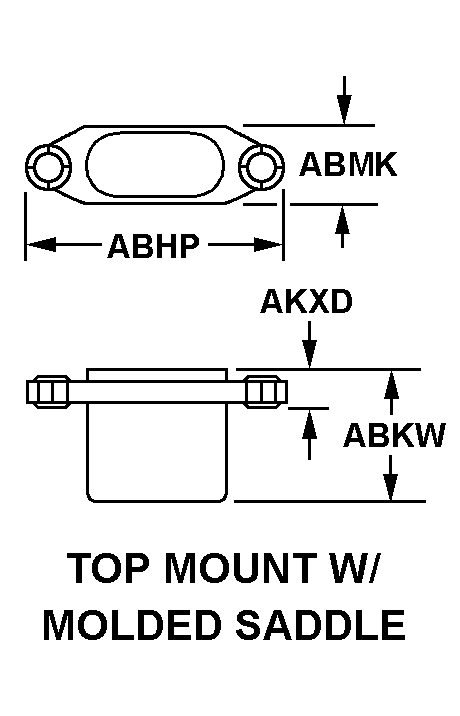

| BODY STYLE | 19B TOP MOUNT W/MOLDED SADDLE |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.578 INCHES MAXIMUM |
| OVERALL WIDTH | 0.631 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.270 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 13D RECTANGULAR, W/ROUNDED ENDS AND TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.200 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 0.532 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.844 INCHES NOMINAL |
| POLARIZATION TYPE | OFF CENTER HOLE |
| FURNISHED ITEMS AND QUANTITY | 2 SCREW AND 2 LOCK WASHER AND 2 STUD |
