NSN 5935-00-642-0992 MS3100A2020P, MS3100A20-20P, AN3100A2020P
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-642-0992 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3100A2020P, MS3100A20-20P, AN3100A2020P, AN3100A20-20P, 5935-00-642-0992, 00-642-0992, 5935006420992, 006420992
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-642-0992 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-642-0992
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-642-0992
Technical Data | NSN 5935-00-642-0992
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.188 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.156 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.156 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.750 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | DETENT |
| THREADED DEVICE TYPE | COUPLING FACILITY AND HUB |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 1.188 INCHES AND 1.1250 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 18 AND 18 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

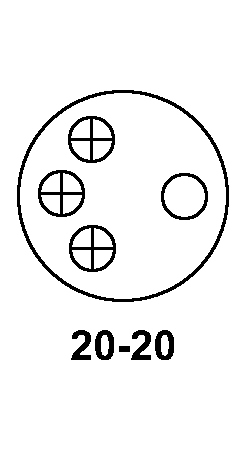

| CONTACT POSITION ARRANGEMENT STYLE | AECV 20-20 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 135.0 SINGLE MATING END 1ST CONTACT GROUPING 41.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END 1ST CONTACT GROUPING 500.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END 1ST CONTACT GROUPING 700.0 SINGLE MATING END 2ND CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-5015 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3100A20-20P |
Restrictions/Controls & Freight Information | NSN 5935-00-642-0992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-642-0992
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
