NSN 5935-00-595-8670 G3762243, G376224-3, GX17701G1R
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-595-8670 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: G3762243, G376224-3, GX17701G1R, GX17-70-1G1R , T051023GG, T0-51023-GG, 80581G91, 8058-1G91, 5935-00-595-8670, 00-595-8670, 5935005958670, 005958670
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JAN 1975 | 00-595-8670 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-595-8670
Cross Reference | NSN 5935-00-595-8670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8058-1G91 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8058-1G91 | 91506 | AUGAT INC |
| G376224-3 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| G376224-3 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| GX17-70-1G1R | 00779 | TYCO ELECTRONICS CORPORATION |
| GX17-70-1G1R | 91506 | AUGAT INC |
| T0-51023-GG | 55322 | SAMTEC INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-595-8670
Related Products | NSN 5935-00-595-8670
Technical Data | NSN 5935-00-595-8670
| Characteristic | Specifications |
|---|---|

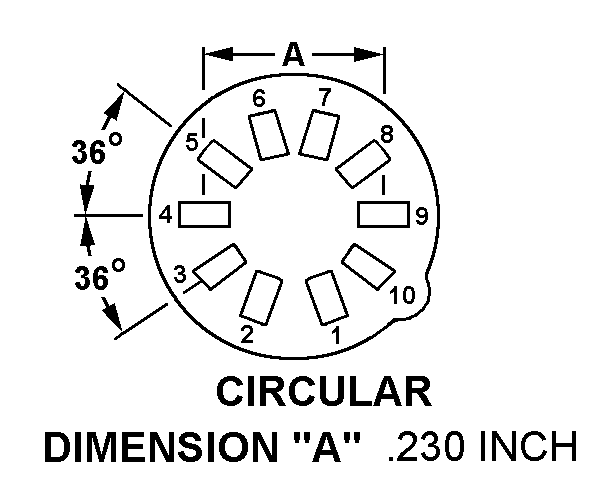

| CONTACT POSITION ARRANGEMENT STYLE | 1003A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |
| BODY STYLE | 28B PCB MOUNT |
| OVERALL HEIGHT | 0.390 INCHES NOMINAL |
| OVERALL DIAMETER | 0.390 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.155 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

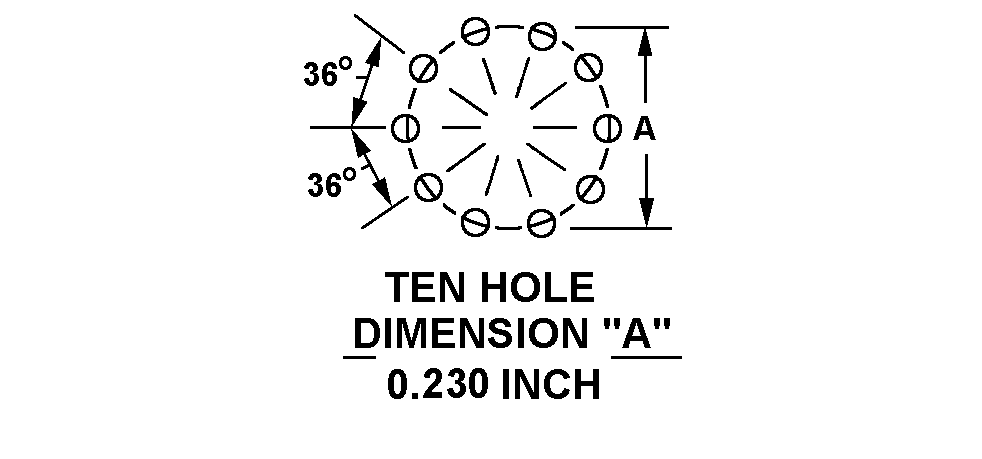

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1007E TEN HOLE |
| POLARIZATION TYPE | COLORED DOT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
