NSN 5935-00-593-9331 A2057501, A-205-750-1, A205-750-1
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-593-9331 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: A2057501, A-205-750-1, A205-750-1, A2057501M, A205-750-1M, H1G2057501, H1-G205-750-1, SL501M, SL50-1M, 02890253, 02-89-0253, 10606610-1, 518-486-4284 ITEM 12, 5184864284ITEM12, 5984021894435PC4, 598-402-1894435PC4, 7367309X1PC4, 73673-09X1PC4, 7367712X1PC76, 73677-12X1PC76, 9177452, 9885042PC4, 9885-042PC4, 5935-00-593-9331, 00-593-9331, 5935005939331, 005939331, 106066101
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-593-9331 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-593-9331
Demand History | NSN 5935-00-593-9331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 02-89-0253 | 2024-09-270 | 35 | DIBBS |
| 10606610-1 | 2024-09-270 | 35 | DIBBS |
| 73673-09X1PC4 | 2024-09-270 | 35 | DIBBS |
| 73677-12X1PC76 | 2024-09-270 | 35 | DIBBS |
| 9885-042PC4 | 2024-09-270 | 35 | DIBBS |
| 02-89-0253 | 2022-04-115 | 36 | DIBBS |
| 10606610-1 | 2022-04-115 | 36 | DIBBS |
| 73673-09X1PC4 | 2022-04-115 | 36 | DIBBS |
| 73677-12X1PC76 | 2022-04-115 | 36 | DIBBS |
| 9885-042PC4 | 2022-04-115 | 36 | DIBBS |
| 02-89-0253 | 2022-04-102 | 36 | DIBBS |
| 10606610-1 | 2022-04-102 | 36 | DIBBS |
| 73673-09X1PC4 | 2022-04-102 | 36 | DIBBS |
| 73677-12X1PC76 | 2022-04-102 | 36 | DIBBS |
| 9885-042PC4 | 2022-04-102 | 36 | DIBBS |
| 02-89-0253 | 2019-02-42 | 10 | DIBBS |
| 10606610-1 | 2019-02-42 | 10 | DIBBS |
| 73673-09X1PC4 | 2019-02-42 | 10 | DIBBS |
| 73677-12X1PC76 | 2019-02-42 | 10 | DIBBS |
| 9885-042PC4 | 2019-02-42 | 10 | DIBBS |
| 02-89-0253 | 2019-01-31 | 10 | DIBBS |
| 10606610-1 | 2019-01-31 | 10 | DIBBS |
| 73673-09X1PC4 | 2019-01-31 | 10 | DIBBS |
| 73677-12X1PC76 | 2019-01-31 | 10 | DIBBS |
| 9885-042PC4 | 2019-01-31 | 10 | DIBBS |
Cross Reference | NSN 5935-00-593-9331
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-89-0253 | 96169 | ELECTRIC BOAT CORPORATION |
| 10606610-1 | 04939 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 10606610-1 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 518-486-4284 ITEM 12 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 598-402-1894435PC4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 73673-09X1PC4 | 96169 | ELECTRIC BOAT CORPORATION |
| 73677-12X1PC76 | 96169 | ELECTRIC BOAT CORPORATION |
| 9177452 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 9885-042PC4 | 96169 | ELECTRIC BOAT CORPORATION |
| A-205-750-1 | 02287 | JAN DESIGNS CORP |
| A205-750-1 | 02289 | HI-G CO INC SUB OF NYTRONICS INC |
| A205-750-1M | 02289 | HI-G CO INC SUB OF NYTRONICS INC |
| H1-G205-750-1 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| SL50-1M | 02289 | HI-G CO INC SUB OF NYTRONICS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-593-9331
Related Products | NSN 5935-00-593-9331
Technical Data | NSN 5935-00-593-9331
| Characteristic | Specifications |
|---|---|

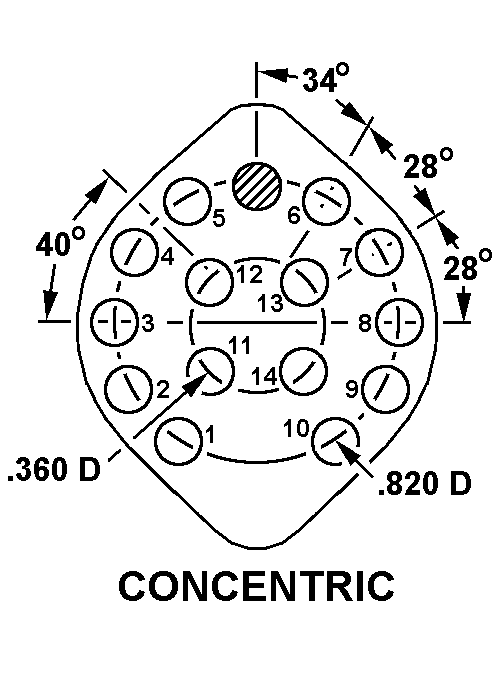

| CONTACT POSITION ARRANGEMENT STYLE | 1414A CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER |

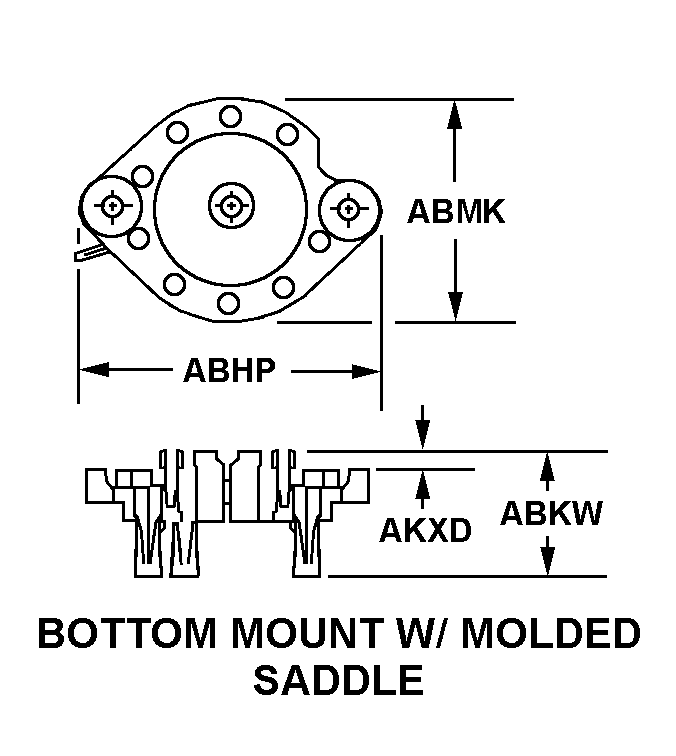

| BODY STYLE | 11B BOTTOM MOUNT W/MOLDED SADDLE |
