NSN 5935-00-592-1826 AP18173A, AP18173B, 21437805
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-592-1826 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: AP18173A, AP18173B, 21437805, 2143780-5, 5935-00-592-1826, 00-592-1826, 5935005921826, 005921826
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JAN 1975 | 00-592-1826 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-592-1826
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-592-1826
Related Products | NSN 5935-00-592-1826
Technical Data | NSN 5935-00-592-1826
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 300A CIRCULAR IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER |
| BODY STYLE | 36B TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.970 INCHES MINIMUM AND 2.030 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.052 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE AND THREADED BUSHING |

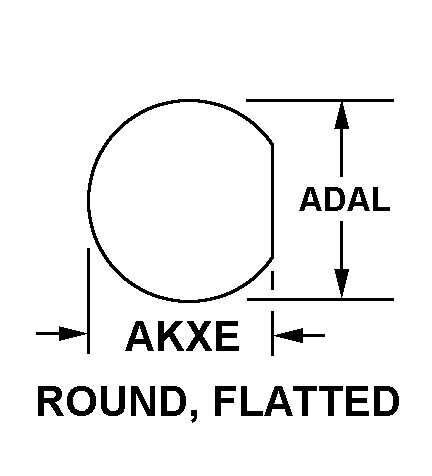

| MOUNTING HOLE STYLE | 3D ROUND, FLATTED |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.252 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| DISTANCE FROM FLATTED PORTION TO OPPOSITE SURFACE | 0.232 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION TYPE | SLOT |
| SPECIAL FEATURES | 1/4-32 THDMTG BUSHING |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-592-1826
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-592-1826
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
