Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-542-8537 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 73092, 5935-00-542-8537, 00-542-8537, 5935005428537, 005428537
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-542-8537 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-542-8537
Cross Reference | NSN 5935-00-542-8537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73092 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-542-8537
Technical Data | NSN 5935-00-542-8537
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.563 INCHES NOMINAL |
| OVERALL HEIGHT | 1.062 INCHES NOMINAL |
| OVERALL WIDTH | 2.875 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.437 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.221 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

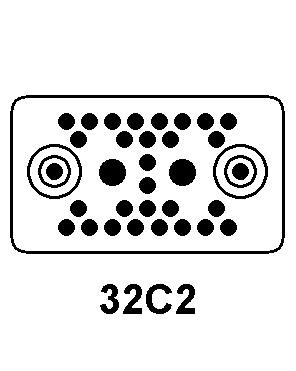

| CONTACT POSITION ARRANGEMENT STYLE | BJAY 32C2 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END 1ST CONTACT GROUPING 28 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 40.0 SINGLE MATING END 1ST CONTACT GROUPING 10.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 435.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 620.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
