NSN 5935-00-500-8748 B7570, FDUG58U, FJ0174262
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-500-8748 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: B7570, FDUG58U, FJ0174262, P2767536P17, UG58U, 0174262, 1250007, 16504, 25000, 2742, 2Z739058, 2Z7390-58, 3527696, 352-7696, 45017, 49470, 61000, 7248867, 74301, 74-301, 765094P2, 76-5094P2, 8224, 82-24, 5935-00-500-8748, 00-500-8748, 5935005008748, 005008748
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-500-8748 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-500-8748
Demand History | NSN 5935-00-500-8748
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16504 | 2024-10-289 | 1 | US |
| 25000 | 2016-08-216 | 2 | BE |
| 61000 | 2014-04-94 | 1 | IN |
| 25000 | 2011-03-69 | 1 | Israel |
Cross Reference | NSN 5935-00-500-8748
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0174262 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 1250007 | 16758 | GENERAL MOTORS CORP DELCO ELECTRONICS DIV |
| 1250007 | 24617 | GENERAL MOTORS CORP |
| 1250007 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 16504 | 73196 | HEYER PRODUCTS CO INC |
| 25000 | 74868 | AMPHENOL CORPORATION |
| 2742 | 80077 | MASSACHUSETTS INSTITUTE OF TECHNOLOGY RADIATION LABORATORIES |
| 2Z7390-58 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 352-7696 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 352-7696 | 3VUJ2 | LOCKHEED MARTIN CORPORATION DIV ISGS |
| 45017 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
| 49470 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 61000 | 07426 | WARWICK ELECTRONICS INC PACIFIC MERCURY DIV |
| 7248867 | 16758 | GENERAL MOTORS CORP DELCO ELECTRONICS DIV |
| 7248867 | 24617 | GENERAL MOTORS CORP |
| 74-301 | 75242 | KEENEY J H AND CO INC |
| 76-5094P2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 82-24 | 74868 | AMPHENOL CORPORATION |
| B7570 | 70638 | ASTATIC CORP THE |
| FDUG58U | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| FJ0174262 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| P2767536P17 | 24446 | GENERAL ELECTRIC CO |
| UG58U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| UG58U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| UG58U | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-500-8748
Technical Data | NSN 5935-00-500-8748
| Characteristic | Specifications |
|---|---|

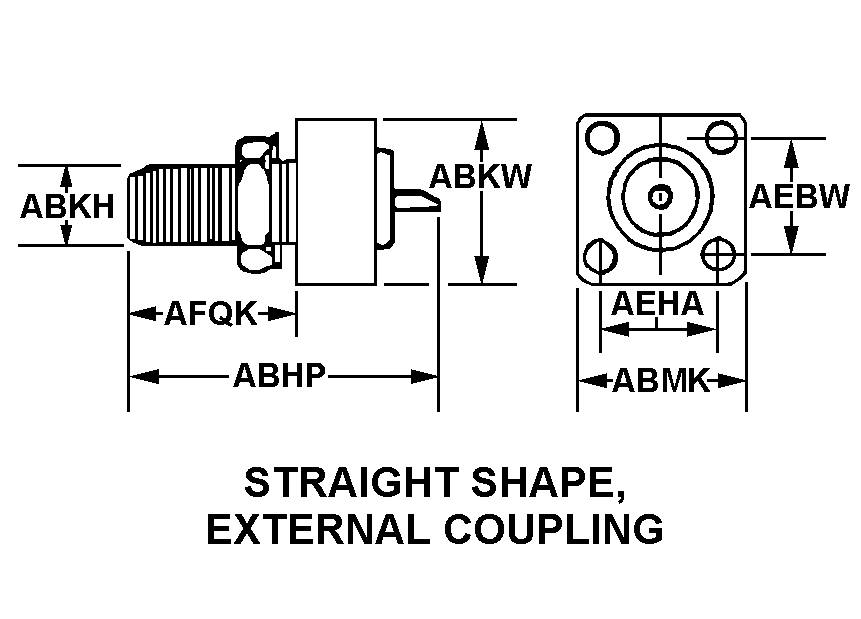

| BODY STYLE | 1L STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.109 INCHES NOMINAL |
| BUSHING DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.781 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.718 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.718 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.750 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | SCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 11 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.750 INCHES |
| MATING END QUANTITY | 1 |

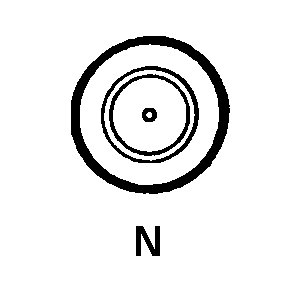

| CONTACT POSITION ARRANGEMENT STYLE | ABCE N SINGLE MATING END |
| INSERT MATERIAL | COPPER ALLOY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MISSING CONTACT TYPE AND QUANTITY | 1 COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
Restrictions/Controls & Freight Information | NSN 5935-00-500-8748
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
