NSN 5935-00-498-5785 MS24308/1-2, MS2430812, MX24308/1-2
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-498-5785 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS24308/1-2, MS2430812, MX24308/1-2, MX2430812, M24308/1-2, M24308/1-2F, M24308102, M24308-1-02, M2430812, M2430812F, MD308G15P1, MD308G-15P1, MD308G15S1, MD308G-15S1, SC593500224, SC5935-0022-4, ST320684, ST32068-4, TYPE DA-15S, TYPEDA15S, W41257A6000C2, W41257-A6000-C2, PMC0N1551, PMC0N15S1, PM-C0N15S-1, PMDA15P, PM-DA15P, PM-RMA-4 PIECE 6, PMRMA4PIECE6, PM-RMA-6 PIECE4, PMRMA6PIECE4, PM-RMA-7 PIECE4, PMRMA7PIECE4, MIL-DTL-24308/1, MILDTL243081, DA155, DA-155, DA15P, DA15S, DA-15S, DA15SC33, DAMF15SC31, FE1403000225H, FE140-3000-225H, 104008-002, 1601439002, 16-01439-002, 17041541, 17-04154-1, 1B31472, 1B3147-2, 28033906, 334906, 334-906, 3710358210, 371-0358-210, 4188172, 418817-2, 0639800069, 063-98-00069, 10138902 , 7915696-00, 981615, 9816-15, 5935-00-498-5785, 00-498-5785, 5935004985785, 004985785, 791569600, 104008002
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 OCT 1969 | 00-498-5785 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

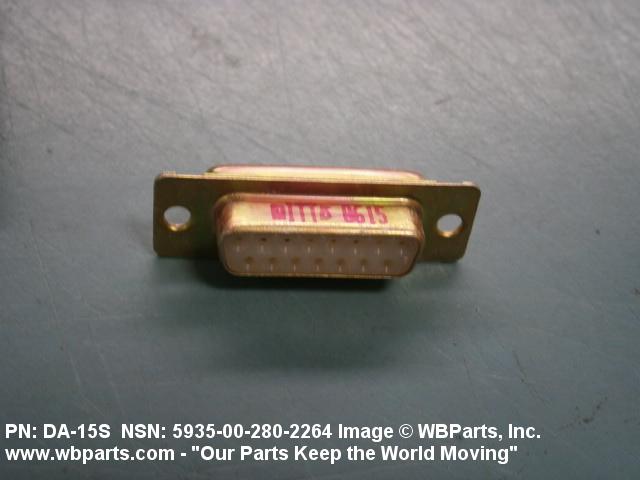

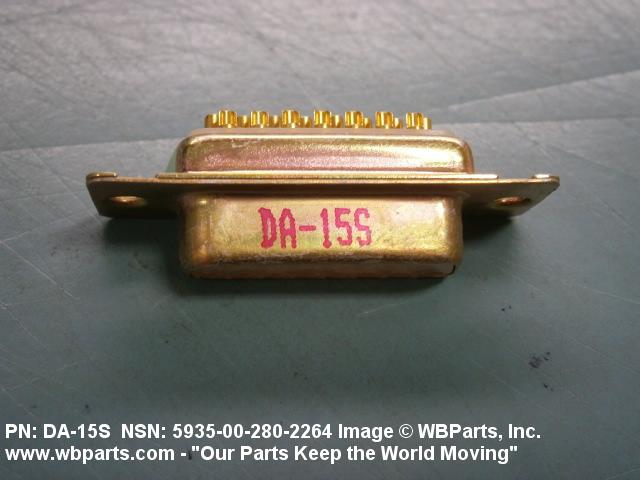

Drawings & Photos | NSN 5935-00-498-5785
Demand History | NSN 5935-00-498-5785
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DA15S | 2021-04-102 | 2 | Malaysia |
| 5935-00-498-5785 | 2013-10-292 | 3 | KR |
| 5935-00-498-5785 | 2011-04-107 | 30 | Taiwan |
| M2430812F | 2011-04-97 | 120 | TW |
| M2430812F | 2011-04-92 | 120 | Taiwan |
| 5935-00-498-5785 | 2008-11-327 | 20 | India |
| 5935-00-498-5785 | 2008-10-303 | 376 | DIBBS |
| 5935-00-498-5785 | 2008-05-144 | 1544 | DIBBS |
Cross Reference | NSN 5935-00-498-5785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 063-98-00069 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| 104008-002 | 35012 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| 16-01439-002 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| 17-04154-1 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 1B3147-2 | 97953 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| 28033906 | 20227 | HENLEY MARINE, INC |
| 334-906 | 90073 | CMC ELECTRONICS INC |
| 371-0358-210 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 371-0358-210 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 418817-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 7915696-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 9816-15 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DA-155 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DA-15S | 96169 | ELECTRIC BOAT CORPORATION |
| DA15P | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| DA15SC33 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DAMF15SC31 | 71468 | ITT CORPORATION DBA I T T CANNON |
| FE140-3000-225H | K3902 | BAE SYSTEMS MARITIME SERVICES |
| M24308-1-02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24308/1-2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| M24308/1-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M24308/1-2F | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MD308G-15P1 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| MD308G-15S1 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| MIL-DTL-24308/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24308/1-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MX24308/1-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PM-C0N15S-1 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| PM-DA15P | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| PM-RMA-4 PIECE 6 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| PM-RMA-6 PIECE4 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| PM-RMA-7 PIECE4 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| PMC0N1551 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| SC5935-0022-4 | 12115 | DRS ICAS, LLC |
| ST32068-4 | 13993 | BALL AEROSPACE & TECHNOLOGIES CORP. DIV CIVIL SPACE SYSTEMS; DEFENSE |
| TYPE DA-15S | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| W41257-A6000-C2 | C0426 | AIRBUS DEFENCE AND SPACE GMBHELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-498-5785
Technical Data | NSN 5935-00-498-5785
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.540 INCHES NOMINAL |
| OVERALL HEIGHT | 0.572 INCHES MAXIMUM |
| OVERALL WIDTH | 0.490 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.312 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 2 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ARAQ 2,15 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE SDG-F OR TYPE GPT-30F OR TYPE GET-30F IAW MIL-M-24519 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 15 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1200.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE II,CLASS 2 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE AND MIL-C-14550,CLASS III MIL SPEC 3RD TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-MIL-C-24308 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24308/1 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY AND 0.015 SILVER GRAINS, TROY |
Restrictions/Controls & Freight Information | NSN 5935-00-498-5785
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-498-5785
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
