NSN 5935-00-498-2104 AT155, AT-155, AT1551
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-498-2104 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: AT155, AT-155, AT1551, AT-155-1, 1788113, 2659960, 560751, 5935-00-498-2104, 00-498-2104, 5935004982104, 004982104
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 OCT 1969 | 00-498-2104 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-498-2104
Cross Reference | NSN 5935-00-498-2104
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1788113 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2659960 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 560751 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| AT-155 | 78277 | SIGMA INSTRUMENTS INC |
| AT-155-1 | 78277 | SIGMA INSTRUMENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-498-2104
Technical Data | NSN 5935-00-498-2104
| Characteristic | Specifications |
|---|---|

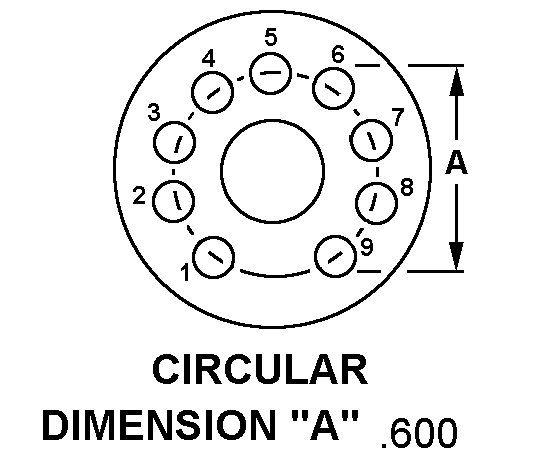

| CONTACT POSITION ARRANGEMENT STYLE | 902A CIRCULAR |
