NSN 5935-00-495-7379 102853931B3, 10-285393-1B3, 202262321B3
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-495-7379 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 102853931B3, 10-285393-1B3, 202262321B3, 202-26232-1B3, 5935-00-495-7379, 00-495-7379, 5935004957379, 004957379
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1972 | 00-495-7379 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-495-7379
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-495-7379
Technical Data | NSN 5935-00-495-7379
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21Q RIGHT ANGLE TYPE |
| OVERALL LENGTH | 4.640 INCHES MINIMUM AND 4.660 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.805 INCHES NOMINAL |
| OVERALL WIDTH | 0.542 INCHES MINIMUM AND 0.552 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 4.278 INCHES MINIMUM AND 4.298 INCHES MAXIMUM |
| THREADED DEVICE TYPE | MOUNTING HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| GUIDE DESIGN AND LOCATION | HEXAGON SHAPE FEMALE POST LEFT-HAND AT 3 OCLOCK HEXAGON SHAPE FEMALE POST RIGHT-HAND AT 7 OCLOCK |
| MATING END QUANTITY | 1 |

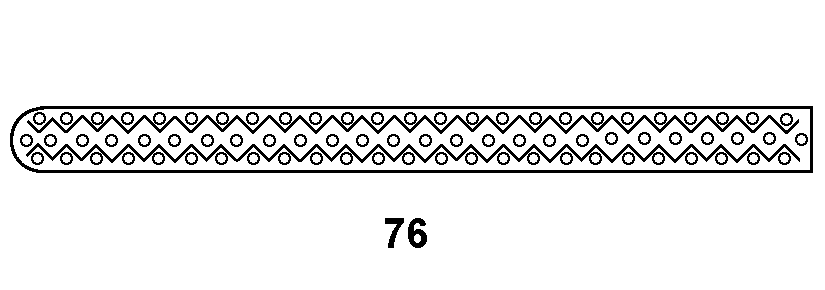

| CONTACT POSITION ARRANGEMENT STYLE | DFAC 76 SINGLE MATING END |
