NSN 5935-00-495-3134 DPD2MA44035, 546686-001, 5466861
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-495-3134 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPD2MA44035, 546686-001, 5466861, 546686-1, 5935-00-495-3134, 00-495-3134, 5935004953134, 546686001, 004953134
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUN 1971 | 00-495-3134 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-495-3134
Cross Reference | NSN 5935-00-495-3134
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-495-3134
Technical Data | NSN 5935-00-495-3134
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19G STRAIGHT SHAPE, FLUSH MOUNT |
| OVERALL LENGTH | 0.980 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES NOMINAL |
| OVERALL WIDTH | 3.938 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.000 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.875 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| MATING END QUANTITY | 2 |

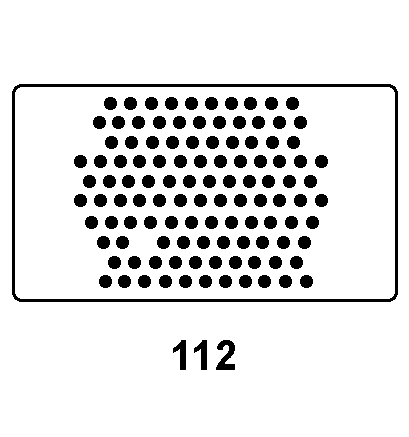

| CONTACT POSITION ARRANGEMENT STYLE | ETAA 112 ALL MATING ENDS |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE ALL MATING ENDS |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-19833,TY GDI-30F MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-M-14,TY MDG MIL SPEC SINGLE MATERIAL RESPONSE ALL MATING ENDS |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP ALL MATING ENDS SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK ALL MATING ENDS SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | VIBRATION RESISTANT AND MOISTURE RESISTANT AND SALT WATER RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.224 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-495-3134
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-495-3134
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
