NSN 5935-00-494-6855 M2423113001, M24231-13-001, M243113001L1
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-494-6855 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M2423113001, M24231-13-001, M243113001L1, M2431-13-001L1, SYM 737.1, SYM7371, MILC2423113, MILC24231-13, MILC243113L1, MILC2431-13L1, 8151197351SYM1324, 815-1197351SYM1324 , 8151197351SYM1324L1, 815-1197351SYM1324L1 , 8151197351SYM1325, 815-1197351SYM1325, 8151197351SYM1325L1, 815-1197351SYM1325L1, 4700664PC41, 4700-664PC41, 4700664PC41L1, 4700-664PC41L1, 5935-00-494-6855, 00-494-6855, 5935004946855, 004946855
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAR 1970 | 00-494-6855 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-494-6855
Demand History | NSN 5935-00-494-6855
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-494-6855 | 2022-08-227 | 1 | US |
| 5935-00-494-6855 | 2022-08-214 | 52 | US |
| 5935-00-494-6855 | 2022-05-125 | 5 | CA |
| M2423113001 | 2019-02-51 | 158 | US |
| 5935-00-494-6855 | 2018-02-54 | 22 | NECO |
| 5935-00-494-6855 | 2014-07-195 | 152 | NECO |
| 5935-00-494-6855 | 2014-05-140 | 152 | NECO |
| 5935-00-494-6855 | 2014-02-43 | 152 | NECO |
| 5935-00-494-6855 | 2013-12-337 | 152 | NECO |
Cross Reference | NSN 5935-00-494-6855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4700-664PC41 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 4700-664PC41L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 815-1197351SYM1324 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 815-1197351SYM1324L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| M24231-13-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M2431-13-001L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MILC24231-13 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC2431-13L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| SYM 737.1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-494-6855
Technical Data | NSN 5935-00-494-6855
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3H STRAIGHT SHAPE, THRU-HOLE MOUNT, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.343 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.781 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.469 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.437 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | NICKEL ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-286,CLASS A FED SPEC SINGLE MATERIAL RESPONSE |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

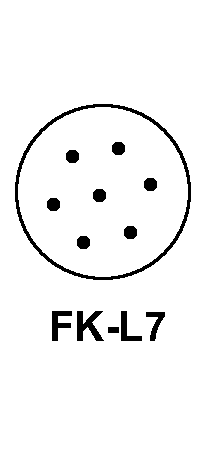

| CONTACT POSITION ARRANGEMENT STYLE | AHCN FK-L7 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-P-17091 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| DEPARTURE FROM CITED DESIGNATOR | QUALITY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTIONS FOR LEVEL 1 ITEMS. |
| CRITICALITY CODE JUSTIFICATION | ZZZX |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC24231-13 |
Restrictions/Controls & Freight Information | NSN 5935-00-494-6855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-494-6855
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
