NSN 5935-00-493-5585 MLPT0, MLPTX, MLP-TX
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-493-5585 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MLPT0, MLPTX, MLP-TX, C125604, C1256-04, CO45103, CO-45103, TX45103, 990C416H02, 45103, 45103TX, 5935-00-493-5585, 00-493-5585, 5935004935585, 004935585
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 FEB 1970 | 00-493-5585 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

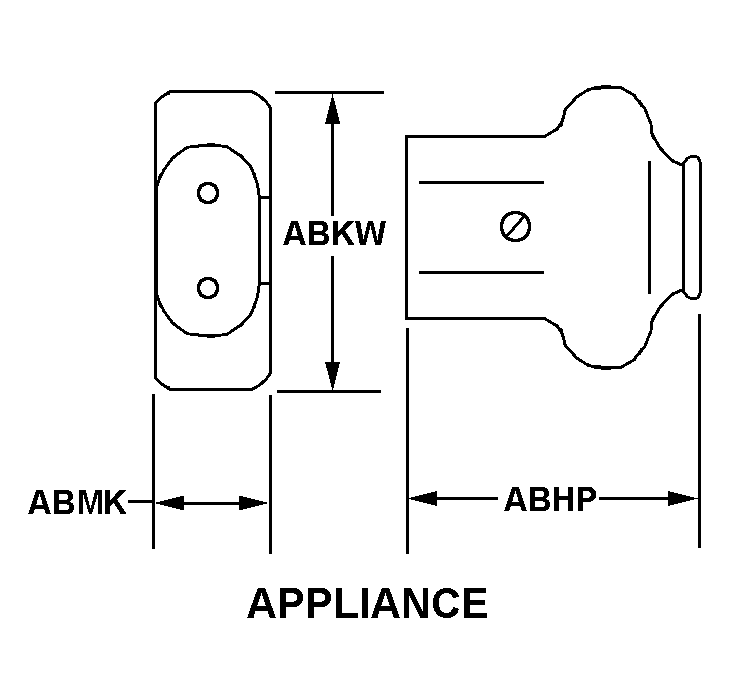

Drawings & Photos | NSN 5935-00-493-5585
Cross Reference | NSN 5935-00-493-5585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45103 | 99195 | THERMO ELECTRIC COMPANY INC. DBA THERMO ELECTRIC TEMPERATURE |
| 45103TX | 99195 | THERMO ELECTRIC COMPANY INC. DBA THERMO ELECTRIC TEMPERATURE |
| 990C416H02 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
| C1256-04 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| CO-45103 | 99195 | THERMO ELECTRIC COMPANY INC. DBA THERMO ELECTRIC TEMPERATURE |
| MLP-TX | 99195 | THERMO ELECTRIC COMPANY INC. DBA THERMO ELECTRIC TEMPERATURE |
| MLPT0 | 16908 | THERMO ELECTRIC CANADA LTD |
| MLPTX | 16908 | THERMO ELECTRIC CANADA LTD |
| TX45103 | 99195 | THERMO ELECTRIC COMPANY INC. DBA THERMO ELECTRIC TEMPERATURE |
