NSN 5935-00-493-5823 MS31058S, MS3105-8S, AS50151
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-493-5823 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: MS31058S, MS3105-8S, AS50151, MILC5015, 5935-00-493-5823, 00-493-5823, 5935004935823, 004935823
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 FEB 1970 | 00-493-5823 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-493-5823
Demand History | NSN 5935-00-493-5823
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-493-5823 | 2014-05-134 | 89 | DIBBS |
| 5935-00-493-5823 | 2013-10-276 | 71 | DIBBS |
| 5935-00-493-5823 | 2010-02-36 | 158 | DIBBS |
| 5935-00-493-5823 | 2007-06-166 | 185 | DIBBS |
| 5935-00-493-5823 | 2007-03-74 | 46 | DIBBS |
Cross Reference | NSN 5935-00-493-5823
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS50151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MILC5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3105-8S | 06324 | GLENAIR, INC. |
| MS3105-8S | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS3105-8S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-493-5823
Related Products | NSN 5935-00-493-5823
Technical Data | NSN 5935-00-493-5823
| Characteristic | Specifications |
|---|---|

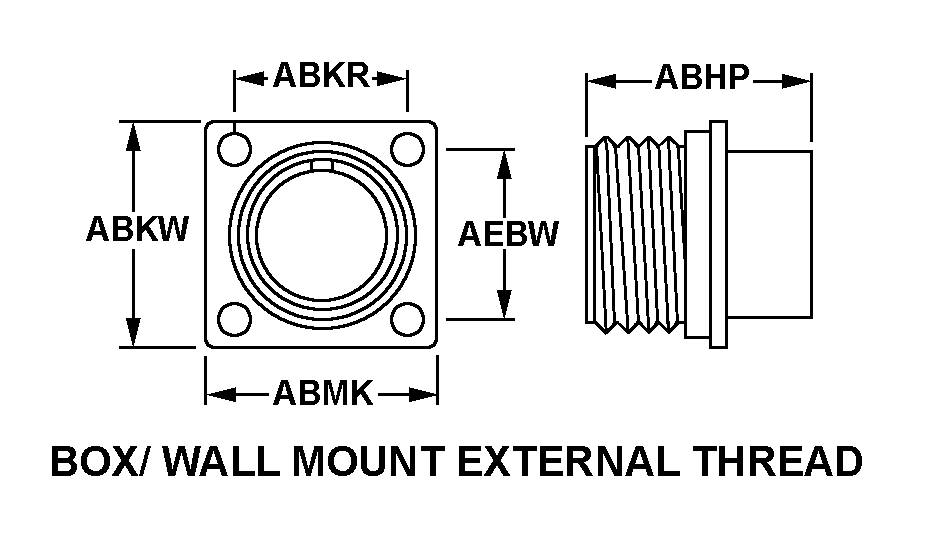

| STYLE DESIGNATOR | 7D BOX/WALL MOUNT EXTERNAL THREAD |
