Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-493-3568 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5757, 5935-00-493-3568, 00-493-3568, 5935004933568, 004933568
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 FEB 1970 | 00-493-3568 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-493-3568
Cross Reference | NSN 5935-00-493-3568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5757 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-493-3568
Technical Data | NSN 5935-00-493-3568
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 8C STRAIGHT SHAPE W/CLAMP |
| OVERALL HEIGHT | 2.374 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES NOMINAL |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CORD GRIP |
| CABLE ENTRANCE DIAMETER | 0.437 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SHELL TYPE | ARMORED |
| SHELL MATERIAL | IRON |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

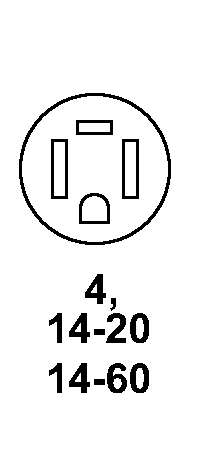

| CONTACT POSITION ARRANGEMENT STYLE | AEDR 4,14-20,14-60 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 20.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | CONFORMS TO NEMA CONFIGURATION 14-20P |
