NSN 5935-00-493-4870 MS272656, MS27265-6, X1806150

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-493-4870 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS272656, MS27265-6, X1806150, X1806-1-50, MILC38159, MIL-C-38159, 5935-00-493-4870, 00-493-4870, 5935004934870, 004934870

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	20 FEB 1970	00-493-4870	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-00-493-4870

Part Number	Request Date	QTY	Origin
5935-00-493-4870	2024-05-127	1	us
5935-00-493-4870	2024-05-122	1	US
5935-00-493-4870	2022-09-256	21	DIBBS
5935-00-493-4870	2022-04-93	16	DIBBS
5935-00-493-4870	2022-01-20	5	DIBBS
5935-00-493-4870	2021-10-302	7	US
MS272656	2021-07-183	25	US
5935-00-493-4870	2021-06-162	49	United States
5935-00-493-4870	2020-12-349	1	US
5935-00-493-4870	2020-11-317	18	DIBBS
5935-00-493-4870	2020-10-294	17	DIBBS
5935-00-493-4870	2020-09-265	8	United States
5935-00-493-4870	2020-09-259	8	United States
5935-00-493-4870	2020-09-245	1	US
5935-00-493-4870	2019-02-52	22	DIBBS
MS272656	2018-05-123	4	US
5935-00-493-4870	2018-04-115	4	US
MS272656	2018-02-38	4	US
5935-00-493-4870	2018-02-38	4	US
MS272656	2018-02-32	4	US
5935-00-493-4870	2017-02-33	19	DIBBS
MILC38159	2015-11-321	21	US
5935-00-493-4870	2015-11-321	23	DIBBS
5935-00-493-4870	2015-10-302	21	DIBBS
5935-00-493-4870	2015-08-218	19	DIBBS
5935-00-493-4870	2015-07-212	1	US
5935-00-493-4870	2015-05-147	5	DIBBS
5935-00-493-4870	2014-06-166	15	DIBBS
5935-00-493-4870	2014-01-05	13	DIBBS
5935-00-493-4870	2013-03-70	12	DIBBS
5935-00-493-4870	2010-06-160	7	DIBBS
5935-00-493-4870	2010-01-05	17	DIBBS
5935-00-493-4870	2009-09-253	9	DIBBS
5935-00-493-4870	2009-05-127	10	DIBBS
5935-00-493-4870	2009-05-127	17	DIBBS
5935-00-493-4870	2008-07-212	8	DIBBS
MS272656	2008-07-206	20	US
MS272656	2008-06-154	2	US
MS272656	2008-05-126	3	US

Cross Reference | NSN 5935-00-493-4870

Part Number	Cage Code	Manufacturer
MIL-C-38159	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS27265-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
X1806-1-50	32537	JOY TECHNOLOGIES INC. DBA MINING JOY MACHINERY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-493-4870

Compare

Related Products | NSN 5935-00-493-4870

5935-00-493-4880, 5935-00-493-4901, 5935-00-493-4903, 5935-00-493-4905, 5935-00-493-4927

Technical Data | NSN 5935-00-493-4870

Characteristic	Specifications
BODY STYLE	21C STRAIGHT SHAPE W/STRAIN RELIEF
OVERALL LENGTH	12.970 INCHES NOMINAL
OVERALL DIAMETER	4.375 INCHES NOMINAL
CONNECTOR LOCKING METHOD	FRICTION
CONNECTOR CABLE STRAIN RELIEF METHOD	CABLE CLAMP
CABLE ENTRANCE DIAMETER	1.375 INCHES MINIMUM AND 2.125 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	RUBBER SYNTHETIC
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	ASTM 735,CLASS SC510B ASSN STD SINGLE MATERIAL RESPONSE
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1

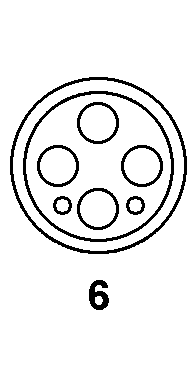

CONTACT POSITION ARRANGEMENT STYLE	AGBZ 6 SINGLE MATING END
INSERT MATERIAL	RUBBER SYNTHETIC SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	ASTM 735,CLASS SC510B ASSN STD SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	2 SINGLE MATING END 1ST CONTACT GROUPING 4 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	416.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-B-626,COMPOSITION 22 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365,TYPE III FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SCREW W/WIRE LOCK SINGLE MATING END 1ST CONTACT GROUPING SOLDER WELL SINGLE MATING END 2ND CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	THERMAL SHOCK RESISTANT AND HUMIDITY RESISTANT AND CORROSION RESISTANT AND SHOCK RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-38159 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS27265 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.030 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-38159
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD	MS27265-6

Restrictions/Controls & Freight Information | NSN 5935-00-493-4870

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-493-4870

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
