NSN 5935-00-365-9186 276M0768P001, 45185CL, 7904758-00
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-365-9186 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 276M0768P001, 45185CL, 7904758-00, 885965, 8859651, 885965-1, 7903759, 5935-00-365-9186, 00-365-9186, 5935003659186, 003659186, 790475800
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 1974 | 00-365-9186 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-365-9186
Demand History | NSN 5935-00-365-9186
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-365-9186 | 2008-12-339 | 2 | DIBBS |
| 5935-00-365-9186 | 2008-02-32 | 5 | DIBBS |
| 5935-00-365-9186 | 2007-01-24 | 2 | DIBBS |
Cross Reference | NSN 5935-00-365-9186
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 276M0768P001 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 45185CL | 74545 | HUBBELL INC WIRING DEVICE DIV |
| 7903759 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7904758-00 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 885965 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 885965-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 885965-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-365-9186
Related Products | NSN 5935-00-365-9186
Technical Data | NSN 5935-00-365-9186
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 8K STRAIGHT SHAPE, ROUND FLANGE TYPE |
| DIAMETER | 2.218 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 1.343 INCHES NOMINAL |
| OVERALL DIAMETER | 3.062 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 3.656 INCHES NOMINAL |
| ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG | 120.0 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | CONTACT TWISTLOCK |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.625 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

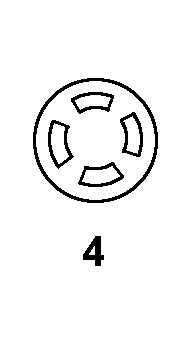

| CONTACT POSITION ARRANGEMENT STYLE | AEDT 4 SINGLE MATING END |
