Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-365-6811 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MRS0104P00GN000, 5935-00-365-6811, 00-365-6811, 5935003656811, 003656811
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 FEB 1974 | 00-365-6811 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-365-6811
Cross Reference | NSN 5935-00-365-6811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MRS0104P00GN000 | 73293 | L-3 COMMUNICATIONS ELECTRON TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-365-6811
Technical Data | NSN 5935-00-365-6811
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31G STRAIGHT SHAPE, RECTANGULAR |
| OVERALL LENGTH | 2.877 INCHES NOMINAL |
| OVERALL HEIGHT | 1.347 INCHES NOMINAL |
| OVERALL WIDTH | 1.347 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.037 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.037 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.142 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SCREW LOCK PIN |
| POLARIZATION METHOD | POLARIZATION BOSS |
| BOSS TYPE AND LOCATION DESIGNATOR | GN PIN |
| MATING END QUANTITY | 1 |

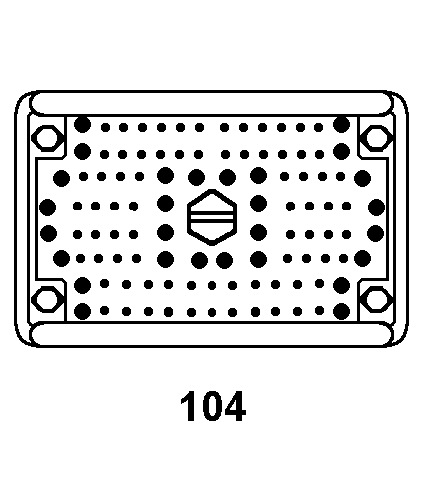

| CONTACT POSITION ARRANGEMENT STYLE | EKAC 104 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 104 ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| SPECIAL FEATURES | WITH MOUNTING INSERTS |
