NSN 5935-00-344-4408 2296931, 229693-1, 00-344-4408
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-344-4408 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 2296931, 229693-1, 5935-00-344-4408, 00-344-4408, 5935003444408, 003444408
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JAN 1968 | 00-344-4408 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-344-4408
Cross Reference | NSN 5935-00-344-4408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 229693-1 | 65597 | THALES DEFENSE & SECURITY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-344-4408
Technical Data | NSN 5935-00-344-4408
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 19G STRAIGHT SHAPE, FLUSH MOUNT |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.766 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.484 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.093 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | 3 POLARIZATION POSTS |
| GUIDE DESIGN AND LOCATION | HEXAGON SHAPE MALE POST LEFT-HAND AT 7 OCLOCK HEXAGON SHAPE MALE POST CENTER AND HEXAGON SHAPE MALE POST RIGHT-HAND AT 12 OCLOCK |
| MATING END QUANTITY | 1 |

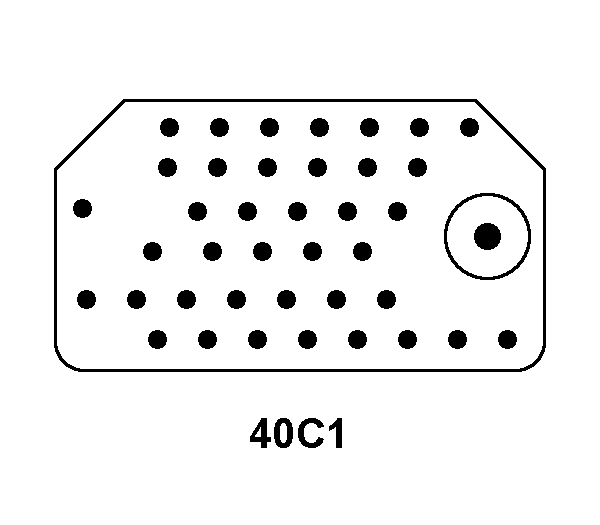

| CONTACT POSITION ARRANGEMENT STYLE | BSAD 40C1 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 39 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END 1ST CONTACT GROUPING NONREMOVABLE SINGLE MATING END 2ND CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END 1ST CONTACT GROUPING ROUND PIN SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END 1ST CONTACT GROUPING SOLDER WELL SINGLE MATING END 2ND CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-344-4408
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
