NSN 5935-00-336-8606 1300100006, 1300-100-006, 3480A
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-336-8606 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 1300100006, 1300-100-006, 3480A, 3480-A, 8380979, 5935-00-336-8606, 00-336-8606, 5935003368606, 003368606
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-336-8606 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-336-8606
Demand History | NSN 5935-00-336-8606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1300-100-006 | 2024-08-241 | 1 | DIBBS |
| 5935-00-336-8606 | 2018-09-269 | 1 | DIBBS |
| 5935-00-336-8606 | 2018-07-204 | 1 | DIBBS |
| 5935-00-336-8606 | 2014-09-253 | 1 | US |
| 5935-00-336-8606 | 2011-03-64 | 3 | DIBBS |
| 5935-00-336-8606 | 2009-01-14 | 5 | DIBBS |
| 5935-00-336-8606 | 2008-04-108 | 25 | DIBBS |
| 5935-00-336-8606 | 2007-11-306 | 10 | DIBBS |
| 5935-00-336-8606 | 2007-03-73 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-336-8606
Related Products | NSN 5935-00-336-8606
Technical Data | NSN 5935-00-336-8606
| Characteristic | Specifications |
|---|---|

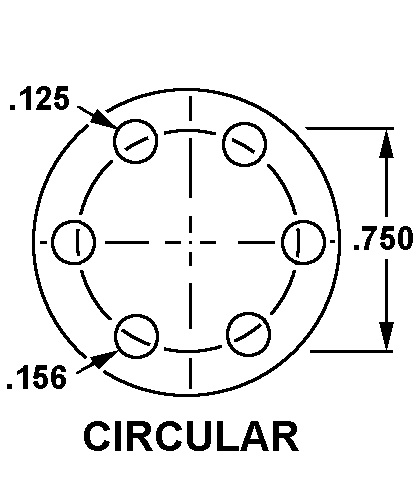

| CONTACT POSITION ARRANGEMENT STYLE | 600A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 6 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |

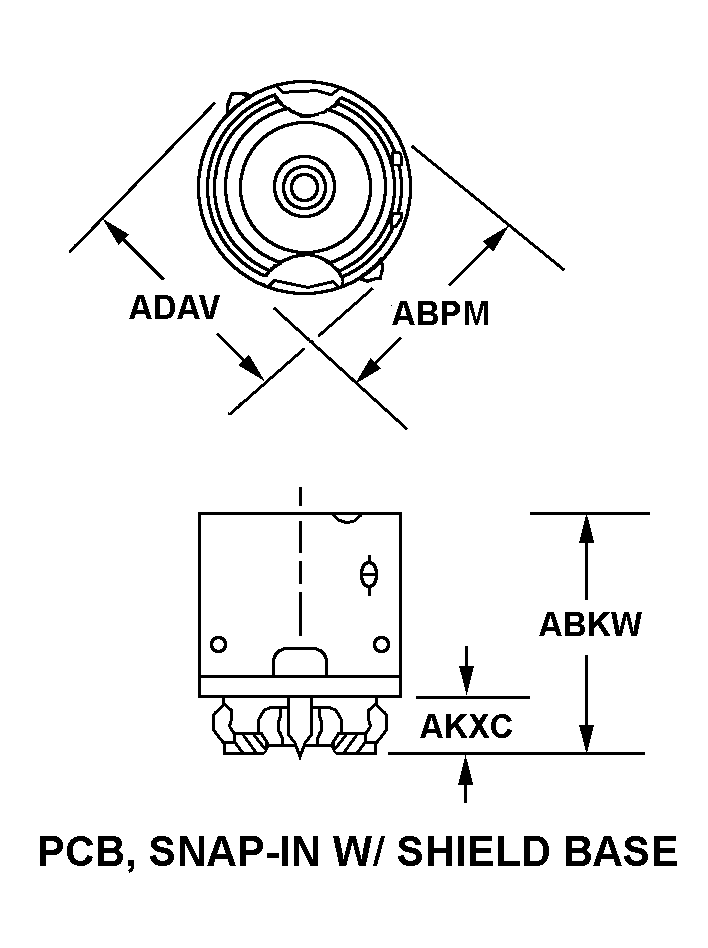

| BODY STYLE | 41B PCB, SNAP-IN W/SHIELD BASE |
| OVERALL HEIGHT | 4.875 INCHES NOMINAL |
| BODY DIAMETER | 4.125 INCHES NOMINAL |
| OVERALL DIAMETER | ANY ACCEPTABLE |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.812 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SNAP-IN |

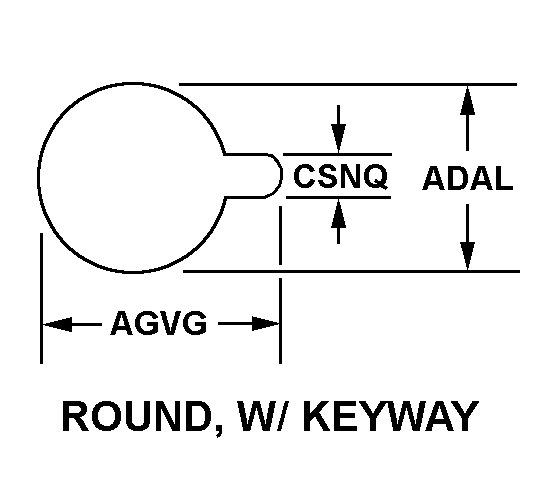

| MOUNTING HOLE STYLE | 4D ROUND, W/KEYWAY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | ANY ACCEPTABLE |
| BUSHING HOLE AND KEYWAY LENGTH | ANY ACCEPTABLE |
| MOUNTING KEYWAY WIDTH | ANY ACCEPTABLE |
| POLARIZATION TYPE | SLOT |
| FEATURES PROVIDED | COMPONENT RETAINING DEVICE |
Restrictions/Controls & Freight Information | NSN 5935-00-336-8606
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
