NSN 5935-00-335-8058 A2275, 7536535, 7536535P0002
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-335-8058 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: A2275, 7536535, 7536535P0002, 7536535P2, 80592G2, 8059-2G2, 5935-00-335-8058, 00-335-8058, 5935003358058, 003358058
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 DEC 1973 | 00-335-8058 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-335-8058
Cross Reference | NSN 5935-00-335-8058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7536535 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7536535P0002 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7536535P2 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 8059-2G2 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8059-2G2 | 91506 | AUGAT INC |
| A2275 | 81535 | AERONAUTICAL COMMUNICATIONS EQUIPMENT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-335-8058
Related Products | NSN 5935-00-335-8058
Technical Data | NSN 5935-00-335-8058
| Characteristic | Specifications |
|---|---|

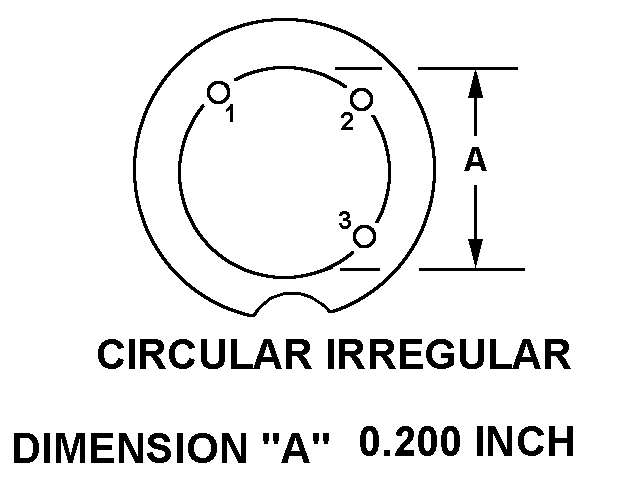

| CONTACT POSITION ARRANGEMENT STYLE | 301A TRIANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 3 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | NICKEL AND GOLD |

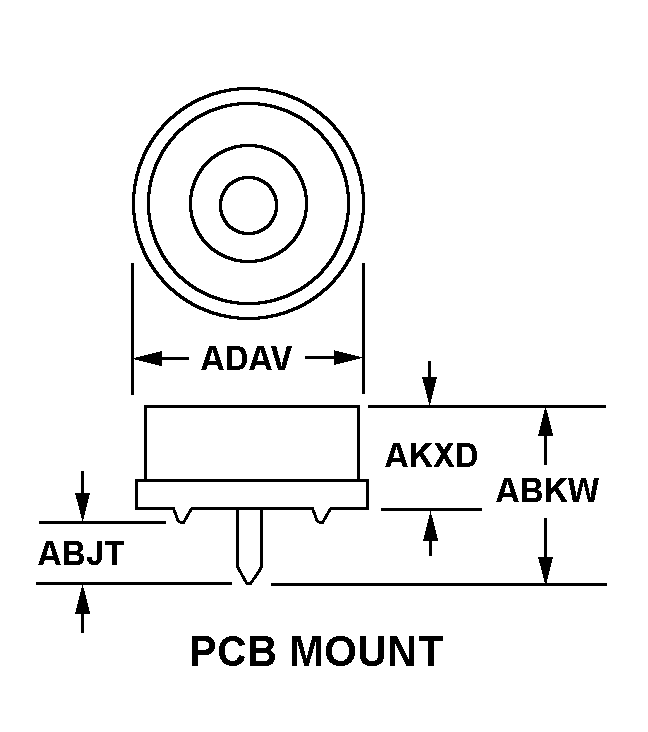

| BODY STYLE | 26B PCB MOUNT |
| TERMINAL LENGTH | 0.185 INCHES NOMINAL |
| OVERALL HEIGHT | 0.300 INCHES NOMINAL |
| OVERALL DIAMETER | 0.453 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.115 INCHES NOMINAL |
| BODY MATERIAL | GLASS AND POLYAMIDE NYLON |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

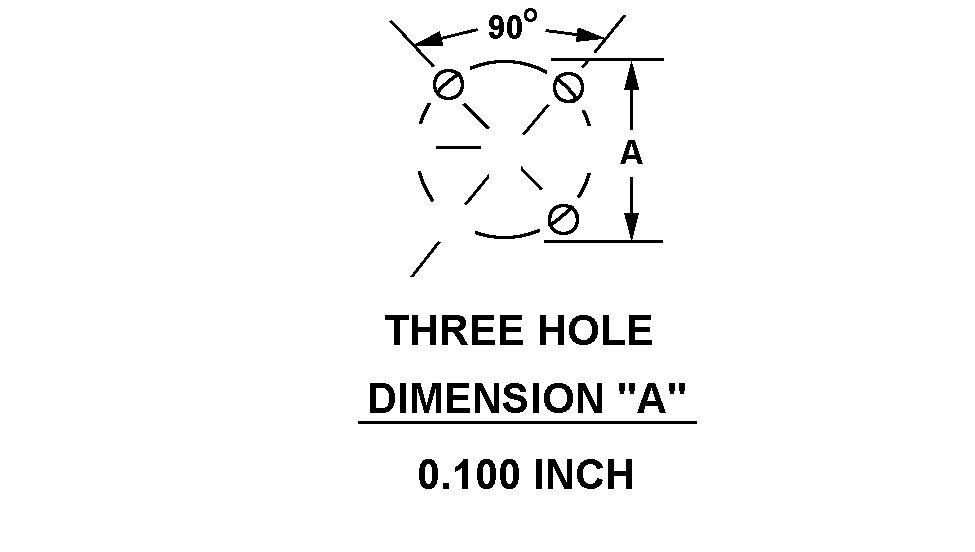

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 302E THREE HOLE |
| SPECIAL FEATURES | POLARIZATION TAB. WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | AIRCRAFT, F-16, RADAR THREAT EMITER AN/MST-T1, AIRCRAFT, TOMCAT F-14, AIRCRAFT, STARLIFTER C-141, AIRCRAFT, VIKING S-3B |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-335-8058
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
