NSN 5935-00-280-2951 RWK3431SL, RWK3-4-31SL, 00-280-2951
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-280-2951 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: RWK3431SL, RWK3-4-31SL, 5935-00-280-2951, 00-280-2951, 5935002802951, 002802951
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-280-2951 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-280-2951
Cross Reference | NSN 5935-00-280-2951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RWK3-4-31SL | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-280-2951
Technical Data | NSN 5935-00-280-2951
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL HEIGHT | 1.296 INCHES MINIMUM AND 1.328 INCHES MAXIMUM |
| OVERALL WIDTH | 1.296 INCHES MINIMUM AND 1.328 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.967 INCHES MINIMUM AND 0.977 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.967 INCHES MINIMUM AND 0.977 INCHES MAXIMUM |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.422 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.139 INCHES MINIMUM AND 0.149 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.812 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 6 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

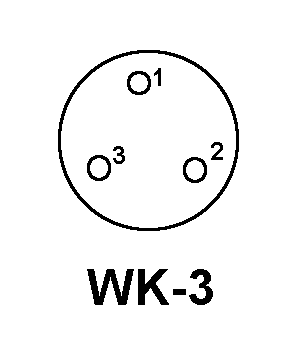

| CONTACT POSITION ARRANGEMENT STYLE | ADCD WK-3 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OR PLASTIC PHENOLIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 15.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER OR GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY AND 0.015 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
