NSN 5935-00-260-0526 SCB23521, GH21332FRB, GH2133-2FRB
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-260-0526 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SCB23521, GH21332FRB, GH2133-2FRB, 2037204036, 203-72-04-036, 2037204037, 203-72-04-037, 9800, 9804A, 9A25981, 9B30451, 5935-00-260-0526, 00-260-0526, 5935002600526, 002600526
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-260-0526 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-260-0526
Demand History | NSN 5935-00-260-0526
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9800 | 2021-04-112 | 1 | United States |
Cross Reference | NSN 5935-00-260-0526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 203-72-04-036 | 71785 | CINCH CONNECTORS, INC. |
| 203-72-04-037 | 71785 | CINCH CONNECTORS, INC. |
| 9800 | 71785 | CINCH CONNECTORS, INC. |
| 9804A | 71785 | CINCH CONNECTORS, INC. |
| 9A25981 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 9A25981 | 78152 | SENTINEL RADIO CORP |
| 9A25981 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 9B30451 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 9B30451 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| GH2133-2FRB | F0057 | THALES COMMUNICATIONS & SECURITY S.A.S |
| SCB23521 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-260-0526
Technical Data | NSN 5935-00-260-0526
| Characteristic | Specifications |
|---|---|

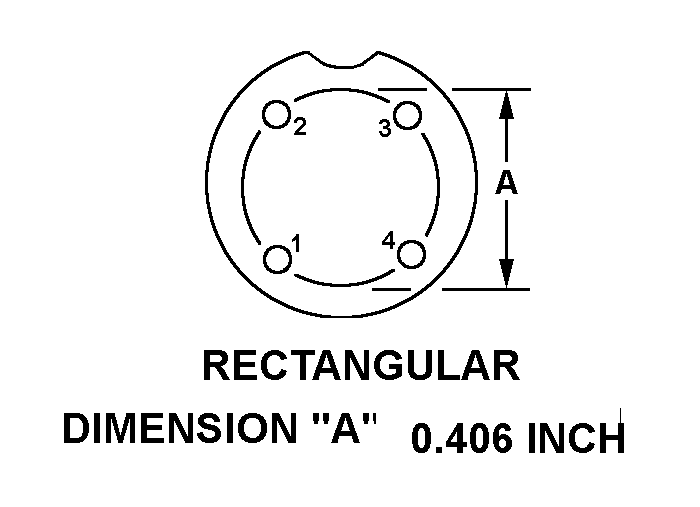

| CONTACT POSITION ARRANGEMENT STYLE | 405A RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER |

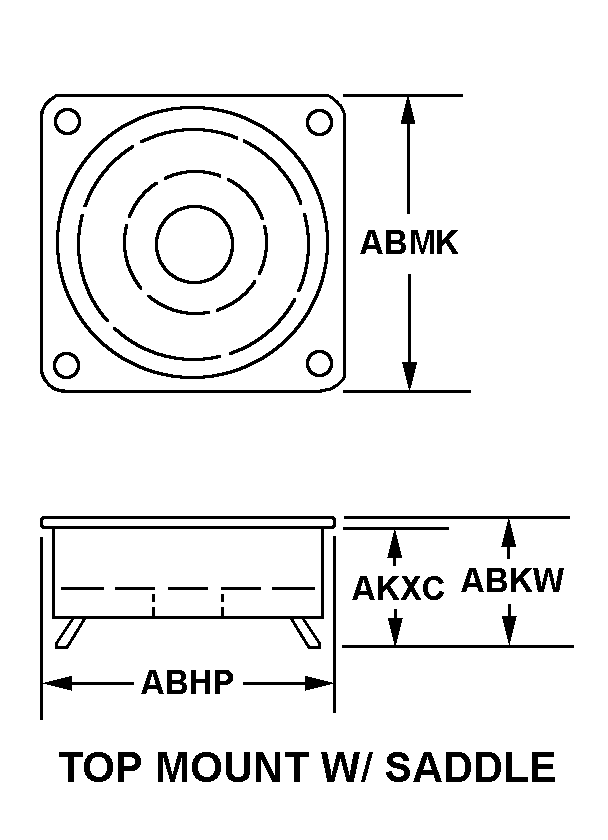

| BODY STYLE | 56B TOP MOUNT W/SADDLE |
| OVERALL LENGTH | 0.624 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| OVERALL WIDTH | 0.624 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.188 INCHES NOMINAL |
| BODY MATERIAL | MICA |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

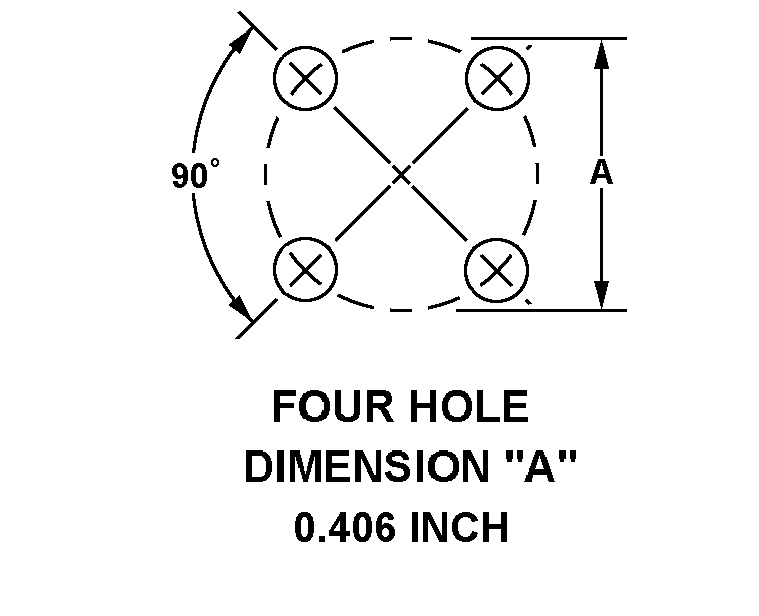

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 427E FOUR HOLE |
