NSN 5935-00-259-2599 220-1152-00, 2201152000, 220-1152-000
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-259-2599 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 220-1152-00, 2201152000, 220-1152-000, 5935-00-259-2599, 00-259-2599, 5935002592599, 220115200, 002592599
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-259-2599 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-259-2599
Cross Reference | NSN 5935-00-259-2599
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111-19-21-031 | 71785 | CINCH CONNECTORS, INC. |
| 147-840 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 220-1152-00 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| 220-1152-00 | 71785 | CINCH CONNECTORS, INC. |
| 220-1152-00 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
| 220-1152-00 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 220-1152-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 220-1152-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 241BC | 04156 | ELCO MFG CO |
| 241BC | 91662 | AVX CORPORATION |
| 53C12636 | 71785 | CINCH CONNECTORS, INC. |
| 53C13130 | 71785 | CINCH CONNECTORS, INC. |
| 5935002015979 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 750-0900 | 01364 | ALLIED ELECTRONICS INC SUB OF HALL-MARK ELECTRONICS CORP |
| 7AM1 | 71785 | CINCH CONNECTORS, INC. |
| 7JCN2 | 71785 | CINCH CONNECTORS, INC. |
| 8248190 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 9727-2 | 72825 | EBY HOLDING COMPANY, INC. DBA EBY COMPANY |
| 9B87124 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| B7411554G1 | 09214 | GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT |
| M12883-08-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M12883-18-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M12883/8-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-12883/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS91512-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SM155-125 | 95354 | METHODE ELECTRONICS INC. DBA NETWORK BUSS PRODUCTS |
| TS102C02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-259-2599
Technical Data | NSN 5935-00-259-2599
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 700A MINIATURE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER OR PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | SILVER |

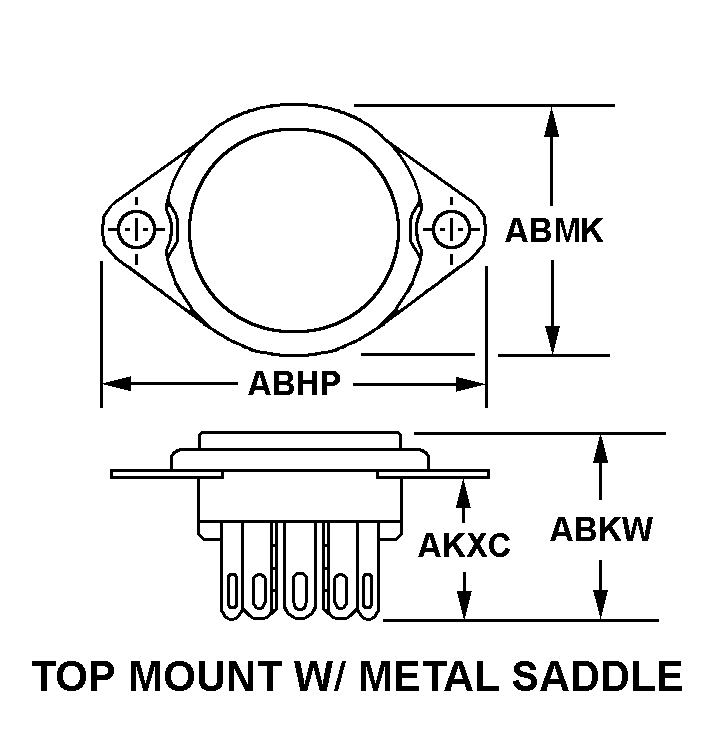

| BODY STYLE | 1B TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.125 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.750 INCHES MAXIMUM |
| OVERALL WIDTH | 0.812 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.531 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |

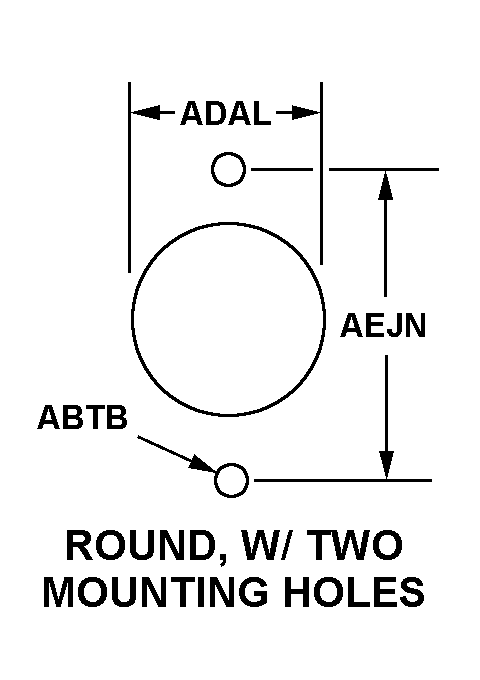

| MOUNTING HOLE STYLE | 8D ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
| III CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 500.0 AC AND 500.0 DC |
| III SADDLE MATERIAL | BRASS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.007 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-259-2599
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
