NSN 5935-00-258-2703 VT41SDG, VT41SMG, 9220672
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-258-2703 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: VT41SDG, VT41SMG, 9220672, 922067-2, 5935-00-258-2703, 00-258-2703, 5935002582703, 002582703
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-258-2703 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-258-2703
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-258-2703
Technical Data | NSN 5935-00-258-2703
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 17G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.620 INCHES NOMINAL |
| OVERALL WIDTH | 0.440 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.312 INCHES NOMINAL |
| THREADED DEVICE TYPE | MOUNTING STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| MATING END QUANTITY | 1 |

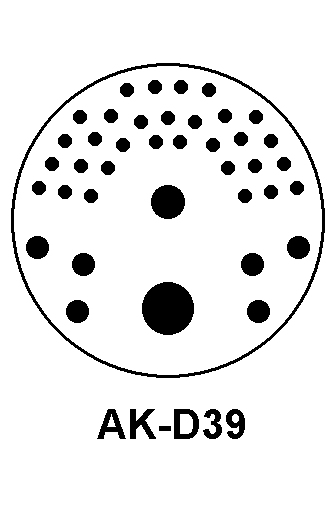

| CONTACT POSITION ARRANGEMENT STYLE | BRAC AK-D39 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC MELAMINE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MME MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 41 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER AND GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.041 GOLD GRAINS, TROY AND 0.041 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND CONTACT SURFACE SILVER |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 922067-2 |
Restrictions/Controls & Freight Information | NSN 5935-00-258-2703
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
