NSN 5935-00-249-5206 WM17P4E9L, 26022435, 2602243-5
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-249-5206 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WM17P4E9L, 26022435, 2602243-5, 5935-00-249-5206, 00-249-5206, 5935002495206, 002495206
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 NOV 1969 | 00-249-5206 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

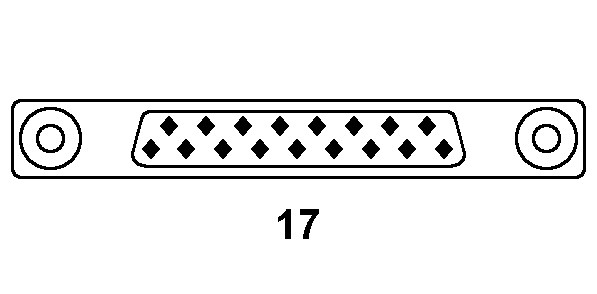

Drawings & Photos | NSN 5935-00-249-5206
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-249-5206
Technical Data | NSN 5935-00-249-5206
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 21Q RIGHT ANGLE TYPE |
| OVERALL LENGTH | 2.719 INCHES NOMINAL |
| OVERALL HEIGHT | 0.720 INCHES NOMINAL |
| OVERALL WIDTH | 0.600 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.375 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND IRIDIUM |
| POLARIZATION METHOD | MATING END |
| SHELL GUIDE TYPE AND LOCATION DESIGNATOR | L PIN |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ATAV 17 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MDG MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 17 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 725.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | SIDE SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.017 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 30003 |
| MFR SOURCE CONTROLLING REFERENCE | 2602243-5 |
