NSN 5935-00-229-5663 V825005P3, V82-5005P3, 12079
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-229-5663 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: V825005P3, V82-5005P3, 12079, 5935-00-229-5663, 00-229-5663, 5935002295663, 002295663
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-229-5663 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

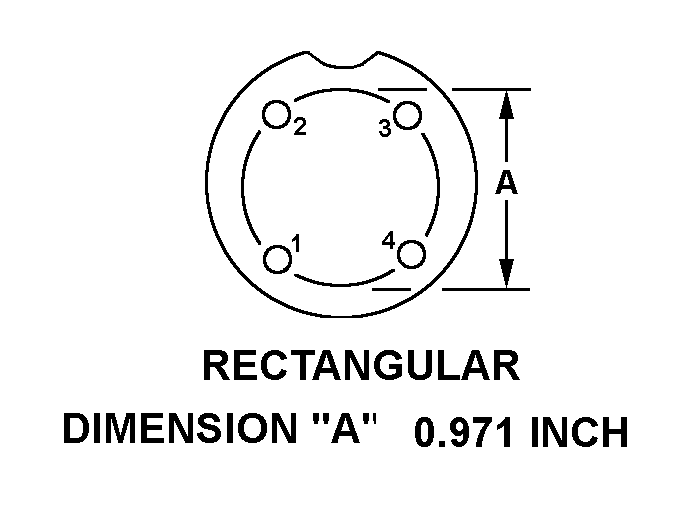

Drawings & Photos | NSN 5935-00-229-5663
Cross Reference | NSN 5935-00-229-5663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12079 | 74545 | HUBBELL INC WIRING DEVICE DIV |
| 122-234-200 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 2340 | 74970 | VIKING TECHNOLOGIES, LTD. |
| 589642-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 727825 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| ES0678078-1 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| ES0678078-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| ES0678078-1 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| ES0678078-1 | 70408 | AT AND T CORP |
| V82-5005P3 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| V82-5005P3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
