Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-00-206-1400 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Part Alternates: K300112, V88/1FA11-80, V881FA1180, VB81FA1180, VB8-1FA11-80, 13211E4828, 69658, 69-658, 5935-00-206-1400, 00-206-1400, 5935002061400, 002061400

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 13 APR 1973 00-206-1400

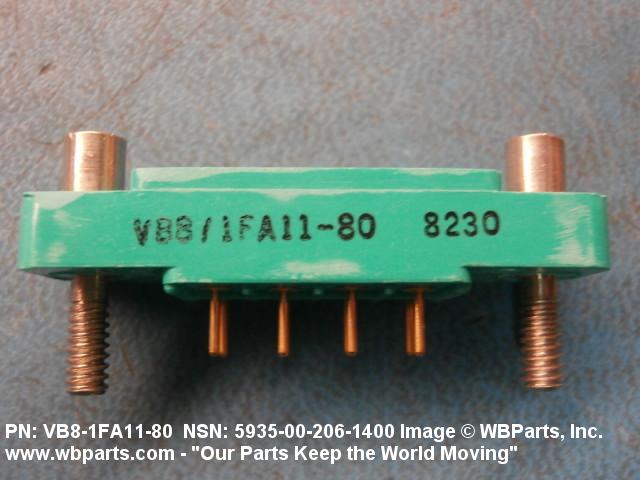

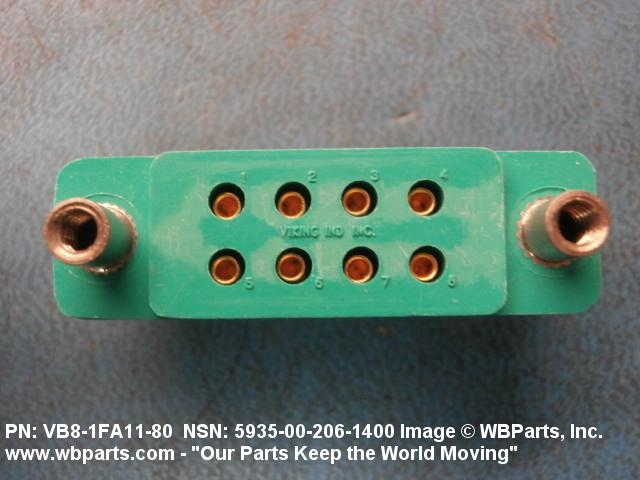

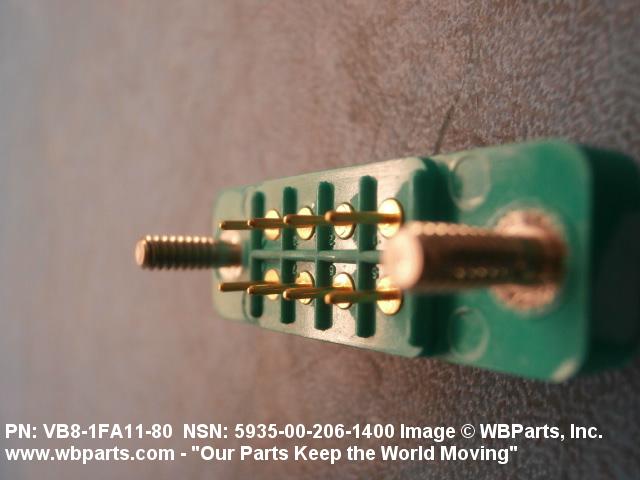

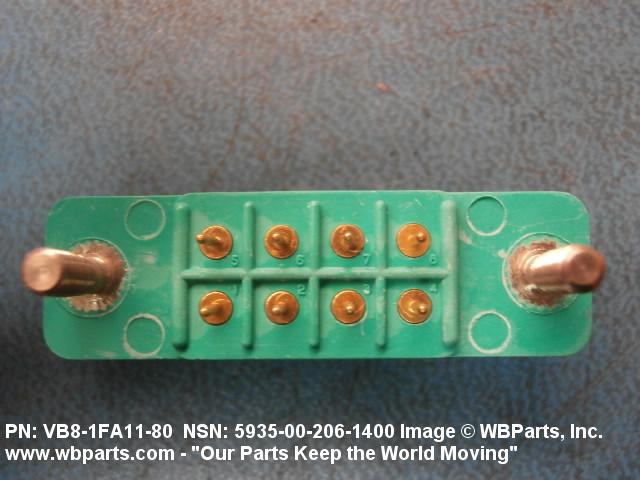

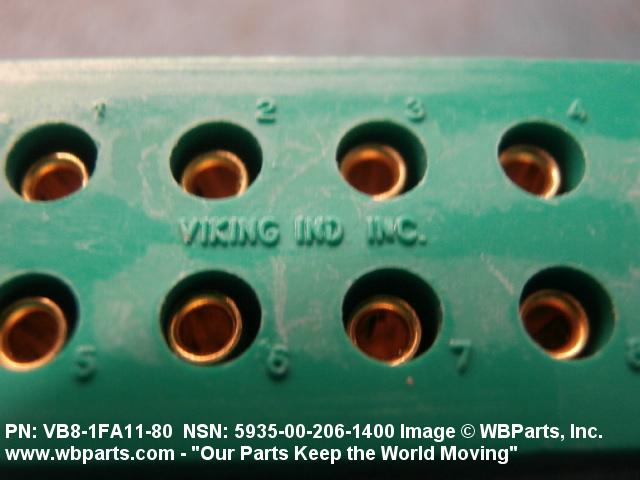

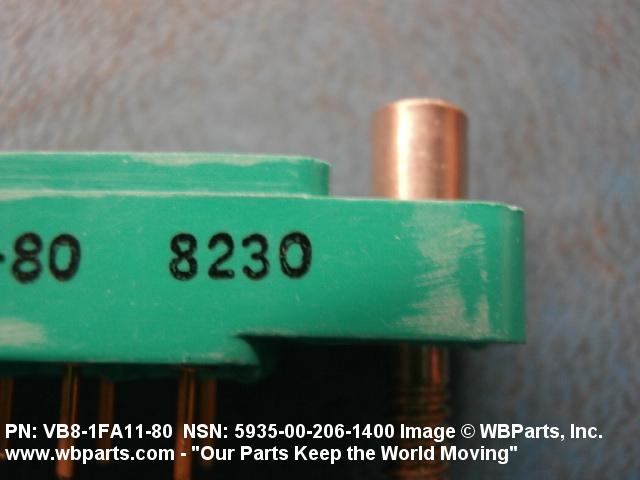

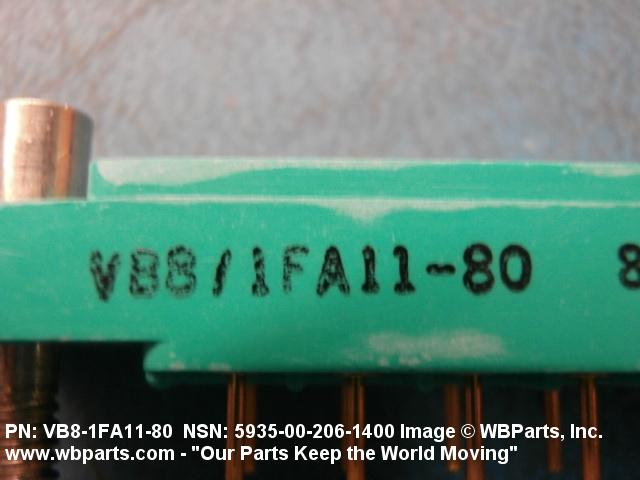

Drawings & Photos | NSN 5935-00-206-1400


Demand History | NSN 5935-00-206-1400

Part Number Request Date QTY Origin
5935-00-206-1400 2016-09-250 40 Saudi Arabia
VB81FA1180 2016-07-195 100 SA
5935-00-206-1400 2016-02-48 13 DIBBS
VB81FA1180 2016-02-35 400 US
5935-00-206-1400 2016-02-34 13 DIBBS
5935-00-206-1400 2015-11-322 32 US
69658 2014-06-161 1 Malaysia
69658 2014-01-02 1 Malaysia
VB81FA1180 2011-12-335 100 US
5935-00-206-1400 2011-11-307 15 Taiwan
VB81FA1180 2011-06-161 15 US
VB81FA1180 2011-06-161 39 us
5935-00-206-1400 2011-04-109 14 DIBBS
5935-00-206-1400 2010-09-267 45 US
5935-00-206-1400 2009-10-278 26 DIBBS
5935-00-206-1400 2006-02-56 22 DIBBS

Cross Reference | NSN 5935-00-206-1400

Part Number Cage Code Manufacturer
13211E4828 97403 CECOM LR CENTER
69-658 30554 DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
K300112 75377 KURZ & ROOT GENERATOR COMPANY LLC
V88/1FA11-80 05574 VIKING ELECTRONICS, INC. DIV VIKING
VB8-1FA11-80 05574 VIKING ELECTRONICS, INC. DIV VIKING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-206-1400

Technical Data | NSN 5935-00-206-1400

Characteristic Specifications
CONTACT POSITION ARRANGEMENT STYLE 802A DUAL IN LINE
ACCOMMODATED CONTACT QUANTITY 8
CONTACT MAXIMUM CURRENT RATING IN AMPS 10.0
CONTACT MATERIAL COPPER ALLOY
CONTACT SURFACE TREATMENT GOLD AND SILVER

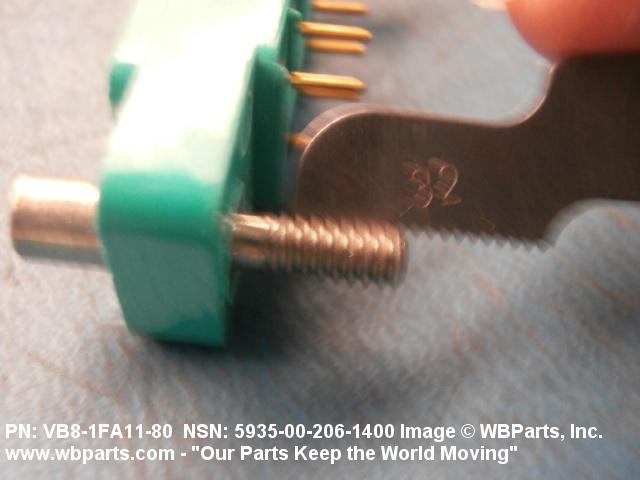

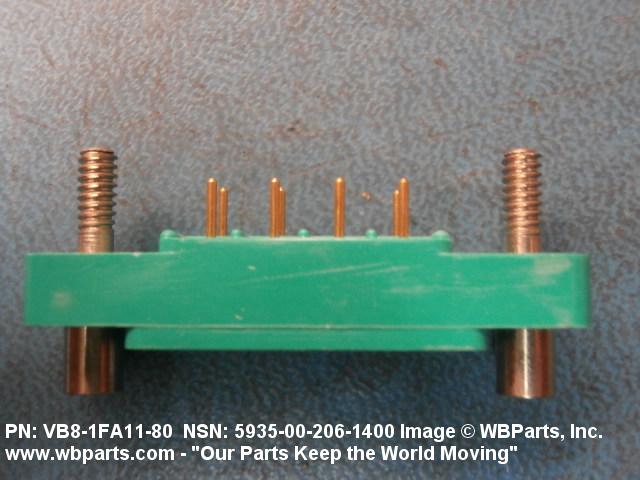

BODY STYLE 53B TOP MOUNT W/STUDS

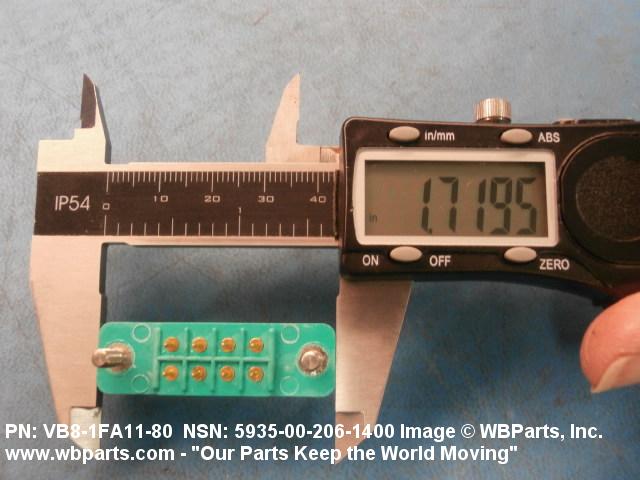

OVERALL LENGTH 1.706 INCHES NOMINAL

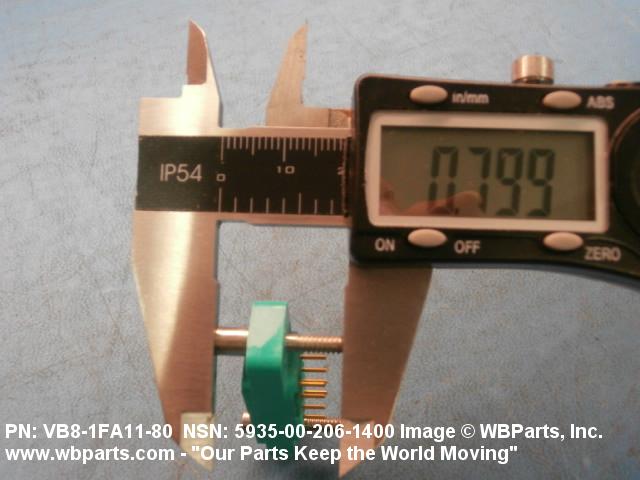

OVERALL HEIGHT 0.795 INCHES MINIMUM AND 0.805 INCHES MAXIMUM

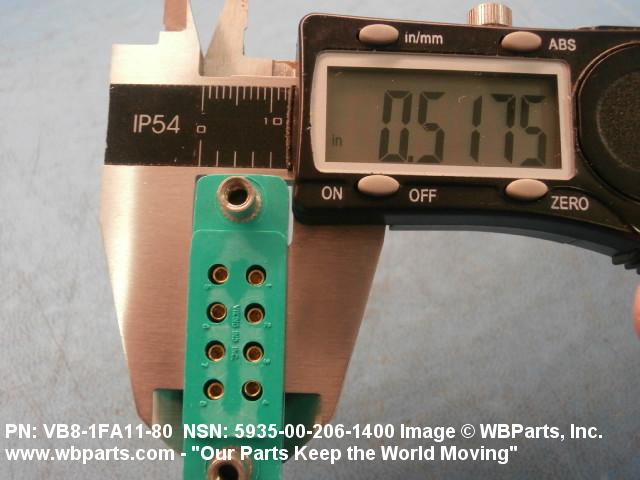

OVERALL WIDTH 0.520 INCHES NOMINAL

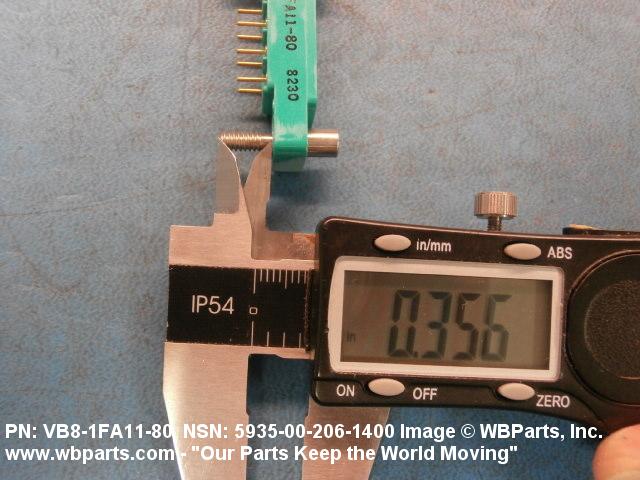

PROJECTION LENGTH BELOW MOUNTING SURFACE 0.359 INCHES NOMINAL
BODY MATERIAL PLASTIC
TERMINAL TYPE AND QUANTITY 8 TAB, SOLDER LUG
MOUNTING TYPE FOR WHICH DESIGNED CHASSIS

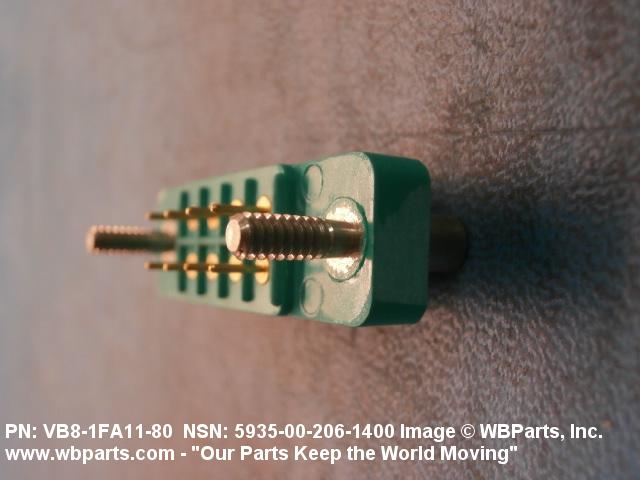

MOUNTING METHOD THREADED STUD
MOUNTING HOLE STYLE 27D RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS

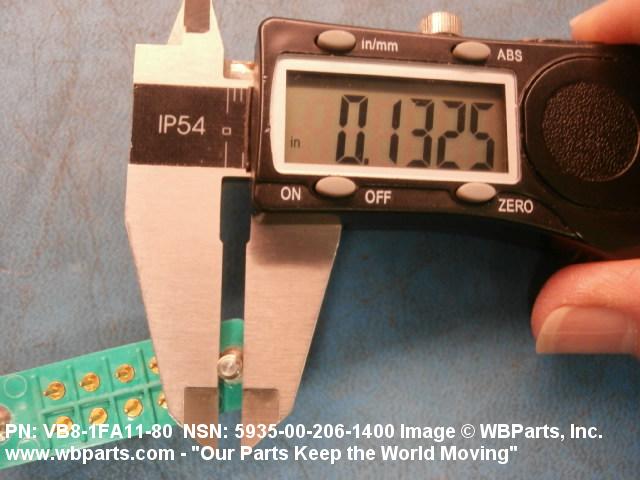

MOUNTING HOLE DIAMETER 0.138 INCHES MINIMUM
BODY MOUNTING HOLE ACCOMMODATION LENGTH 1.075 INCHES NOMINAL
BODY MOUNTING HOLE ACCOMMODATION WIDTH 0.520 INCHES NOMINAL

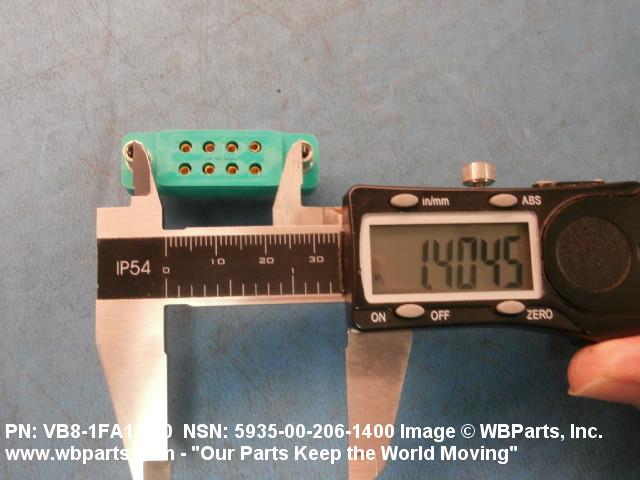

DISTANCE BETWEEN MOUNTING FACILITY CENTERS 1.401 INCHES MINIMUM AND 1.411 INCHES MAXIMUM
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.138 INCHES
THREAD CLASS 2A
THREAD QUANTITY PER INCH 32
THREAD DIRECTION RIGHT-HAND
FURNISHED ITEMS AND QUANTITY 2 FLAT WASHER AND 2 LOCK WASHER AND 2 NUT
III PRECIOUS MATERIAL GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
