NSN 5935-00-201-9480 46B20860, 88375041, 8837504-1
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-201-9480 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 46B20860, 88375041, 8837504-1, 5935-00-201-9480, 00-201-9480, 5935002019480, 002019480
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-201-9480 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-201-9480
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-201-9480
Technical Data | NSN 5935-00-201-9480
| Characteristic | Specifications |
|---|---|

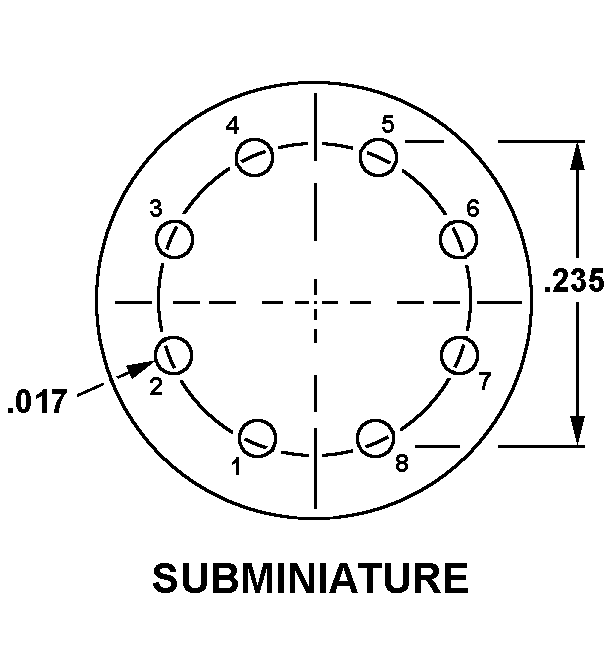

| CONTACT POSITION ARRANGEMENT STYLE | 804A SUBMINIATURE |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER |

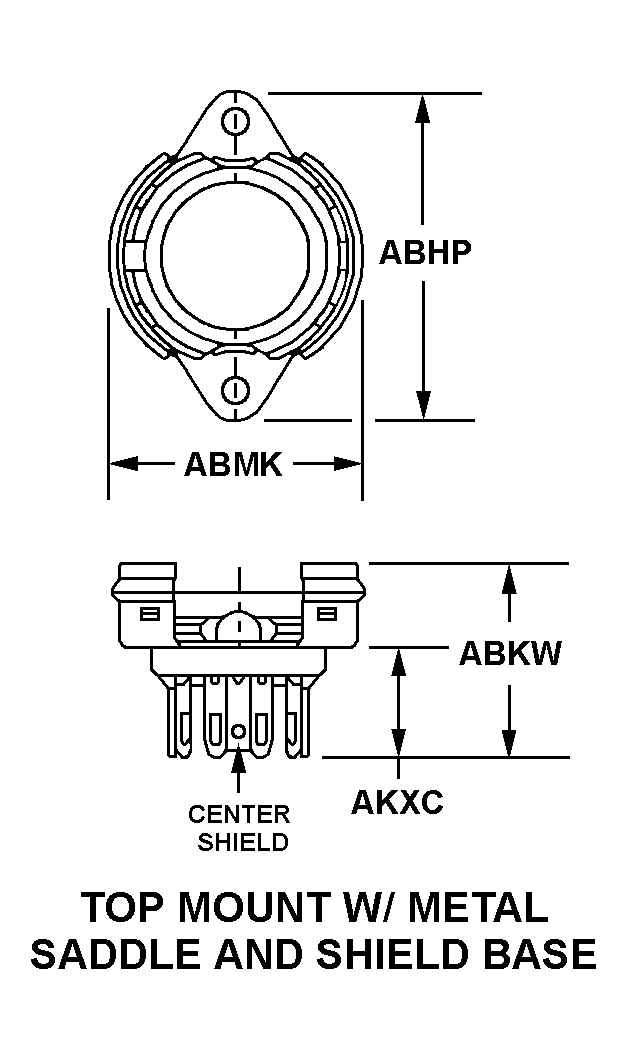

| BODY STYLE | 5B TOP MOUNT W/METAL SADDLE AND SHIELD BASE |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.593 INCHES NOMINAL |
| OVERALL WIDTH | 0.562 INCHES MAXIMUM |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.172 INCHES NOMINAL |
| BODY MATERIAL | MICA |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |

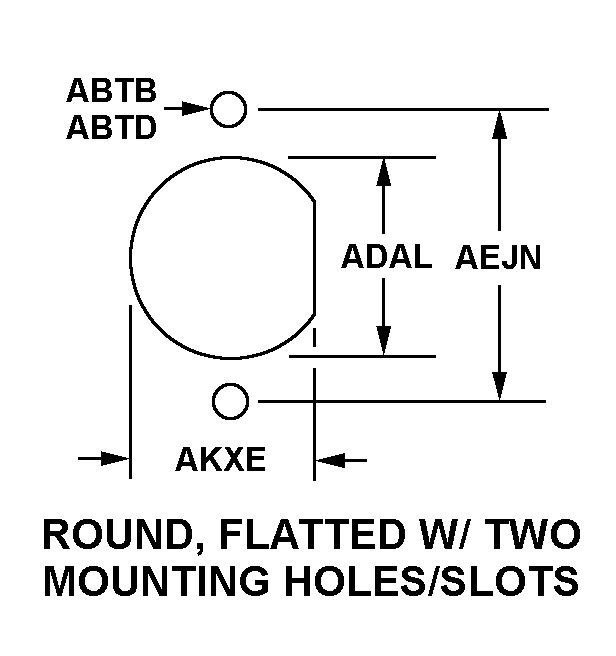

| MOUNTING HOLE STYLE | 2D ROUND, FLATTED W/TWO MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.094 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.360 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.562 INCHES NOMINAL |
| DISTANCE FROM FLATTED PORTION TO OPPOSITE SURFACE | 0.330 INCHES NOMINAL |
| COMPONENT SHIELD MOUNTING METHOD | FORCE FIT |
| POLARIZATION TYPE | CONTACT POSITION |
| FEATURES PROVIDED | CENTER SHIELD |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III FABRICATION METHOD | MOLDED |
| III BASE SHIELD MATERIAL | BRASS |
| III BASE SHIELD SURFACE TREATMENT | NICKEL |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 21921 |
| DESIGN CONTROL REFERENCE | 8837504-1 |
