NSN 5935-00-199-6670 D42326, D-42326, 00-199-6670
Product Details | TELEPHONE JACK
5935-00-199-6670 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: D42326, D-42326, 5935-00-199-6670, 00-199-6670, 5935001996670, 001996670
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-199-6670 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-199-6670
Cross Reference | NSN 5935-00-199-6670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D-42326 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-199-6670
Related Products | NSN 5935-00-199-6670
Technical Data | NSN 5935-00-199-6670
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD ALL FINGERS |
| FINGER ACCOMMODATION DIAMETER | 0.090 INCHES NOMINAL ALL FINGERS |
| FINGER ACCOMMODATION LENGTH | 0.516 INCHES NOMINAL ALL FINGERS |

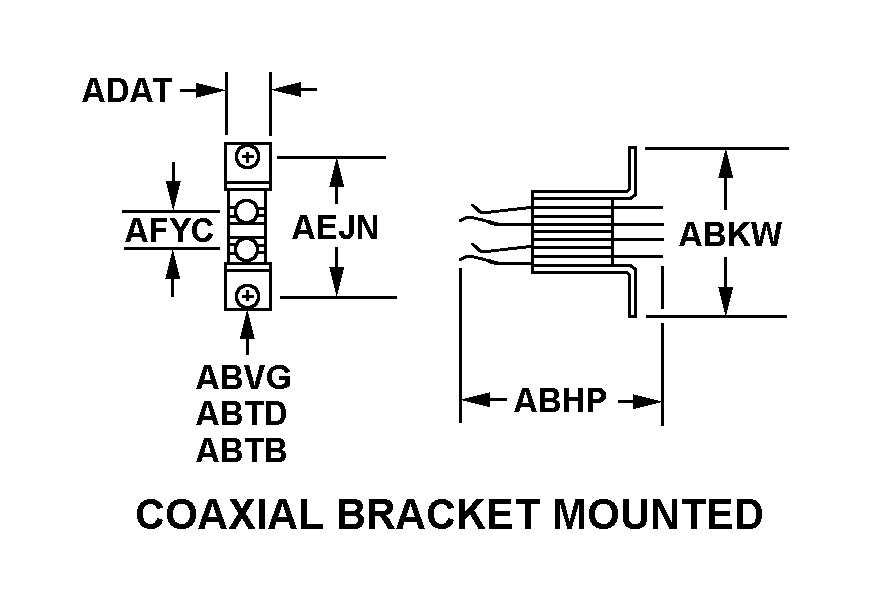

| BODY STYLE | 34 COAXIAL BRACKET MOUNTED |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| BODY WIDTH | 1.625 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.313 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FINGER ACCOMMODATIONS | 0.281 INCHES NOMINAL |
| JACK CONTACT ARRANGEMENT DESIGNATOR | J1-2A |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 36 |
| THREAD DIRECTION | RIGHT-HAND |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | ANY ACCEPTABLE BODY ANY ACCEPTABLE CONTACT STEEL SPRING STEEL TERMINAL |
| SURFACE TREATMENT | ANY ACCEPTABLE SPRING ANY ACCEPTABLE TERMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
