NSN 5935-00-193-4680 TJT120, 7180100, 00-193-4680
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-193-4680 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: TJT120, 7180100, 5935-00-193-4680, 00-193-4680, 5935001934680, 001934680
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1970 | 00-193-4680 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

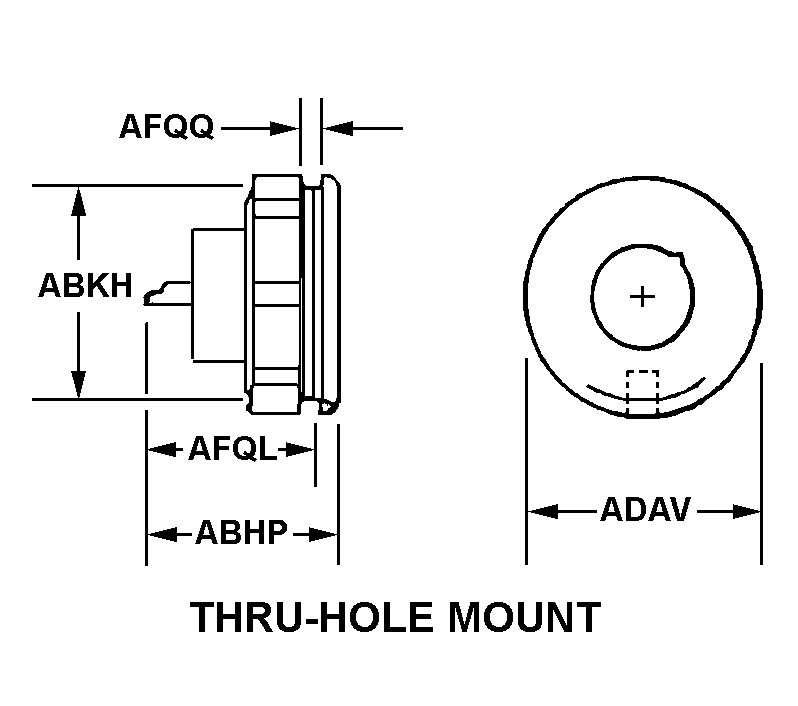

Drawings & Photos | NSN 5935-00-193-4680
Demand History | NSN 5935-00-193-4680
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TJT120 | 2021-11-305 | 50 | United States |
| 5935-00-193-4680 | 2020-05-140 | 23 | United States |
| TJT120 | 2018-10-292 | 12 | United States |
| 5935-00-193-4680 | 2013-07-212 | 391 | DIBBS |
| 5935-00-193-4680 | 2012-09-269 | 196 | DIBBS |
| 5935-00-193-4680 | 2012-02-39 | 94 | DIBBS |
| 5935-00-193-4680 | 2009-04-117 | 171 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-193-4680
Related Products | NSN 5935-00-193-4680
Technical Data | NSN 5935-00-193-4680
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3J THRU-HOLE MOUNT |
| OVERALL LENGTH | 1.126 INCHES NOMINAL |
| BUSHING DIAMETER | 0.690 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.725 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO REAR FACE | 1.048 INCHES NOMINAL |
| MOUNTING FACILITY THICKNESS | 0.062 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | FRICTION |
| THREADED DEVICE TYPE | MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.688 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 24 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.250 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC PHENOLIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | NICKEL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | TAB, SOLDER LUG SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
