NSN 5935-00-192-4856 M641/16-3, M641163, MIL-J-641/16
Product Details | TELEPHONE JACK
5935-00-192-4856 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: M641/16-3, M641163, MIL-J-641/16, MILJ64116, JJ107, 3600448010, 360-0448-010, 5935-00-192-4856, 00-192-4856, 5935001924856, 001924856
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-192-4856 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-192-4856
Cross Reference | NSN 5935-00-192-4856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 360-0448-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| JJ107 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JJ107 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| M641/16-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-J-641/16 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-192-4856
Related Products | NSN 5935-00-192-4856
Technical Data | NSN 5935-00-192-4856
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TWO CONDUCTOR, ROUND TIP SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.252 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 1.015 INCHES NOMINAL SINGLE FINGER |

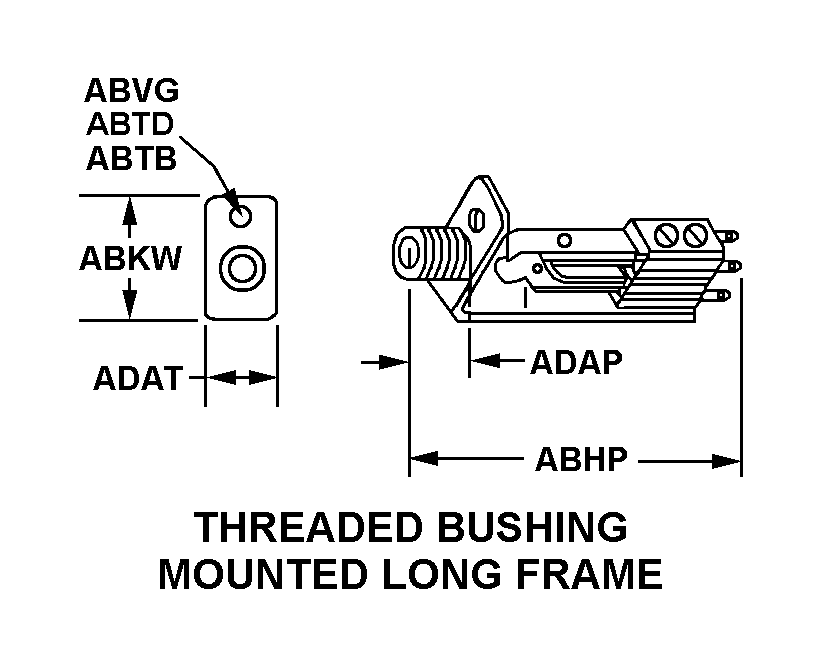

| BODY STYLE | 23 THREADED BUSHING MOUNTED LONG FRAME |
