NSN 5935-00-154-0338 4169970, 4663591, 466359-1
Product Details | PLUG-IN ELECTRONIC COMPON SOCKET
5935-00-154-0338 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 4169970, 4663591, 466359-1 , 530-501-006, 60037404, 600374-04, 78G3090, 80041G235, 8004-1G23-5, 8004IG17, 5935-00-154-0338, 00-154-0338, 5935001540338, 061169004, 530501006, 001540338
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 OCT 1971 | 00-154-0338 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-154-0338
Cross Reference | NSN 5935-00-154-0338
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 061169004 | 92110 | SERVO CORPORATION OF AMERICA |
| 4169970 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 466359-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 466359-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 530-501-006 | C3141 | ELETTRONICA GMBH |
| 600374-04 | 09017 | EDO |
| 78G3090 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
| 8004-1G23-5 | 00779 | TYCO ELECTRONICS CORPORATION |
| 8004-1G23-5 | 91506 | AUGAT INC |
| 8004IG17 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-154-0338
Related Products | NSN 5935-00-154-0338
Technical Data | NSN 5935-00-154-0338
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 202A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |

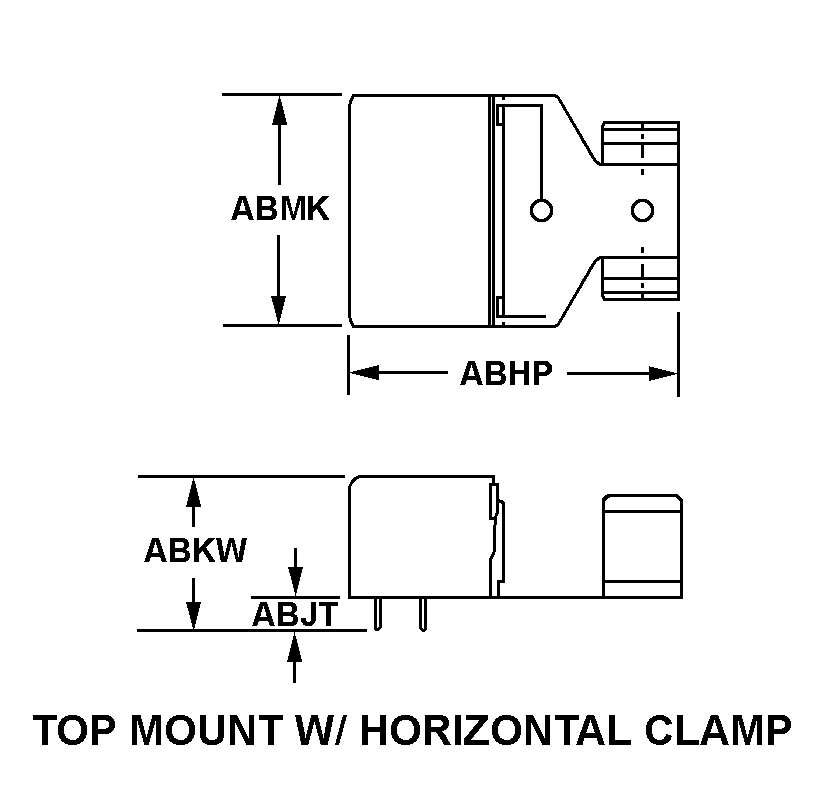

| BODY STYLE | 63B TOP MOUNT W/HORIZONTAL CLAMP |
| OVERALL LENGTH | 0.897 INCHES NOMINAL |
| TERMINAL LENGTH | ANY ACCEPTABLE |
| OVERALL HEIGHT | 0.453 INCHES NOMINAL |
| OVERALL WIDTH | 0.484 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.200 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 98738 |
| DESIGN CONTROL REFERENCE | 78G3090 |
