NSN 5935-00-114-9817 TS1232101, TS123-210-1, 1232101
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-114-9817 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: TS1232101, TS123-210-1, 1232101, 123-210-1, 5935-00-114-9817, 00-114-9817, 5935001149817, 001149817
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1968 | 00-114-9817 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-114-9817
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-114-9817
Technical Data | NSN 5935-00-114-9817
| Characteristic | Specifications |
|---|---|

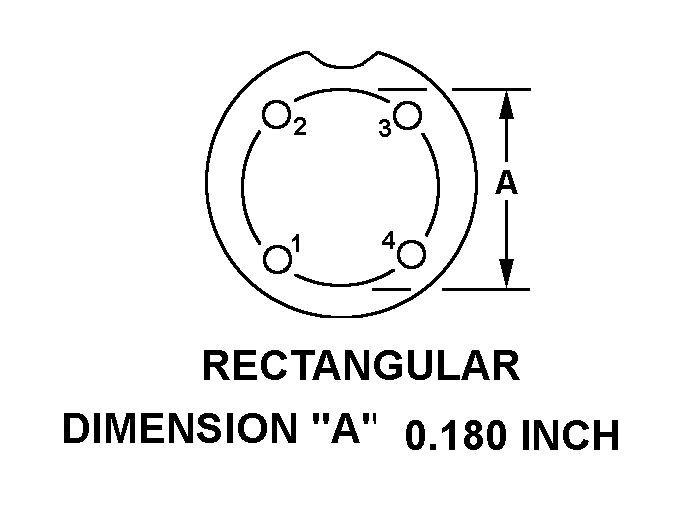

| CONTACT POSITION ARRANGEMENT STYLE | 410A RECTANGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 200.0 |
| CONTACT MATERIAL | COPPER ALLOY |

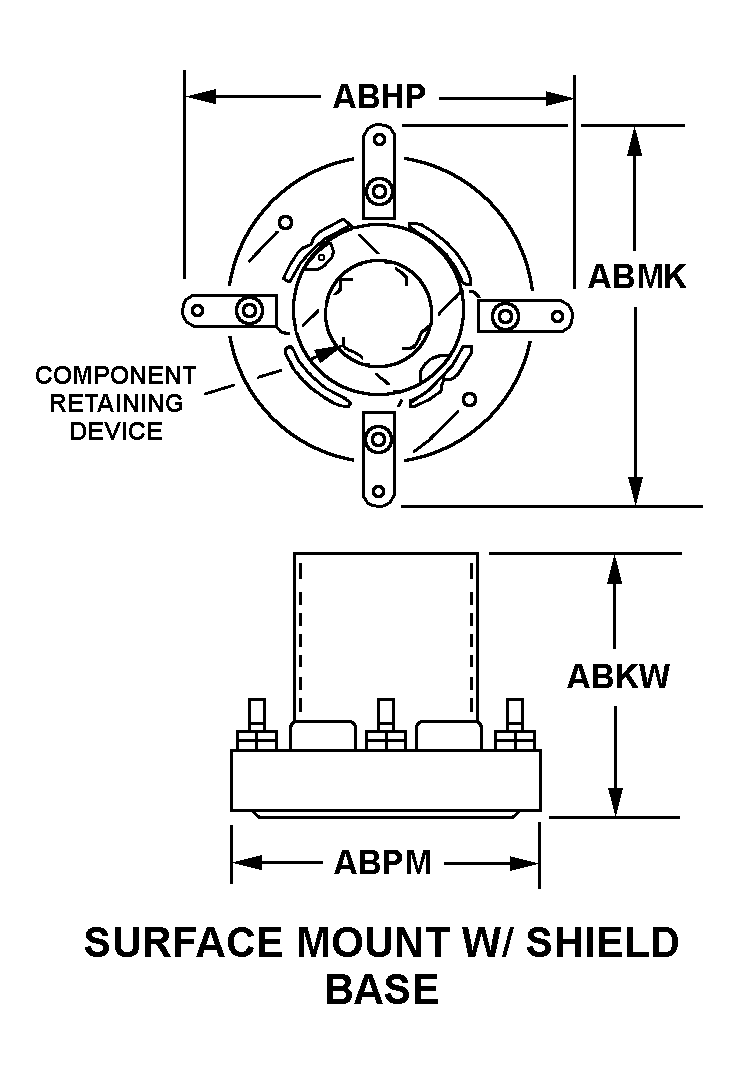

| BODY STYLE | 31B SURFACE MOUNT W/SHIELD BASE |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OVERALL HEIGHT | 2.041 INCHES MINIMUM AND 2.081 INCHES MAXIMUM |
| OVERALL WIDTH | ANY ACCEPTABLE |
| BODY DIAMETER | 2.450 INCHES MINIMUM AND 2.550 INCHES MAXIMUM |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.178 INCHES MINIMUM AND 0.182 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.288 INCHES MINIMUM AND 2.336 INCHES MAXIMUM |
| COMPONENT SHIELD MOUNTING METHOD | BAYONET |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III FABRICATION METHOD | MOLDED |
Restrictions/Controls & Freight Information | NSN 5935-00-114-9817
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-114-9817
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
