NSN 5935-00-114-8768 MS90557C32412S, RC07GF821J, MILC22992

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-114-8768 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS90557C32412S, RC07GF821J, MILC22992, 5935-00-114-8768, 00-114-8768, 5935001148768, 001148768

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	23 MAR 1973	00-114-8768	01938 ( CONNECTOR, PLUG, ELECTRICAL )

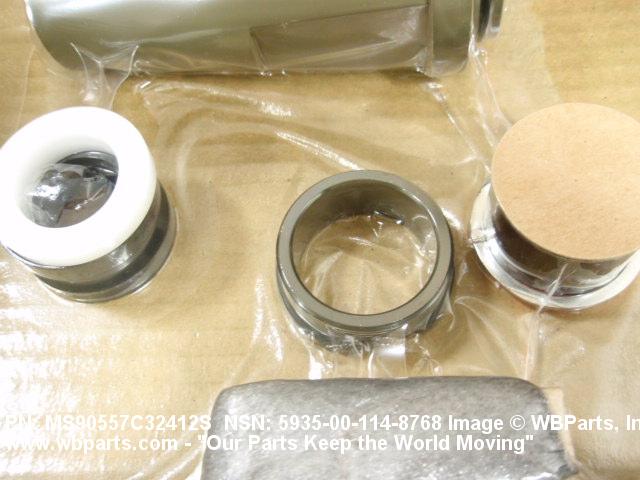

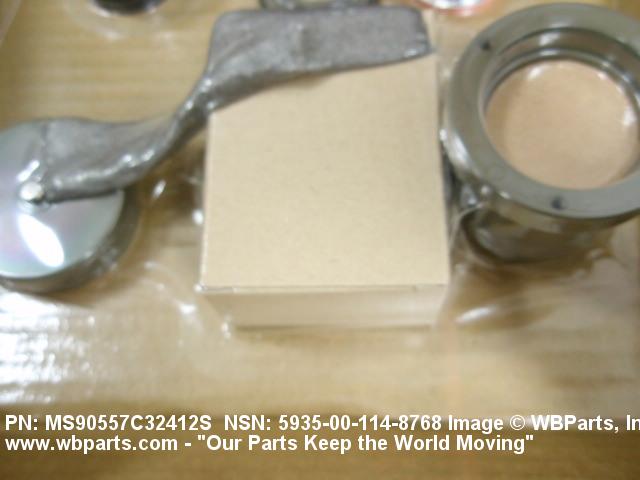

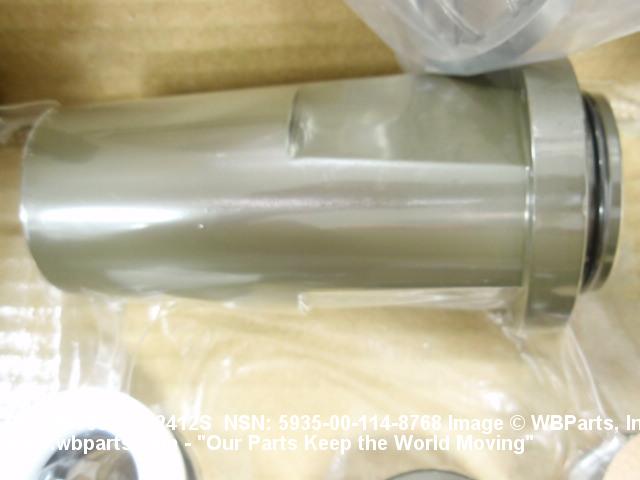

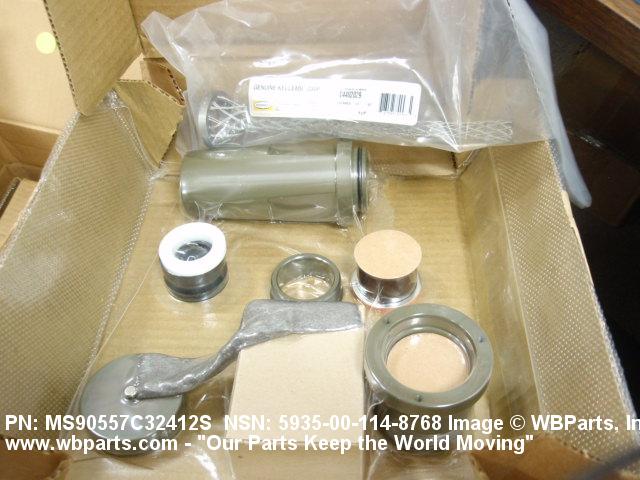

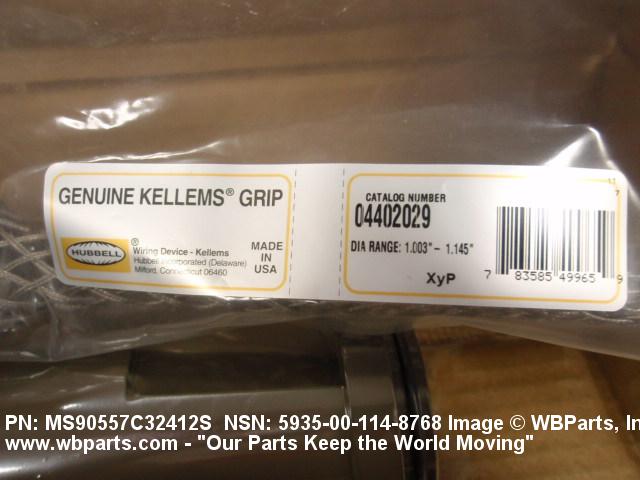

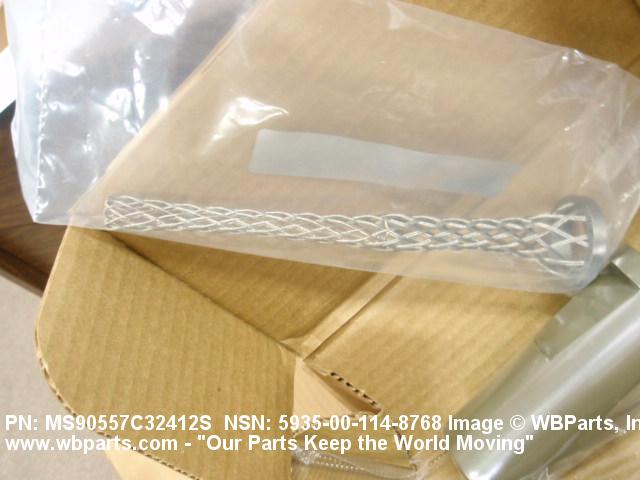

Drawings & Photos | NSN 5935-00-114-8768

Part Number	Request Date	QTY	Origin
5935-00-114-8768	2023-01-31	48	Korea
5935-00-114-8768	2023-01-31	140	Korea
5935-00-114-8768	2023-01-30	48	Korea
5935-00-114-8768	2020-10-294	291	DIBBS
5935-00-114-8768	2020-05-147	1	DIBBS-RFPs
5935-00-114-8768	2020-02-44	10	United States
MS90557C32412S	2019-09-254	1	US
MS90557C32412S	2019-09-254	1	US
5935-00-114-8768	2019-06-155	1	United States
5935-00-114-8768	2019-05-136	363	DIBBS
5935-00-114-8768	2019-03-73	101	DIBBS
5935-00-114-8768	2018-12-361	30	DIBBS
5935-00-114-8768	2018-11-305	74	DIBBS
5935-00-114-8768	2018-08-238	19	DIBBS
5935-00-114-8768	2017-05-142	400	DIBBS
5935-00-114-8768	2017-05-130	400	DIBBS
5935-00-114-8768	2017-03-75	375	DIBBS
5935-00-114-8768	2017-03-64	375	DIBBS
5935-00-114-8768	2016-04-102	2	DIBBS
5935-00-114-8768	2015-10-286	71	DIBBS
5935-00-114-8768	2015-08-225	1	DIBBS-RFPs
5935-00-114-8768	2012-04-97	46	us
MS90557C32412S	2012-03-88	325	us
5935-00-114-8768	2011-06-165	178	DIBBS
5935-00-114-8768	2010-11-320	12	United States
5935-00-114-8768	2010-07-201	302	DIBBS
5935-00-114-8768	2010-05-140	210	DIBBS
MS90557C32412S	2010-04-95	6	United States
5935-00-114-8768	2007-04-113	447	DIBBS
5935-00-114-8768	2007-03-89	23	DIBBS
5935-00-114-8768	2007-01-27	2	DIBBS
5935-00-114-8768	2006-06-167	140	DIBBS

Cross Reference | NSN 5935-00-114-8768

Part Number	Cage Code	Manufacturer
MILC22992	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90557C32412S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RC07GF821J	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-114-8768

Compare

Related Products | NSN 5935-00-114-8768

5935-00-114-8833, 5935-00-114-8845, 5935-00-114-8847, 5935-00-114-8850, 5935-00-114-8857

Technical Data | NSN 5935-00-114-8768

Characteristic	Specifications
BODY STYLE	6A STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF
OVERALL LENGTH	8.156 INCHES MAXIMUM
DIAMETER	2.250 INCHES MINIMUM
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	ACME
NOMINAL THREAD SIZE	2.250 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	3
THREAD PITCH DIAMETERS	0.1261 TO 0.1428 INCHES
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	1.514 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	1.005 INCHES MINIMUM AND 1.130 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE OR MIL-C-26074 MIL SPEC 2ND TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	345.0
MATING END QUANTITY	1
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING 3 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS	40.0 SINGLE MATING END 1ST CONTACT GROUPING 60.0 SINGLE MATING END 2ND CONTACT GROUPING 40.0 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 1,CLASS MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-22992 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-22992 GOVERNMENT SPECIFICATION

Restrictions/Controls & Freight Information | NSN 5935-00-114-8768

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-114-8768

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
