NSN 5935-00-114-8833 MS90556C32412P, MILC22992, MIL-C-22992
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-114-8833 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS90556C32412P, MILC22992, MIL-C-22992, MILDTL22992, MIL-DTL-22992 , 5935-00-114-8833, 00-114-8833, 5935001148833, 001148833
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1973 | 00-114-8833 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

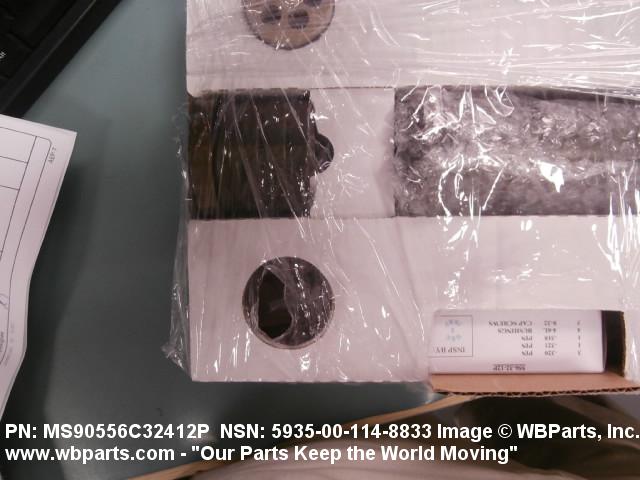

Drawings & Photos | NSN 5935-00-114-8833
Demand History | NSN 5935-00-114-8833
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-114-8833 | 2023-01-31 | 69 | Korea |
| 5935-00-114-8833 | 2020-05-147 | 1 | DIBBS-RFPs |
| 5935-00-114-8833 | 2019-03-66 | 749 | DIBBS |
| 5935-00-114-8833 | 2017-07-205 | 595 | DIBBS |
| 5935-00-114-8833 | 2017-07-205 | 378 | DIBBS |
| 5935-00-114-8833 | 2017-07-194 | 378 | DIBBS |
| 5935-00-114-8833 | 2017-07-193 | 595 | DIBBS |
| 5935-00-114-8833 | 2015-08-225 | 1 | DIBBS-RFPs |
| MS90556C32412P | 2014-06-164 | 1 | us |
| MS90556C32412P | 2013-12-343 | 2 | US |
| 5935-00-114-8833 | 2012-08-226 | 292 | DIBBS |
| 5935-00-114-8833 | 2012-07-202 | 10 | US |
| 5935-00-114-8833 | 2012-04-97 | 46 | us |
| MS90556C32412P | 2012-03-88 | 325 | us |
| MS90556C32412P | 2011-12-353 | 48 | United States |
| 5935-00-114-8833 | 2010-01-21 | 100 | United States |
| 5935-00-114-8833 | 2007-06-158 | 152 | DIBBS |
| 5935-00-114-8833 | 2007-04-108 | 146 | DIBBS |
| 5935-00-114-8833 | 2007-02-43 | 11 | DIBBS |
| 5935-00-114-8833 | 2007-01-29 | 121 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-114-8833
Related Products | NSN 5935-00-114-8833
Technical Data | NSN 5935-00-114-8833
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 8.188 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.562 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |
| NOMINAL THREAD SIZE | 2.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 7 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 1.005 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE OR MIL-C-26074 MIL SPEC 2ND TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 15.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AFBG 24-12 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING 3 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 40.0 SINGLE MATING END 1ST CONTACT GROUPING 60.0 SINGLE MATING END 2ND CONTACT GROUPING 60.0 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-22992 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-22992 GOVERNMENT SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5935-00-114-8833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
