NSN 5935-00-113-2413 H655-1310 PN 147, H6551310PN147, S010187119
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-113-2413 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: H655-1310 PN 147, H6551310PN147, S010187119, S0-1018-7119, GS806H1, P1288301601, P12883-016-01, 637981, 63798-1, 10545594-2, 1813439, 451116-835, 531-6985692 PN 147, 5316985692PN147, 53818921, 538189-21, 5935-00-113-2413, 00-113-2413, 5935001132413, 105455942, 451116835, 001132413
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 AUG 1968 | 00-113-2413 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-113-2413
Cross Reference | NSN 5935-00-113-2413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10545594-2 | 19200 | US ARMY ARDEC RDECOM |
| 1813439 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 451116-835 | 03743 | EGS ELECTRICAL GROUP APPLETON DIV |
| 531-6985692 PN 147 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 538189-21 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 63798-1 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
| GS806H1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| H655-1310 PN 147 | 96169 | ELECTRIC BOAT CORPORATION |
| P12883-016-01 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| S0-1018-7119 | 04801 | POWER PARAGON INC DBA POWER SYSTEMS GROUP |
| S0-1018-7119 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| S0-1018-7119 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-113-2413
Technical Data | NSN 5935-00-113-2413
| Characteristic | Specifications |
|---|---|

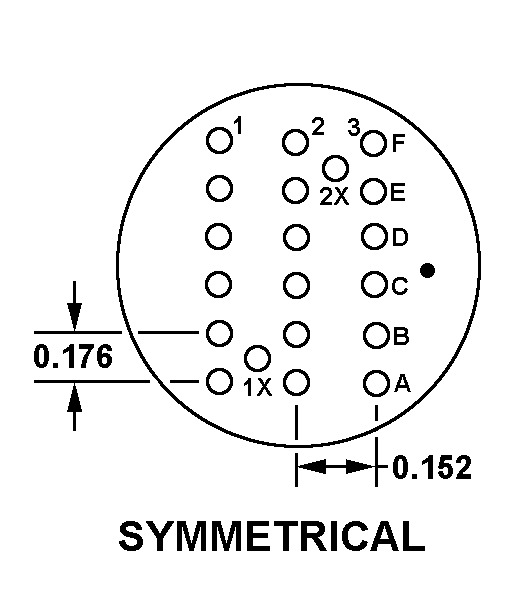

| CONTACT POSITION ARRANGEMENT STYLE | 2002A SYMMETRICAL |
| ACCOMMODATED CONTACT QUANTITY | 20 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |

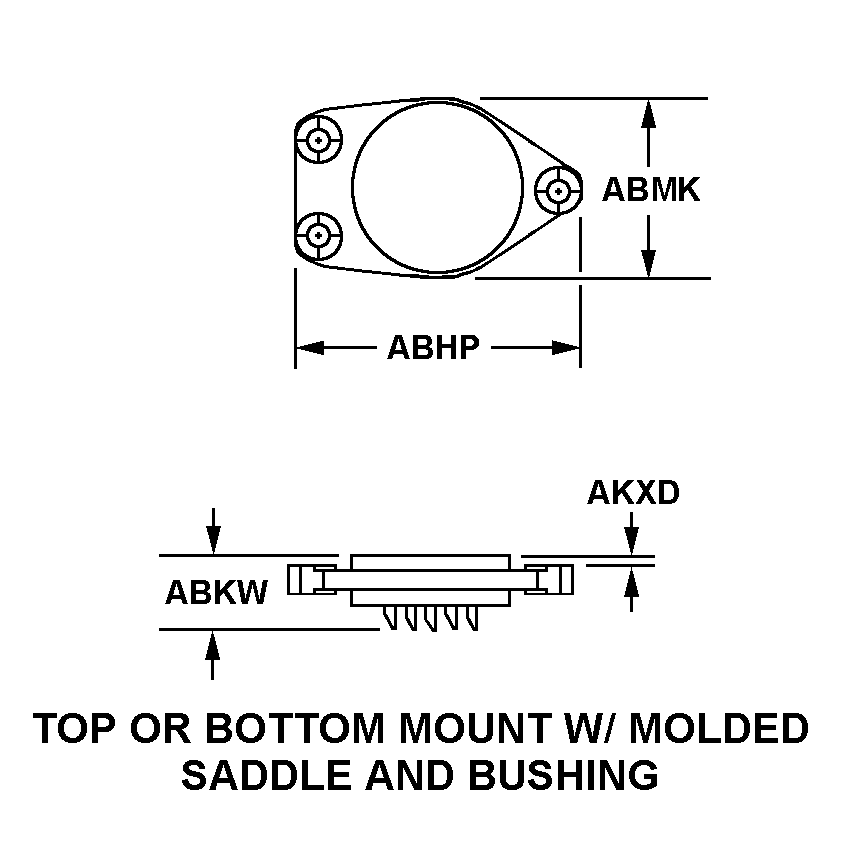

| BODY STYLE | 17B TOP OR BOTTOM MOUNT W/MOLDED SADDLE AND BUSHING |
| OVERALL LENGTH | 2.218 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.585 INCHES MAXIMUM |
| OVERALL WIDTH | 1.343 INCHES MAXIMUM |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.093 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 20 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |

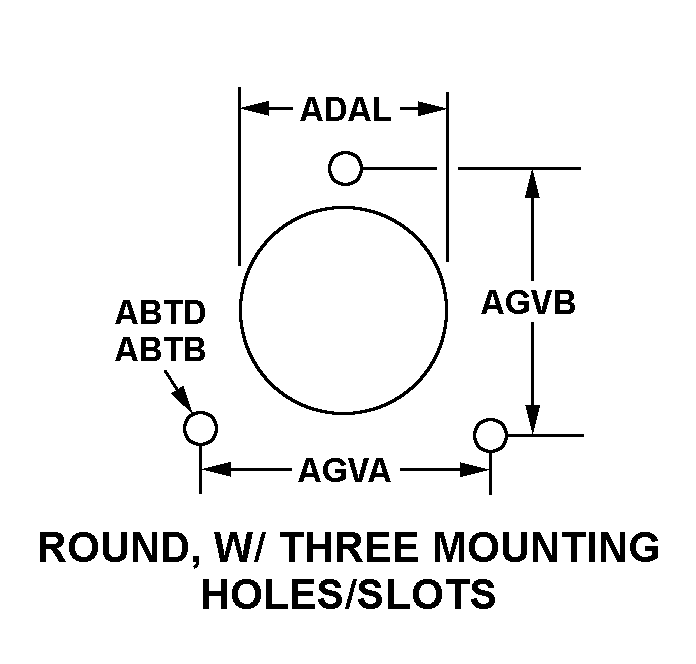

| MOUNTING HOLE STYLE | 14D ROUND, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.844 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| III SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-113-2413
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
