NSN 5935-00-112-4637 11PB, 2045111001, 204-51-11-001
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-112-4637 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 11PB, 2045111001, 204-51-11-001, 5935-00-112-4637, 00-112-4637, 5935001124637, 001124637
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 DEC 1972 | 00-112-4637 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-112-4637
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-112-4637
Technical Data | NSN 5935-00-112-4637
| Characteristic | Specifications |
|---|---|

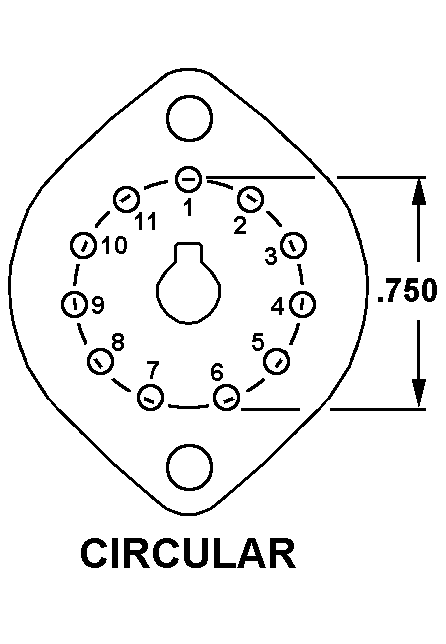

| CONTACT POSITION ARRANGEMENT STYLE | 1102A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 11 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | NICKEL |

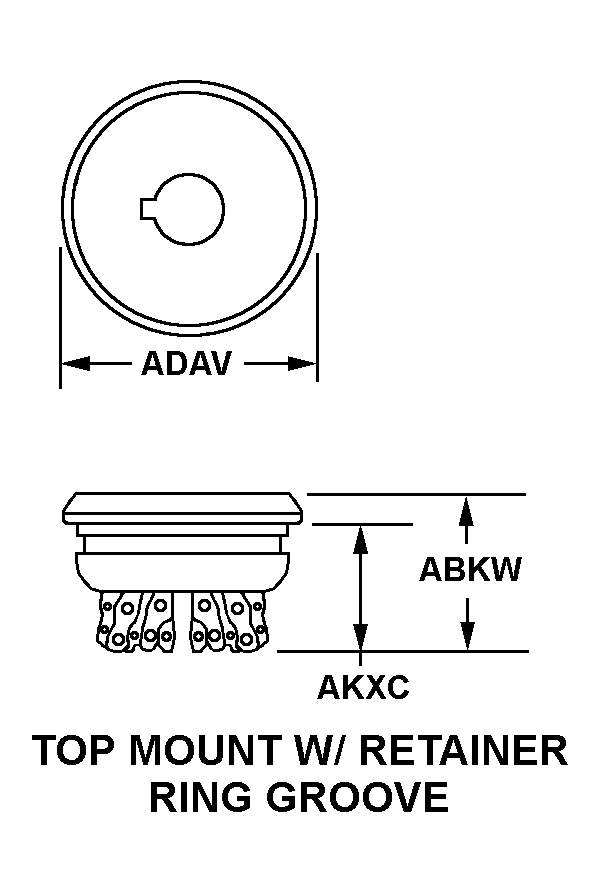

| BODY STYLE | 33B TOP MOUNT W/RETAINER RING GROOVE |
| OVERALL HEIGHT | 0.969 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.828 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 11 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RETAINER RING |
| MOUNTING HOLE STYLE | 1D ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.158 INCHES NOMINAL |
| POLARIZATION TYPE | CENTER KEY HOLE |
