NSN 5935-00-112-3355 MS3100R2016SWC, MS3100R20-16SWC, MILC5015
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-112-3355 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3100R2016SWC, MS3100R20-16SWC, MILC5015, 5935-00-112-3355, 00-112-3355, 5935001123355, 001123355
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09-SEP-68 | 00-112-3355 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-112-3355
Cross Reference | NSN 5935-00-112-3355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M83723/19R2016W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC83723 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3100R20-16SWC | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3450W20-16SW | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-112-3355
Technical Data | NSN 5935-00-112-3355
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 12G STRAIGHT SHAPE, EXTERNAL COUPLING STRAIN RELIEF |
| OVERALL LENGTH | 2.348 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.156 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.156 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.750 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.625 INCHES |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 280.0 |
| MATING END QUANTITY | 1 |

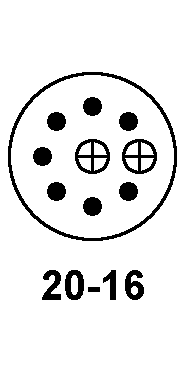

| CONTACT POSITION ARRANGEMENT STYLE | AKAD 20-16 SINGLE MATING END |
