NSN 5935-00-105-1808 WP9462548, WP94-62548, 9462548
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-105-1808 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: WP9462548, WP94-62548, 9462548, 94-62548, 5935-00-105-1808, 00-105-1808, 5935001051808, 001051808
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUL 1968 | 00-105-1808 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-105-1808
Demand History | NSN 5935-00-105-1808
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-105-1808 | 2014-04-92 | 8 | DIBBS |
| 5935-00-105-1808 | 2014-03-77 | 8 | DIBBS |
| 5935-00-105-1808 | 2013-07-190 | 8 | DIBBS |
| 5935-00-105-1808 | 2013-01-31 | 7 | DIBBS |
| 5935-00-105-1808 | 2012-09-272 | 1 | DIBBS |
| 5935-00-105-1808 | 2012-08-243 | 1 | DIBBS |
| 5935-00-105-1808 | 2012-03-90 | 1 | DIBBS |
| 5935-00-105-1808 | 2011-11-311 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-105-1808
Related Products | NSN 5935-00-105-1808
Technical Data | NSN 5935-00-105-1808
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.109 INCHES NOMINAL |
| OVERALL WIDTH | 1.734 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.250 INCHES NOMINAL |
| THREADED DEVICE TYPE | MOUNTING HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 40 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

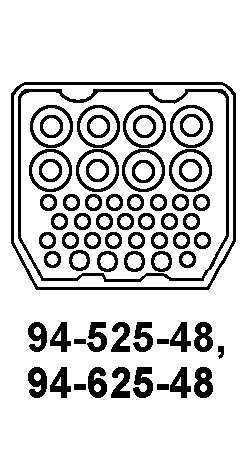

| CONTACT POSITION ARRANGEMENT STYLE | BPAD 94-525-48,94-625-48 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END 1ST CONTACT GROUPING 8 SINGLE MATING END 2ND CONTACT GROUPING 25 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING ROUND PIN SINGLE MATING END 2ND CONTACT GROUPING COAXIAL PIN SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 20.0 SINGLE MATING END 1ST CONTACT GROUPING 7.5 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END 1ST CONTACT GROUPING 600.0 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.037 GOLD GRAINS, TROY AND 0.037 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACRS GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 50738 |
| DESIGN CONTROL REFERENCE | WP94-62548 |
Restrictions/Controls & Freight Information | NSN 5935-00-105-1808
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-105-1808
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
